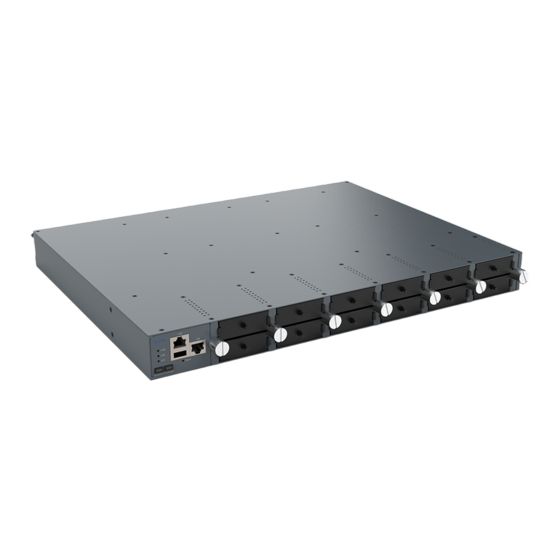

CTS MCT-RACK-12-MGM User Manual

MCT-RACK-12-MGM
12 SLOTS COMPACT MANAGEMENT
MEDIA CONVERTER CHASSIS
User's Guide
Version 2.0
Trademarks
CTS is a registered trademark of Connection Technology Systems Inc. Contents subject to
revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright  Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in part, in any way whatsoever unless
prior consent has been obtained from Connection Technology Systems Inc.
FCC Warning
The MCT-RACK-12-MGM media converter chassis have been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These standards
are designed to provide reasonable protection against harmful interference when these devices
are operated in a commercial environment. These devices generate, use, and can radiate radio
frequency energy and may cause harmful interference to radio communications unless installed
in accordance with this User's Guide. Operation of these devices in a residential area is likely
to cause harmful interference which will make the user responsible for the appropriate remedial
action at his / her own expense.
CE Mark Warning
These are Class A products. In a domestic environment these products may cause radio
interference in which case the user will need to consider adequate preventative methods.
1.
Checklist
The item listed below should be included in the package:

1 x MCT-RACK-12-MGM

1 x AC Power Cord (only for -1A model)
2 x AC Power Cord (only for -2A model)

4 x Screws

4 x Rubber Foot

1 x RJ-45 Cable for pulling media converter (150mm)

1 x Console Cable

2 x Cover Plate for Power Slot
Please contact your sales representative immediately if any items are missing or damaged.
2.
Appearance

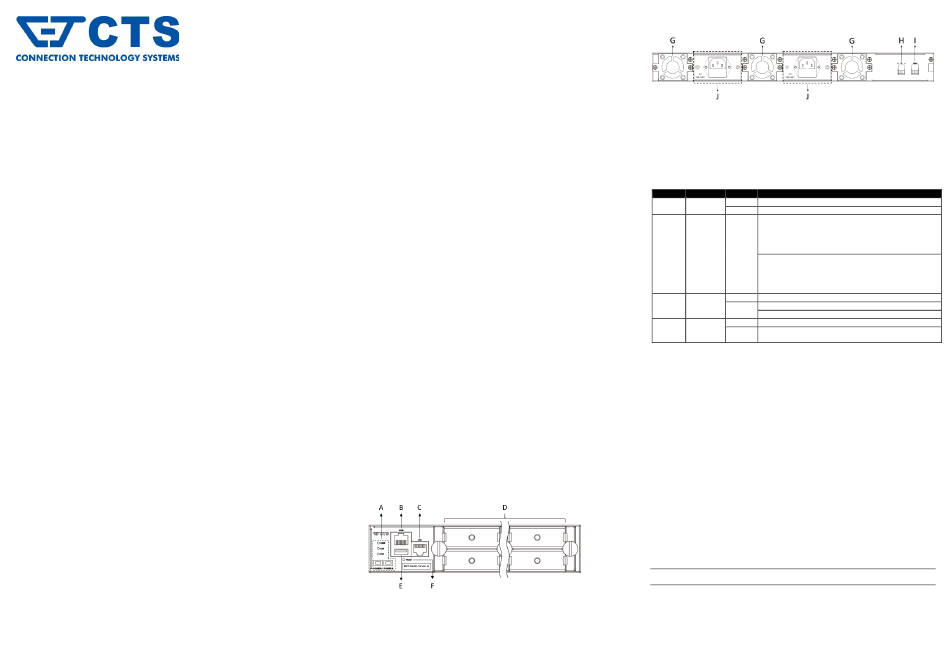

2.1 Front Panel
A. LED indicators
B. Console RS232 port (RJ-45)
C. 10/100Mbps RJ-45 LAN port
D. 12 x Media converter slots
E. USB host
F. Reset button
2.2 Rear Panel
G. Smart Fan
H. Digital Input Terminal Block (Dry contact)
I. Digital Output Terminal Block
J. Slot for AC/DC power module
2.3 LED Definitions
Chassis LED
LED Definition Color
Power A Power Off The power is currently unavailable
Power B Status Green The power is currently available.
Light on when the device is currently booting up, or the
device is currently upgrading.
*To restart the system, press the Reset button for more than
5 seconds until the LED light has turned into orange, then
System release.
STA Orange
Status Blinks when the device is resetting to default settings.
*To restore the device to its factory default settings, press
and hold the Reset button for over 10 seconds until the LED
starts blinking. Then, release the button, and the device will
restart with the default settings.
Off No link is established.
LAN Port
LAN Light on when a 10Mbps or 100Mbps link is established.
Status Green
Blinks when the port is transmitting data packet.
Console Off No link is established.
COM Port
Green Light on when the console port link is established.
Status
MCT Series Media Converter LED
Please refer to the User's Manual that comes with the MCT Series Media Converters for LED
indications.
3.
Installation
Basic Requirements

Environmental conditions
- One power outlet for MCT-RACK-12-MGM internal power supply
- One power outlet for Redundant Power Supply
- Proper ventilation
- Proper isolation to electrical noise, radio, etc.
- RJ-45 cables should not run in the same duct with power and phone line cables.

Required MCT series media converters

Required Fiber and RJ-45 cables

Redundant Power Supply

Rack mounting tools
CAUTION!
To prevent any damage or failure of the MCT-RACK-12-MGM, please DO NOT block the ventilation holes.
Operation
