CTS MCT-RACK-18 Installation Manual

Installation Guide

Version 0.91

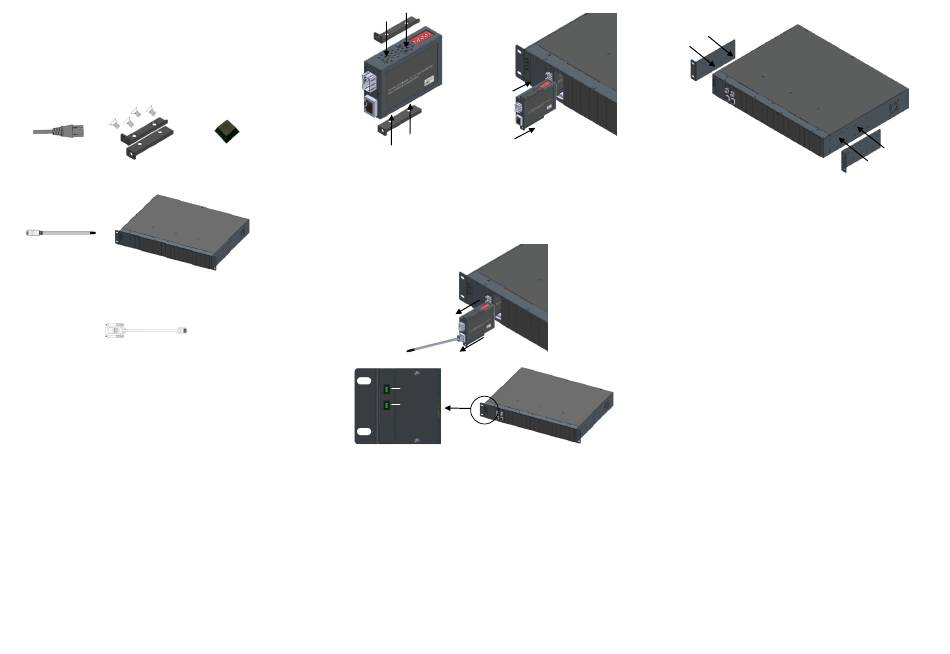

1. Package Contents

Power Cord Slider Set x 20
Pulling Cable x 1 Chassis x 1
Console Cable x 1(For Management Model Only)

2. Installation

Note: Please wear a grounding device and observe electrostatic discharge precautions before
install into the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS.
2.1 Install GIGABIT/FAST ETHERNET MEDIA CONVERTER
Slide-In Modules
1. Plan the GIGABIT/FAST ETHERNET MEDIA CONVERTER Slide-In Module slot positions
2. Remove the cover plate from selected installation slot
3. Insert GIGABIT/FAST ETHERNET MEDIA CONVERTER Slide-In Module carefully and firmly
into the selected slot
4. Fix the fastener screw.
5. Repeat steps 2 to 4 for all the GIGABIT/FAST ETHERNET MEDIA CONVERTER Slide-In
Rubber Foot x 4
Module.
6. You may connect the supplied pulling cable with a media converter to pull it out more
easily.
For Management model, please refer to User's Manual that comes with the Chassis for panel
overview.

2.2 Install 18 SLOTS MEDIA CONVERTER CENTER CHASSIS

Note: Do not block the bottom of the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS.

2.2.1 Standard Rack Installation

1. Plan the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS rack position
2. Fix both mounting brackets into the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS
Power A
Power B
Non-Management Model
3. Align the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS with mounting bracket into the
selected mounting rail position
4. Fix the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS with mounting brackets into the
selected mounting rails position carefully and firmly.

2.2.2 Desk Top Installation

1. Plan the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS desk top position
2. Place the 18 SLOTS MEDIA CONVERTER CENTER CHASSIS on a well ventilated, flat and firmly
desk.
2.3 Connect GIGABIT/FAST ETHERNET MEDIA CONVERTER
slide-in modules to network
Please refer to the User's Guide that comes with the GIGABIT/FAST ETHERNET MEDIA
CONVERTER slide-in modules for cabling specifications and direction.
