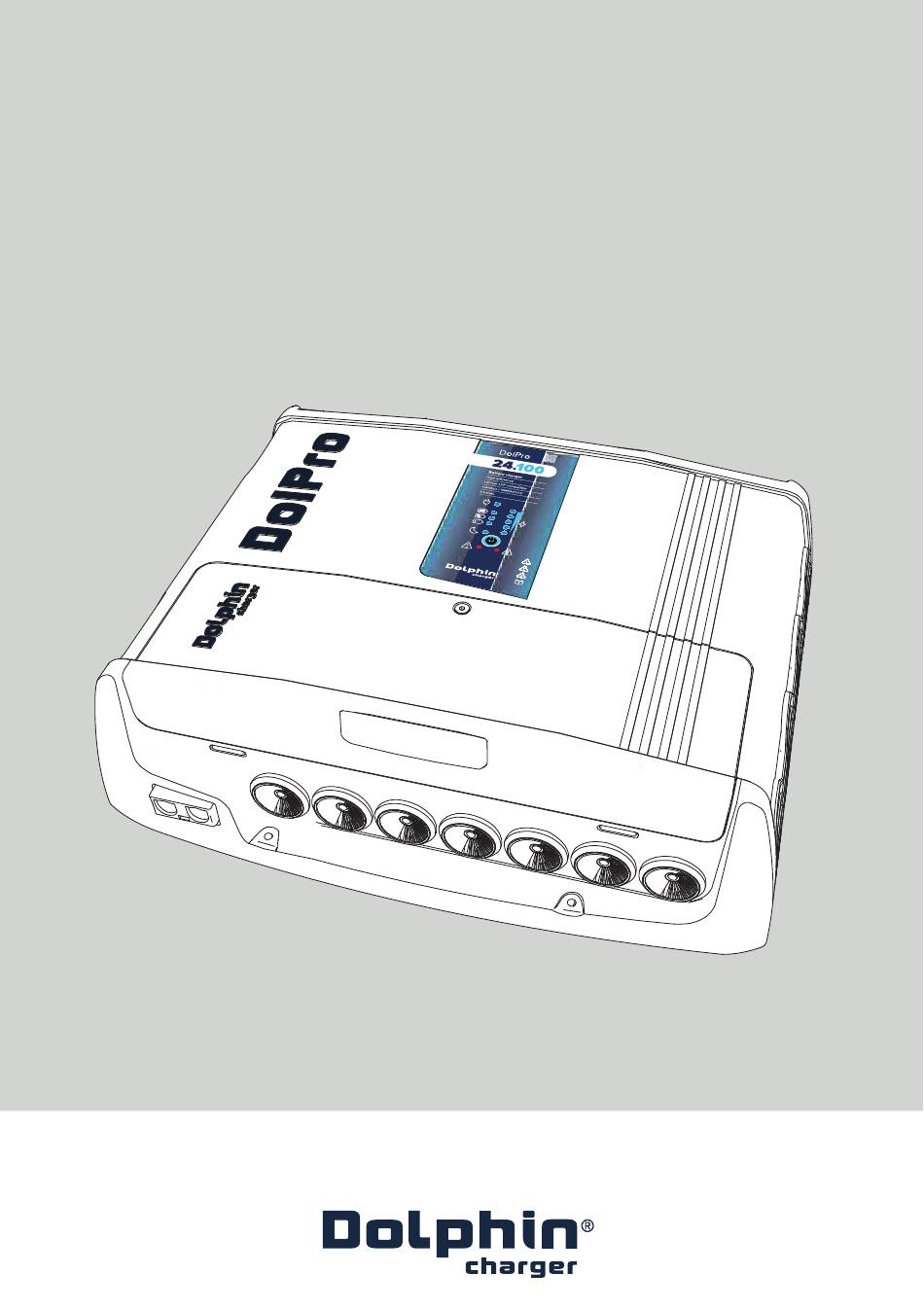

- Page 1 INSTALLATION AND USER MANUAL MANUEL D’INSTALLATION ET D’UTILISATION MANUALE DI INSTALLAZIONE ED USO GUÍA DE INSTALACIÓN Y USO DolPro evo 12V90A 24V40A 24V60A 24V100A 399454 399474 399464 399484...
-
Page 3: Table Of Contents
CONTENTS General safety instructions PRODUCT PRESENTATION Dimensions Package contents INSTALLATION Mounting the product Connection Settings OPERATING Closing the removable flap Commissioning Technical specifications Troubleshooting Warranties NOT_PROEVO3-00... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS This manual contains vital and essential information for preventing electric shocks, overloads or irreversible damage to the equipment. The owner must read and understand this document before using the product. This device is not intended for use by persons (including children) with physical, sensory or mental disabilities, or by persons without the relevant experience or knowledge, unless they receive appropriate supervision, or preliminary instructions on how to use it, from an individual responsible for their safety. - Page 5 INSTALLATION ATTENTION • Do not expose the battery charger to rain or snow. • Do not use the battery charger if it has sustained a heavy impact, been dropped, has cracks or openings in the casing, or is damaged in any other way. •...
- Page 6 CONNECTION PRECAUTIONS The 12V90A, 24V40A and 24V60A models are designed for connection to single-phase 230V 50 Hz or 115V 60 Hz networks. The 115V / 230V selection is automatic. The 24V100A model is designed for connection to a single-phase 230V 50/60 Hz network only.
- Page 7 MAINTENANCE This product cannot be dismantled, and the electronics board is inaccessible. Incorrect handling or reassembly may result in a risk of electric shock or fire, and invalidate the device's warranty. BATTERY PRECAUTIONS DANGER • Disconnect the power supply before servicing, cleaning or working on circuits connected to the battery charger.
-
Page 8: Product Presentation
Product presentation Designation Charging profile rotary switch Setting dipswitch AC power supply connector External grounding lug Dry contact connector Control input connector CAN connectors Common battery stud (NEG) Battery studs (POS) Grommets Battery fuses On/Off button Display LEDs Wiring compartment cover Cover fastening screws Mains connector Battery lugs (not supplied) -
Page 9: Dimensions
DIMENSIONS PACKAGE CONTENTS Charger. Mains connector for assembly (power supply cable not provided). Battery temperature sensor. Installation manual. VERIFICATION Check the product identification label, affixed on one side of the product, to ensure that the stated technical data actually meet your needs (mains power supply voltage, charger rating, etc.). -
Page 10: Installation
Installation MOUNTING THE PRODUCT The battery charger is designed to be permanently installed on a vertical support. 4 mN max. ATTENTION Use Ø 4 mm screws and washers suitable for the support. To allow the product to cool properly, a clearance of at least 10 cm / 3 inches must be left around the product. -
Page 11: Connection
CONNECTION FITTING THE MAINS POWER SUPPLY CONNECTOR The mains power supply connector is supplied without a cable. Choose a cable suitable for the product and insert it into the connector, following the steps described below. After fitting, check the quality and tightness of the connections. An HO7RNF industrial cable is preferable for the mains power supply, as per the recommendations below: Charger rating... - Page 12 AC CIRCUIT BREAKER In order to protect personnel, particularly in case of electric shocks, the AC mains power supply line must be equipped with a protective differential disconnector. The circuit breaker must have a sensitivity of 30mA, and a current rating consistent with the charger's consumption.
- Page 13 These chargers are equipped with automatically opening sealed grommets. You need only press on the central part of the membrane to allow the cable to pass through the grommet. Remove the nuts from the terminals to be used and, after placing the lugs in their respective positions, screw the nuts on tightly.
- Page 14 DC FUSES When the charger's internal fuses undergo maintenance, they must be replaced by fuses with strictly identical characteristics and perfor- mance. Risk of irreversible damage to the equipment. A fuse must be installed as close as possible to each positive feeder on the battery side to protect the connections, particularly in case of a short-circuit and/or overheating in the battery cables, for instance due to damage to the protective sheaths.
- Page 15 Control inputs 3 inputs, 2 terminals per input 30V 0.5A max. 1 mm² max. Closed: charger off ON/OFF (external dry contact) Open: charger on Closed: external fault, charger off (external dry contact) Open: charger on TEMP 24V model:-30mV/°C (KIT.12144 from 25°C temperature and 12V model: -15mV/°C compensation...
-
Page 16: Settings
SETTINGS CHARGING PROFILE SELECTION The RISC microcontroller-based up-to-date digital electronics monitor the charging process, using the exclusive "charge scanning" function to optimise the voltage, current and charging time parameters, according to the initial battery charge status. CHARGING PROCESS PHASE V. BOOST 14.4V 28.8V Open Lead... - Page 17 V. BOOST 14.7V 29.4V Odyssey AGM V. FLOAT 13.6V 27.2V V. BOOST 14.4V 28.8V GEL & AGM V. FLOAT 13.8V 27.6V Charging curve Single stage lead V. FLOAT 13.6V 27.2V Single stage lithium V. FLOAT 14.4V 28.8V Charging curve 3-Stage lithium V.
- Page 18 CONFIGURATION The charger configuration is managed via the DIPswitch, with 6 selectors. function State ON: 120 connected CAN termination 120 OFF:120 disconnected ON: DEF active if input at 0 External fault input OFF:DEF active if input NC ON: 1 OFF:0 Charger ID if connected to network ON: 1...
-
Page 19: Operating
Operating CLOSING THE WIRING COMPARTMENT Once the settings have been finalised, the wiring compartment must be closed using a screwdriver to avoid any risk of accident. COMMISSIONING Push the connector firmly into the battery charger until you hear a "click". Engage the power supply circuit breaker: the charger will start its battery charging cycle. - Page 20 LED DISPLAY Display modes and scenarios FLOAT EQUAL STBY (LED) STBY (PB) FUNCTION LED STATUS Continuous if mains power is present. AC mains Blinking in case of undervoltage or overvoltage. Continuous in this mode, charging cycle completed, batteries FLOAT FLOATING mode charged.
- Page 21 FUSE DEF Continuous in case of an internal temperature fault (charger) or external fault (batteries). Blinking in case of an AC and/or DC overvoltage / undervoltage fault. • In case of a fault, check: TEMPERATURE – The mains voltage. and VOLTAGE –...
- Page 22 BATTERY TEMPERATURE SENSOR The temperature sensor enables charging voltage correction in line with the battery temperature. This helps increase the battery life, especially when there is a high ambient temperature in the battery room. This sensor is screwed onto the positive terminal of the main battery (usually the house battery).
-
Page 23: Technical Specifications
TECHNICAL SPECIFICATIONS 12V 90A 24V 40A 24V 60A 24V 100A MAINS POWER SUPPLY CHARACTERISTICS Mains 100V-120V 60 Hz and/or 220-260V 50 Hz 220-260V 50 Hz voltage (+/-15%) (+/-15%) 0.95 @ Pmax Power factor Efficiency 92 % @ Pmax Active power 1450VA 1300VA 1950VA... -
Page 24: Troubleshooting
12V 90A 24V 40A 24V 60A 24V 100A GENERAL INFORMATION Operating -10°C to +55°C temperature Storage -20°C to +70°C temperature Humidity 90% max. (without condensation), tropicalised PCBs Convection Forced by variable-speed thermostatically-controlled fan Casing 360 x 284 x 122 mm dimensions Degree of IP22... -
Page 25: Warranties
WARRANTIES In order to prevent any risk arising from misuse of the device, please carefully read the list of possible situations or faults not covered by the warranty: Removing and/or modifying the casing. • Removing and/or modifying the power electronics board, resulting in product •... - Page 27 Dolphin Charger 2, Chemin de Branchy 74600 ANNECY France contact@dolphin-charger.com https://www.dolphin-charger.com...
