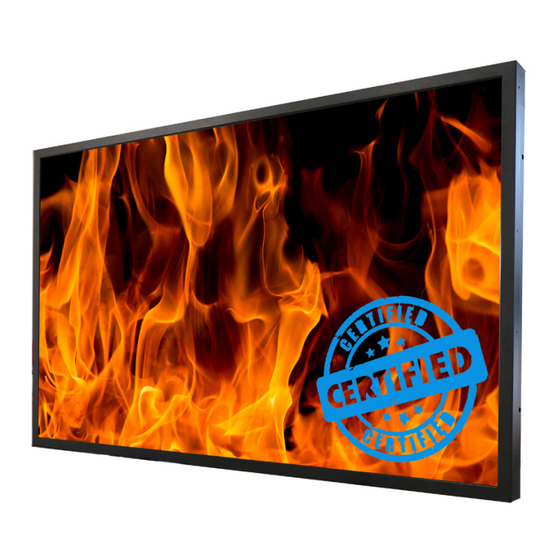

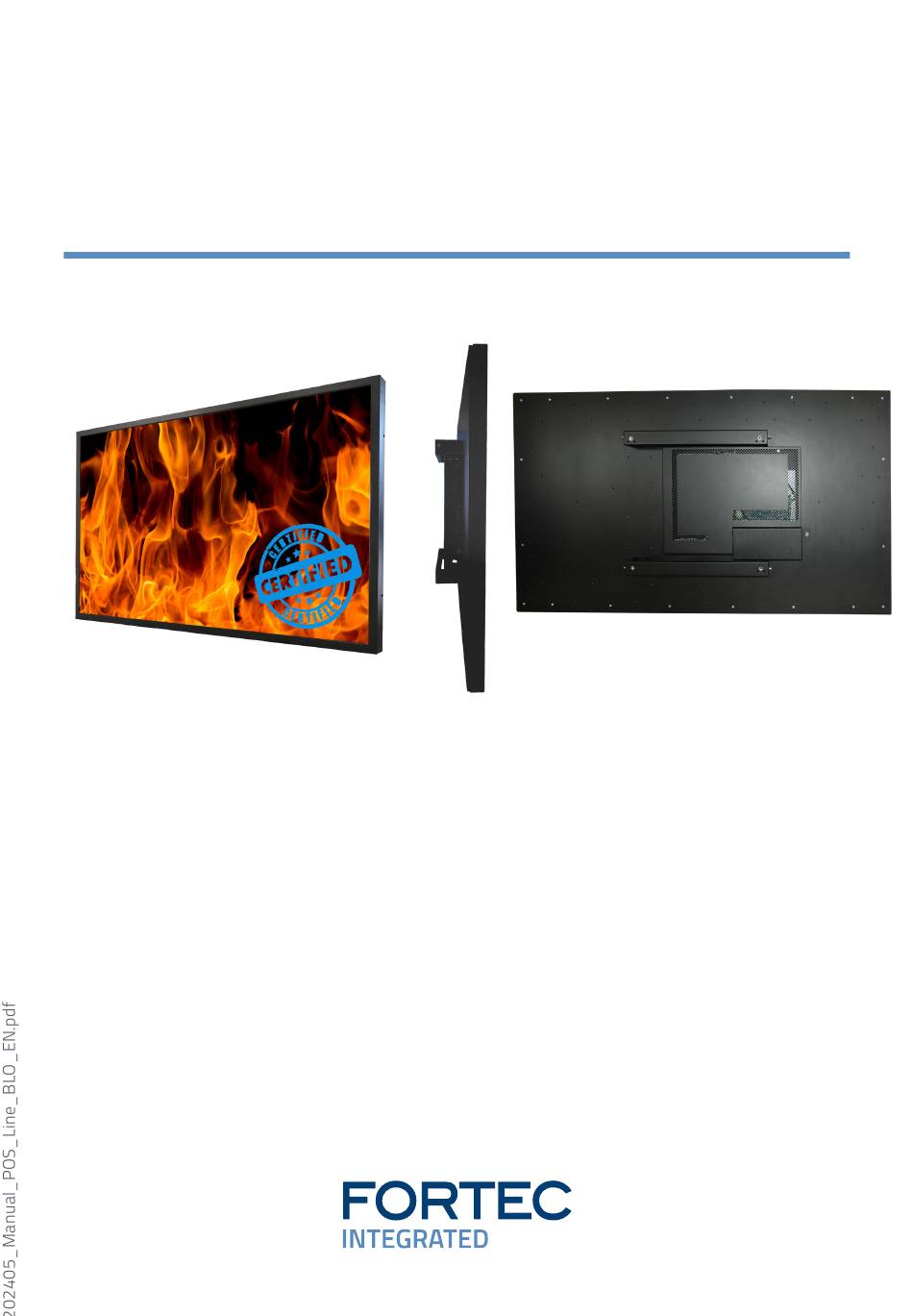

- Page 1 USER MANUAL POS-Line BLO Series POS-Line monitors from 80 cm (31.5“)
- Page 2 Copyright The contents of this manual are subject to change without notice. © 2024 FORTEC Integrated GmbH. All rights reserved. Reproduction of this manual in parts or entirely without the previous authorization of FORTEC Integrated GmbH is prohibited. FORTEC Integrated GmbH is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document.
-
Page 3: Table Of Contents
Table of Contents 1. General Specifications..............4 2. Scope of Delivery ................4 3. General Safety Regulations ............5 4. First Installation ................8 5. POS-Line Video PME BLO ............10 6. POS-Line IQ BLO ................18 7. Maintenance ..................21 8. Warranty / Service .................21 9. Disposal .....................23 10. -
Page 4: General Specifications
General Specifications General Specifications Scope of Document This user manual is valid for POS-Line FLO monitors from 80.0 cm (31.5”) up to 116.8 cm (46“). The POS- Line BLO monitors are offered in different screen sizes. All monitors are equipped with a special F30 fire protection glass and a temperature fuse for voltage-free switching from a certain temperature. -
Page 5: General Safety Regulations
General Safety Regulations General Safety Regulations Safety information Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction, immediately disconnect the power plug and contact your dealer or the next Data Display Group service centre. - Page 6 General Safety Regulations Safety guidelines for the handling of LCD monitors If the device is not used for a long period of time, unplug the power cable. Do not unplug the power cable while the device is powerd on, except for emergencies.
- Page 7 General Safety Regulations Ensure sufficient ventilation of the device. Keep a minimum distance of at least 10 mm devices to the wall, for devices with integrated PC of at least 40 mm. Ensure compliance with the operating temperature. Do not install the device in places where it is exposed to environmen- tal impacts such as rain or direct sunlight.
-
Page 8: First Installation
First Installation First Installation Position of connectors and controls All connectors for power and cables are located at the bottom of the back side of the display. Video signal cables and OSD keyboard (video series only) Power cable and on/off switch Mounting Distance to wall: devices without integrated PC: min.10 mm... - Page 9 First Installation Mounting holes for VESA compatible brackets Allowed tilt angle for mounting Attention! All monitors are to be mounted only with a tilt angle of 0°— -30°. monitor 0˚ to -30˚ tilt angle Connecting to power POS-Line displays require a voltage of 110V - 230V AC. Note: Install all data cables to external devices before connecting the display to power.
-
Page 10: Pos-Line Video Pme Blo
POS-Line Video PME BLO POS-Line Video PME BLO Connectors and OSD buttons of POS-Line Video PME BLO series OSD Keyboard On/O Button Power supply DisplayPort HDMI VGA (RGB) USB (remote OSD) Headphones USB (Touch) Connecting to a PC with VGA cable VGA (RGB) VGA (RGB) Connecting to a PC with HDMI-DVI cable... - Page 11 POS-Line Video PME BLO Connecting to a PC with HDMI cable HDMI HDMI Connecting to a PC with DisplayPort cable DisplayPort DisplayPort Connecting the Remote-OSD to a PC with USB cable USB (remote OSD)
- Page 12 POS-Line Video PME BLO Remote OSD control You can control the monitor remotely from an external computer. To do this, connect the monitor and com- puter as described above a USB cable. Please read the instructions for the remote control, which you can find on our homepage: https:/ /www.fortec-integrated.de/en/service/downloads/monitore-downloads/.
- Page 13 POS-Line Video PME BLO The green/red LEDs (single package) on the external keypad show the current status of the board: Color Meaning Remark Green Signal found Green blink Search signal Power safe mode LED off Monitor off OSD menu Image Menu Brightness: Panel brightness adjustment.
- Page 14 POS-Line Video PME BLO Display Menu Auto-adjust: Performs auto-adjustment on the VGA input image. Phase: This function is a slider to adjust the sampling phase of the analogue interface. For optimum image quality, input pixels should be sampled at the ideal sampling points.
- Page 15 POS-Line Video PME BLO Sound Menu Volume: Slider bar to adjust volume. Mute: Mutes audio. Output: Chooses between speakers and head- phone. Only one can be active at a time (Speakers are not available for POS-Line monitors). Output Sub Menu Speakers: Toggles speakers on/ off.
- Page 16 POS-Line Video PME BLO Input Sub Menu Display Port: Select display port as input signal. VGA: Select VGA as input signal. DVI/HDMI: Select DVI/ HDMI as input signal. Auto Scan: Enable/ disable input auto-scan. OSD Settings Sub Menu Timer: Sub menu for timer settings. Rotation: Sub menu for rotation settings.
- Page 17 POS-Line Video PME BLO Rotation Sub Menu Rotation: Rotates the OSD menu. Reset Sub Menu Reset: Performs factory reset. EDID Write Protect Sub Menu Write protect: EDID write protect on/ off.
-
Page 18: Pos-Line Iq Blo
POS-Line IQ BLO POS-Line IQ BLO Note: All the Celeron main board drivers you can find at: https:/ /www.fortec-integrated.de/en/service/ downloads/monitor-downloads/ Note: This POS-Line display is equipped with a battery. Please read the following note carefully: Unplug the power cable before exchanging the battery. There is a risk of explosion if the battery is not installed correctly. - Page 19 POS-Line IQ BLO Connecting to a network using a patch cable Connecting to a PC using a cross-over cable Connecting keyboard and mouse with USB cable Connecting an external monitor with HDMI cable HDMI HDMI...
- Page 20 POS-Line IQ BLO Connecting active speakers with audio cable Line-out Line-in Push-button Power on/off After applying the supply voltage, the PC starts automatically. When the power supply is connected, the PC is switched on or off with the push button. During operation, the PC is shut down by briefly pressing the push button.
-
Page 21: Maintenance
Maintenance Maintenance Systems with active cooling require cleaning of ventilation slots every 6 months. Systems with passive cooling must be cleaned every 12 months. Warranty / Service Warranty FORTEC GROUP grants a manufacturer‘s warranty of two years from the date of delivery. The rendering of warranty claims shall neither extend nor restart the warranty period. - Page 22 Warranty / Service Display Quality - Prevention of after image burn in effects After image burn-in means that an image or part of an image (i.e. logo) remains visible on the screen even if the image on the screen is changed. This should not occur if the LCD panel is operated in normal conditions with changing content.
-
Page 23: Disposal
Disposal Service addresses Great Britain Germany Apollo Corp. FORTEC Technology UK Ltd. FORTEC Integrated GmbH 87 Raynor Avenue, Unit 1 Osprey House, 1 Osprey Court, Werk KIndel Ronkonkoma NY 11779 Hinchingbrooke Business Park, Am Künkelhof 4 +1 63 15 80-43 60 Huntingdon, Cambridgeshire, 99820 Hörselberg-Hainich info@apollodisplays.com...
