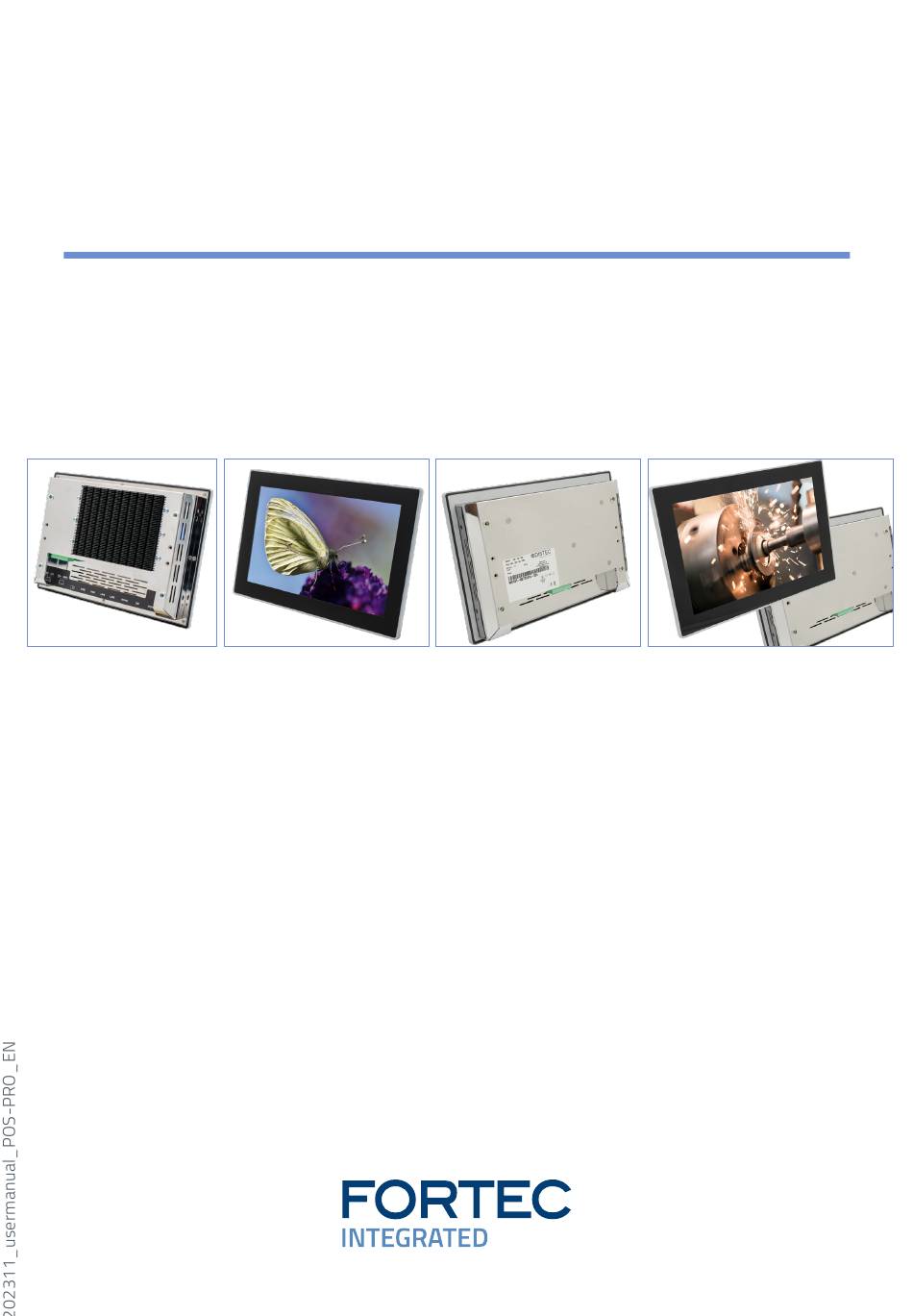

- Page 1 USER MANUAL POS-PRO series POS-PRO monitors from 17.8 cm (7“) up to 39.6 cm (15.6“)
- Page 2 Copyright The contents of this manual are subject to change without notice. © 2023 FORTEC Integrated. All rights reserved. Reproduction of this manual in parts or entirely without the previous authorization of FORTEC Integrated is prohibited. FORTEC Integrated is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document.
-
Page 3: Table Of Contents
Table of Content 1. General specification ...............4 2. Housing Variants ................5 3. Scope of delivery ................5 4. General Safety Regulations ............6 5. First Installation ................9 6. Touch Sensors .................12 7. Mounting optional installation frame ........13 8. POS-MO-PRO - PME II ..............14 9. -
Page 4: General Specification
General specification General specification Scope of Document These operating instructions valid POS-PRO monitors ximum screen diagonal 39.6 (15.6“). POS-PRO monitors availab- le in different screen diagonals, with different integrated controllers and additional options. Note: These operating instructions may be supplemented by other documents in which the operation of the various controllers is described in detail. -
Page 5: Housing Variants
Housing Variants Housing Variants POS-PRO monitors only differ visually on the back. An installation mounting frame is available as an ac- cessory for each diagonal. Examples of monitors with mounting frame: POS-MO-PRO POS-RP-PRO POS-VP-PRO POS-WPPRO POS-IQ-PRO Installation mounting frame can be ordered as accessories Scope of delivery When unpacking the monitor, please check if the following accessories are included in the shipment. -
Page 6: General Safety Regulations
General Safety Regulations General Safety Regulations Safety information Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction, immediately disconnect the power plug and contact your dealer or the next Distec GmbH service centre. - Page 7 General Safety Regulations Safety guidelines for the handling of LCD monitors If the device is not used for a long period of time, unplug the power cable. Do not unplug the power cable while the device is powerd on, except for emergencies.
- Page 8 General Safety Regulations Ensure sufficient ventilation of the device. Keep a minimum distance of at least 10 mm devices to the wall, for devices with integrated PC of at least 40 mm. Ensure compliance with the operating temperature. Do not install the device in places where it is exposed to environmen- tal impacts such as rain or direct sunlight.
-
Page 9: First Installation
First Installation First Installation Position of connectors and controls The connection elements for the power supply and data cable are located at the bottom on the back of the monitor. The POS-RP-PRO and POS-MO-PRO series have a keypad for the monitor settings. This keypad is located on the right on the back of the monitor. - Page 10 First Installation Mounting Distance to wall: • Devices without PC: min. 10 mm • Devices with PC: min. 40 mm oben A: 50 mm B: 50 mm C: 10 mm/ 40 mm C: 10 mm/ 40 mm Ansicht von oben D: 0 mm unten Seitenansicht...
- Page 11 25.2 V DC Series Input voltage Output voltage Output current Power Power supply for POS-PRO series (12V) 100-240 V AC 12V DC 60 Watt Power supply for POS-PRO series (24V) 100-240 V AC 24 V DC 72 Watt Connecting the power supply with optional power supply unit Note: Connect all data cables to the respective external devices before connecting the power supply to the monitor.
-
Page 12: Touch Sensors
First Installation Connecting the power supply to an existing power source Caution: POS-PRO monitors with an input voltage of 12V or 24V may only be operated with a current source of limited power (see standard EN 62368-1, chapter 2.5, table 2B „Current source limited line“ with max. -
Page 13: Mounting Optional Installation Frame
Mounting optional installation frame Mounting optional installation frame Note: POS-PRO monitors can be supplied with a suitable mounting frame from our accessories shop. Below you will find information on the mounting options. There are two basic options for mounting using the mounting frame: 1. -
Page 14: Pos-Mo-Pro - Pme Ii
POS-MO-PRO - PME II POS-MO-PRO - PME II Connections and OSD Button for POS-MO-PRO Connecting to PC with DisplayPort cable DisplayPort DisplayPort Connecting a touch to PC with USB cable (only for touch monitors) USB (Touch) - Page 15 POS-MO-PRO - PME II The OSD keyboard Die OSD-Funktionen des Monitors können Sie über die OSD-Tastatur steuern. Mit dem OSD-Menü können Sie die Signal-Eingangsquelle auswählen und viele andere Funktionen wie Bildschirmhelligkeit und Kont- rast einstellen The following two tables give you an overview of the functions: Direct function selection: Function Note...
- Page 16 POS-MO-PRO - PME II The red/green LED on the OSD keypad indicates the status of the monitor: Color Meaning Note Green Signal found Flashing green Search signal Power safe mode LED off Monitor off On Screen Menu (OSM) Menu brightness/ contrast: Brightness: Adjusts the brightness of the screen Contrast:...
- Page 17 POS-MO-PRO - PME II Menu display settings: Gamma: Activates or deactivates the gamma correction of the screen H.Position: Enables horizontal adjustment of the input image (only available for the analogue input ) V.Position: Enables the vertical adjustment of the input image (only available for the analogue input) Sharpness Allows you to adjust the sharpness of the input...
- Page 18 POS-MO-PRO - PME II Color format: Displays the selected colour format RGB or YUV colour format. Fw version: Displays the firmware version of the screen. Menu auto adjustment: Performs the automatic adjustment (only available for analogue inputs)
-
Page 19: Pos-Iq-Pro
POS-IQ-PRO POS-IQ-PRO Note: The complete driver package for the iBASE mainboard can be found at https:/ /www.distec.de/ en/service/downloads/monitor-downloads/ Note: The device is equipped with a battery. Please observe the following instructions: Disconnect the appliance from the power supply before replacing the battery. If the battery is not replaced correctly, there is a risk of explosion. - Page 20 POS-IQ-PRO Connecting to network with patch-cable Connecting to PC with cross-over network cable Connecting to keyboard and mouse via USB cable Connecting of a monitor with HDMI cable HDMI HDMI...
- Page 21 POS-IQ-PRO Connecting PC with DisplayPort cable DisplayPort DisplayPort Switching on and off The PC starts automatically when the supply voltage is applied. Calling up the BIOS settings The Integrated iBASE PC is equipped with a BIOS from American Megatrends Inc (AMI BIOS). When swit- ching on the PC, press the ‚DEL‘...
-
Page 22: Pos-Vp-Pro
POS-VP-PRO 10. POS-VP-PRO Note: Detailed information on the media player, the playlist structure, general operation and use as well as software components for setting up and programming can be found at: https:/ /www.distec. de/en/products/tft-components/tft-controller/iot-media-player/ Note: The device is equipped with a battery. Please note the following information: Disconnect the appliance from the power supply before replacing the battery. - Page 23 POS-VP-PRO Connecting USB stick Connecting active speakers Line-out Line-in Connecting an external player with HDMI cable HDMI HDMI Connecting an external player with HDMI-DVI cable HDMI...
- Page 24 POS-VP-PRO Configuration of the media player on delivery (factory configuration) This device is a LAN (Ethernet)-capable device. Please note that an incorrect network configuration of the device can impair the secure operation of the entire network and, in the worst case, lead to a network fai- lure.
- Page 25 POS-VP-PRO Priority-controlled external feed An external playback device, e.g. a BlueRay player, can be connected to the HDMI interface of the media player. The playback control can be set up so that playback of the playlist is stopped as soon as an HDMI signal is recognised.
- Page 26 POS-VP-PRO different log files for monitoring the respective subsystems: Player - shows the log file of the video player and error messages Updater - shows the log file of the content updates and error messages Setup Manager - shows which setup files have been executed Event Manager - displays error messages from the Event Manager Configuration Network configuration: Configuring the network is the first step in the setup process.
-
Page 27: Pos-Wp-Pro Webposter
POS-WP-PRO WebPoster 11. POS-WP-PRO WebPoster Connections and controls WebPosters are POS-RP-PRO devices with a special firmware, therefore the connections and operating elements in the corresponding section must be observed. Connecting a mouse and keyboard is not sup- ported with this firmware. General function description The Industrial Full HD HTML Player is a complete solution for displaying websites. - Page 28 POS-WP-PRO WebPoster The web interface is divided into three areas with the respective pages: Configuration Network configuration: Configuring the network is the first step in the setup process. Submit configuration: The entries are accepted with Submit Configuration. Discard changes: Discard Changes deletes entries in the fields. However, this has no effect on the current configuration.
-
Page 29: Pos-Rp-Pro
POS-RP-PRO 12. POS-RP-PRO The POS-RP-PRO monitor is equipped with the Raspberry® Pi Compute Module 3+ (CM3+). Its specificati- on can be found under the following link: https:/ /www.raspberrypi.org/products/compute-module-3-plus/ Note: The complete driver package for the POS-RP-PRO monitor can be found at https:/ /www.distec.de/ service/en/downloads/monitor-downloads/. - Page 30 POS-RP-PRO onnecting to PC with cross over network cable Connecting USB stick Connecting active speakers Line-out Line-in Connecting an external playback device with HDMI cable HDMI HDMI...
- Page 31 POS-RP-PRO Connecting an external playback device with HDMI-DVI cable HDMI Switch On or Off The POS-RP-PRO monitor starts automatically when the supply voltage is applied. To switch off, „Shut down“ must be selected in the operating system. Operation systems The POS-RP-PRO Monitor is supplied with the Raspbian operating system, which is equipped with all the necessary drivers.
-
Page 32: Maintenance
Maintenance 13. Maintenance For devices with active cooling, the ventilation slots of the housing must be cleaned every 6 months to en- sure sufficient air circulation. For devices with passive cooling, the ventilation slots must be checked every 12 months and cleaned if necessary. 14. - Page 33 Warranty / Service Display Quality - Prevention of after image burn in effects After image burn-in means that an image or part of an image (i.e. logo) remains visible on the screen even if the image on the screen is changed. This should not occur if the LCD panel is operated in normal conditions with changing content.
-
Page 34: Disposal (Eu)
Disposal (EU) Service addresses Germany Great Britain Display Technology Ltd. Apollo Corp. Distec GmbH 87 Raynor Avenue, Unit 1 Osprey House, 1 Sprey Court Augsburger Straße 2b Hichingbrooke Business Park Ronkonkoma NY 11779 82110 Germering Huntingdon, Cambridgeshire Tel +1 63 15 80-43 60 PE29 6FN Tel +44 14 80 41 16 00 Tel: +49 89 894363-0 Mail: info@displaytechnology. -
Page 35: Declaration Of Conformity
Declaration of Conformity 16. Declaration of Conformity Declaration Hereby the Distec GmbH declared that the unit EU is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU and 2011/65/EU. If you require a CE declaration of conformity, please request this from the support team on our website: https:/ /www.distec.de/en/service/technical-support/ FCC-Declaration of conformity This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant...
