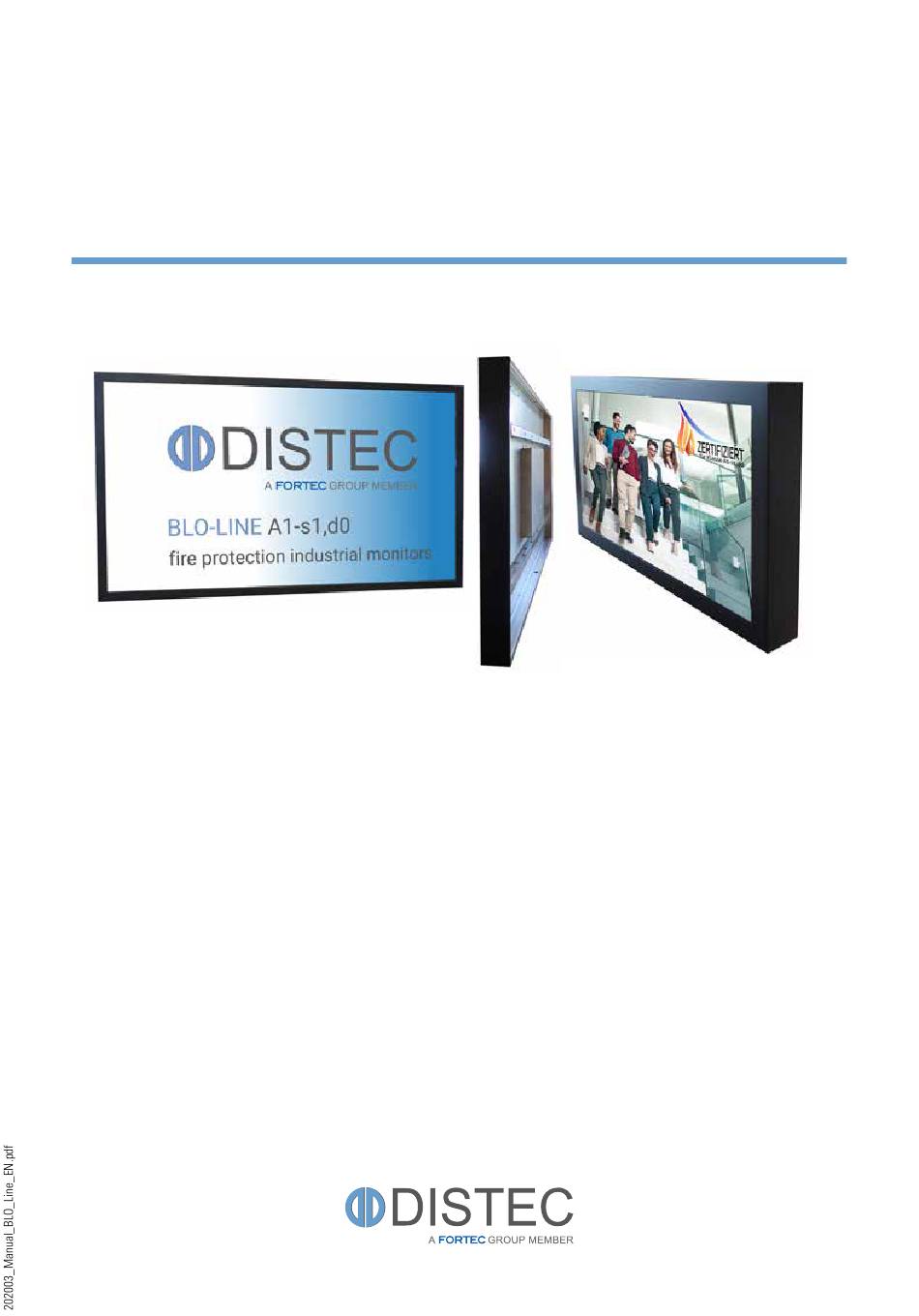

User Manual
BLO-Line series
BLO-Line monitors from 61.0 cm (24")

Advertisement

Table of Contents
loading

Related Manuals for Fortec Star DISTEC BLO-Line Series

Summary of Contents for Fortec Star DISTEC BLO-Line Series

  • Page 1 User Manual BLO-Line series BLO-Line monitors from 61.0 cm (24“)
  • Page 2 Copyright The contents of this manual are subject to change without notice. © 2020 Distec GmbH. All rights reserved. Reproduction of this manual in parts or entirely without the previous authorization of Distec GmbH is prohibited. Distec GmbH is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document. All product names mentioned in this document are trademarks or registered trademarks of their due owners.

  • Page 3: Table Of Contents

    Table of Contents 1. General Specifications ................4 Scope of Delivery ..................4 General Safety Regulations ............... 5 First Installation ..................8 Mounting monitors BLO 24“/ 31.5“/ 42“ ..........10 Mounting monitors BLO 46“/ 54.6“/ 65.4“ ..........13 BLO-Line Video PME ................. 17 BLO-Line IQ ....................

  • Page 4: General Specifications

    General Specifications General Specifications Scope of Document This user manual is valid for BLO-Line monitors from 61.0 cm (24”) up to 163.8 cm (64.5”). The BLO-Line monitors are offered in different screen sizes. All monitors are equipped with a special F30 fire protection glass and a temperature fuse for voltage-free switching from a certain temperature.

  • Page 5: General Safety Regulations

    General Safety Regulations General Safety Regulations Safety information Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction, immediately disconnect the power plug and contact your dealer or the next Data Display Group service cen- tre.
  • Page 6 General Safety Regulations Safety guidelines for the handling of LCD monitors • If the device is not used for a long period of time, unplug the power cable. • Do not unplug the power cable while the device is powerd on, except for emergencies. •...
  • Page 7 General Safety Regulations • Ensure compliance with the operating temperature. • Do not install the device in places where it is exposed to environmental impacts such as rain or direct sunlight. • Do not install the device in places where it is exposed to high humidity, dust or smoke. In case of doubt, please contact your sales partner.

  • Page 8: First Installation

    First Installation First Installation Position of connectors and controls All connectors for power and cables are located at the bottom of the back side of the display. Video signal cables and OSD keyboard (video series only) Power cable and on/off switch Mounting BLO-Line monitors are mounted on the wall mount supplied.
  • Page 9 First Installation Connecting to power BLO-Line displays require a voltage of 110V - 230V AC. The standard scope of delivery includes a special fire load and flue gas optimized power cable for connecting the power supply. Note: Install all data cables to external devices before connecting the display to power. •...

  • Page 10: Mounting Monitors Blo 24"/ 31.5"/ 42

    Mounting monitors BLO 24“/ 31.5“/ 42“ Mounting monitors BLO 24“/ 31.5“/ 42“ Front and back view of the monitor LANDSCAPE PORTRAIT 1. Remove the locking srews To mount the wall bracket, it must first be detached from the monitor. To do this, the correct screws must be removed - the locking screws.
  • Page 11 Mounting monitors BLO 24“/ 31.5“/ 42“ 2. Fold down the wall mount / slide the wall mount down / remove the wall mount Landscape Portrait 5. Install wall mount Landscape Portrait The monitor must first be atteched to the top The monitor must first be atteched to the top of wall of wall mount..
  • Page 12 Mounting monitors BLO 24“/ 31.5“/ 42“ 6. Hang the monitor in the wall mount and fold out the support Hang the monitor from above into the wall mount. Then fold out the support on the wall mount and hook it into the montior. Now all cables can be connected.

  • Page 13: Mounting Monitors Blo 46"/ 54.6"/ 65.4

    Mounting monitors BLO 46“/ 54.6“/ 65.4“ Mounting monitors BLO 46“/ 54.6“/ 65.4“ Front and back view of the monitor LANDSCAPE PORTRAIT 1. Remove the locking srews To mount the wall bracket, it must first be detached from the monitor. To do this, the correct screws must be removed - the locking screws.
  • Page 14 Mounting monitors BLO 46“/ 54.6“/ 65.4“ 2. Wandhalterung abklappen/ Wandhalterung nach unten schieben/ Wandhalterung abnehmen Landscape Portrait 5. Wandhalterung montieren Landscape Portrait Beim ersten Einhängen des Monitors wird dieser in den Beim ersten Einhängen des Monitors wird dieser ersten Haken eingehängt. in den ersten Haken eingehängt.
  • Page 15 Mounting monitors BLO 46“/ 54.6“/ 65.4“ 6. Fold down the wall mount / slide the wall mount down / remove the wall mount The carabiner of the steel cable must be properly hooked into the device provided on the wall mount. Only then will the monitor hang securely on the wall.
  • Page 16 Mounting monitors BLO 46“/ 54.6“/ 65.4“ 7. In the next step, the monitorat first is finally hooked into the wall mount. To do this, the monitor is folded against the wall and pus- hed up a little while at the same time being pressed against the wall. The monitor slips into the hooks provided on the wall mount. 8.

  • Page 17: Blo-Line Video Pme

    BLO-Line Video PME BLO-Line Video PME Connectors and OSD buttons of BLO-Line Video PME series OSD Keyboard On/O Button Power supply DisplayPort HDMI VGA (RGB) USB (remote OSD) Headphones USB (Touch) Attention: All connections to external devices must be made behind the wall. Connecting the Remote-OSD to a PC with USB cable USB (remote OSD)
  • Page 18 BLO-Line Video PME Remote OSD control To control the OSD menu of the display remotely from a PC, use a USB cable and connect the display to your PC as described above. Please read the handbook for the remote control carefully. Please see the instructions for the remote control you find in the enclosed DVD.
  • Page 19 BLO-Line Video PME The green/red LEDs (single package) on the external keypad show the current status of the board: Color Meaning Remark Green Signal found Green blink Search signal Power safe mode LED off Monitor off OSD menu Image Menu Brightness: Panel brightness adjustment.
  • Page 20 BLO-Line Video PME Display Menu Auto-adjust: Performs auto-adjustment on the VGA input image. Phase: This function is a slider to adjust the sampling phase of the analogue interface. For optimum image quality, input pixels should be sampled at the ideal sampling points.
  • Page 21 BLO-Line Video PME Sound Menu Volume: Slider bar to adjust volume. Mute: Mutes audio. Output: Chooses between speakers and headphone. Only one can be active at a time (Speakers are not avail- able for POS-Line monitors). Output Sub Menu Speakers: Toggles speakers on/ off.
  • Page 22 BLO-Line Video PME Input Sub Menu Display Port: Select display port as input signal. VGA: Select VGA as input signal. DVI/HDMI: Select DVI/ HDMI as input signal. Auto Scan: Enable/ disable input auto-scan. OSD Settings Sub Menu Timer: Sub menu for timer settings. Rotation: Sub menu for rotation settings.
  • Page 23 BLO-Line Video PME Rotation Sub Menu Rotation: Rotates the OSD menu. Reset Sub Menu Reset: Performs factory reset. EDID Write Protect Sub Menu Write protect: EDID write protect on/ off.

  • Page 24: Blo-Line Iq

    BLO-Line IQ BLO-Line IQ Note: The delivery includes a driver DVD with all Atom main board drivers! Note: This POS-Line display is equipped with a battery. Please read the following note carefully: • Unplug the power cable before exchanging the battery. •...
  • Page 25 BLO-Line IQ Attention: All connections to external devices must be made behind the wall. Connecting to a network using a patch cable Power on/off The PC starts automatically after the supply voltage is applied. When the power supply is connected, the PC is switched on or off with the touch switch.

  • Page 26: Blo-Line Videoposter

    BLO-Line VideoPoster BLO-Line VideoPoster Note: Further information on media player, play list structure, handling, utilization and supporting software modules are available at http://www.distec.de/en/tft-controller/industrial-mediaplayers/ Note: This display is equipped with a battery. Please read the following information carefully: • Unplug the power cable before exchanging the battery. •...
  • Page 27 BLO-Line VideoPoster Factory configuration at the time of delivery POS-Line VideoPoster is a network (Ethernet) device. Please note that inaccurate network configuration can have unintended influence on network operations and cause a breakdown of the entire network. To setup the device properly, you must be familiar with the basic operating parameters of your network.
  • Page 28 BLO-Line VideoPoster Connecting an external source with priority An external source like video player or sat receiver can be connected to the POS-Line VideoPoster via HDMI. If priority of the HDMI connector has been activated, the playback of the play list will stop as soon as a HDMI signal is detected. In this case, the HDMI signal is shown on the screen.
  • Page 29 BLO-Line VideoPoster Configuration Network Configuration: This page includes all entries for the network configuration. Click on „Submit Configuration“ to store the settings and change the configuration. Clicking on „Reset Configuration“ deletes all entries in the web page but does not change the configuration. Date and Time: Enter date, time and time zone.

  • Page 30: Blo-Line Iot

    BLO-Line IoT BLO-Line IoT The BLO-Line IoT monitor is equipped with the Raspberry Pi compute module 3 (CM3). The specification can be found under the ® following link: https://www.raspberrypi.org/products/compute-module-3/ Note: The full driver package for the IoT monitor can be found on the enclosed DVD. The device is equipped with a battery.
  • Page 31 BLO-Line IoT Switch on/ off After the supply voltage has been applied, the IoT monitor starts automatically. To switch off, you must select „Shut down“ in the operating system. Operating systems The IoT Monitor comes with the operating system Raspbian, which is equipped with all necessary drivers. This operating system is the official version of the community, reduced to the internal memory of the compute module.

  • Page 32: Webposter

    WebPoster WebPoster Connections and controls WebPoster are BLO-Line IQ devices with a special firmware, so the ports and operating in the „IQ BLO“ must be observed. Connecting a mouse and keyboard is not supported with this firmware. Functional description The Industrial HTML Full HD Player is a complete solution for viewing Web pages. The website can be configured via a web interface. At the start of the device is automatically display.

  • Page 33: Touch Sensors

    WebPoster Information System Information: This page contains all details about the system, such as, for example, the software version. If you contact our Support please add this page to your E-Mail to ensure a fast response. Restart Restart: Restart of the media player. Display of IP address and hostname When booting the HTML player‘s current IP address and the host name of the HTML player is displayed on the screen for about 5 seconds.

  • Page 34: Maintenance

    Maintenance Maintenance Systems with active cooling require cleaning of ventilation slots every 6 months. Systems with passive cooling must be cleaned every 12 months. Warranty / Service Warranty DIstec GmbH grants a manufacturer‘s warranty of two years from the date of delivery. The rendering of warranty claims shall neither extend nor restart the warranty period.
  • Page 35 Warranty / Service After image burn-in means that an image or part of an image (i.e. logo) remains visible on the screen even if the image on the screen is changed. This should not occur if the LCD panel is operated in normal conditions with changing content. To prevent burn-in effects please follow the following guidelines.

  • Page 36: Disposal

    Disposal Service addresses Germany Great Britain Distec GmbH - Werk KIndel Display Technology Ltd. Apollo Corp. Am Künkelhof 4 5 The Oaks Business Village 87 Raynor Avenue, Unit 1 99820 Hörselberg-Hainich Revenge Road, Lordswood Ronkonkoma NY 11779 T +49 3 69 20 71 62-0 Chatham, Kent, ME5 8LF T +1 63 15 80-43 60 B support@distec.de...
