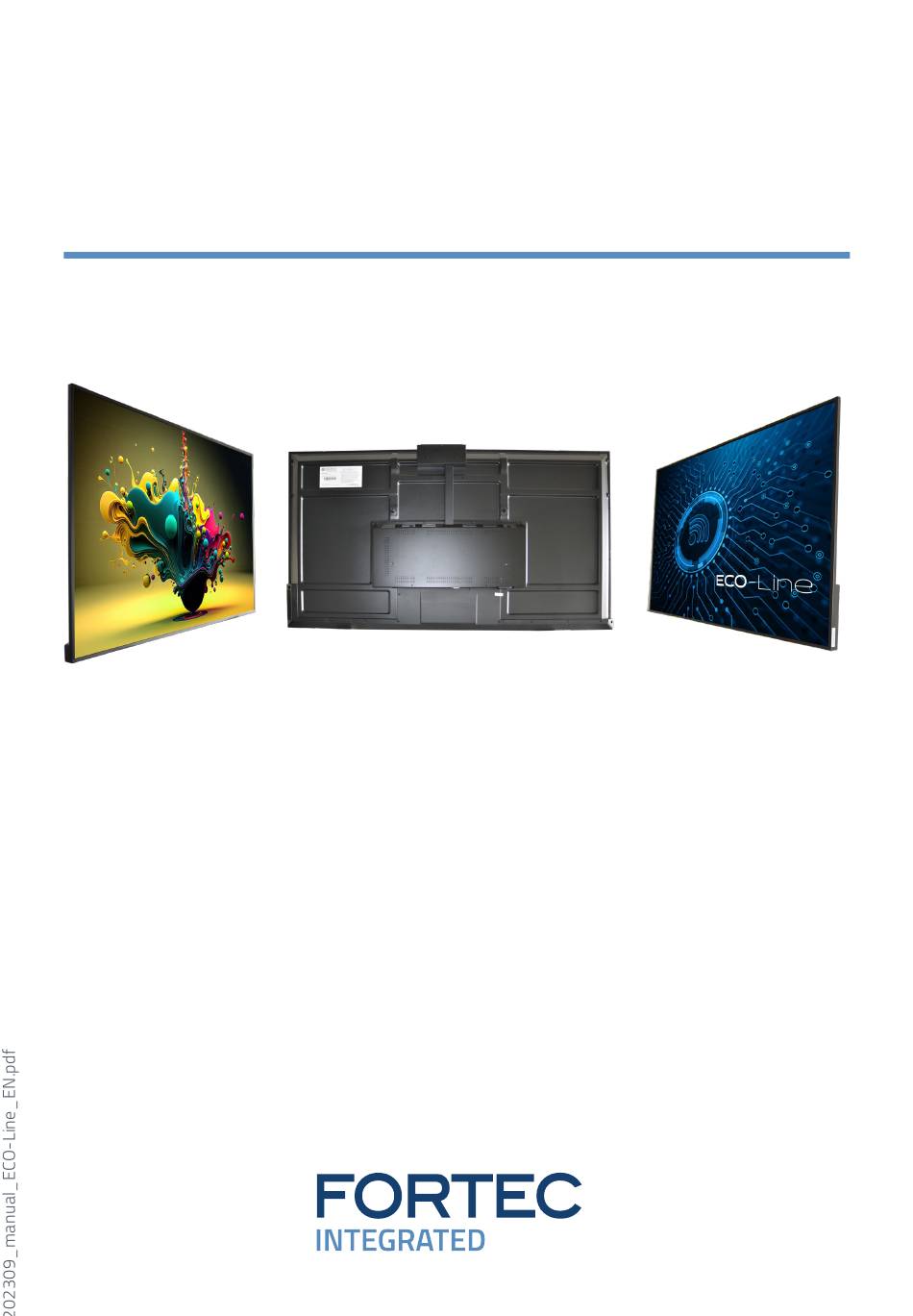

- Page 1 USER MANUAL ECO-Line series ECO-Line Monitors with 109.2 cm (43“) and 139.7 cm (55“)
- Page 2 Copyright The contents of this manual are subject to change without notice. © 2023 FORTEC Integrated. All rights reserved. Reproduction of this manual in parts or entirely without the previous authorization of FORTEC Integrated is prohibited. FORTEC Integrated is not liable for errors and collateral or subsequent damage which result from supply, deployment or any other utilisation of this document.
-
Page 3: Table Of Contents
Table of contents Table of contents ..................3 1. General specification ...............4 2. Scope of delivery ................4 3. General Safety Regulations ............5 4. First Installation ................8 5. ECO-Line monitor controller ............10 6. Maintenance ..................15 7. Warranty / Service .................15 8. Disposal ....................17 9. -
Page 4: General Specification
General specification General specification Scope of Document This user manual is valid for ECO-Line monitors by screen size of 109.2 cm (43“) and 139.7 cm (55“). . Please note the information Important note: This user manual is complemented by other additional documents on this. -
Page 5: General Safety Regulations
General Safety Regulations General Safety Regulations Safety information Please read this safety information carefully for your personal safety and for the prevention of property damage. In case of a malfunction, immediately disconnect the power plug and contact your dealer or the next Distec GmbH service centre. - Page 6 General Safety Regulations Safety guidelines for the handling of LCD monitors If the device is not used for a long period of time, unplug the power cable. Do not unplug the power cable while the device is powerd on, except for emergencies.
- Page 7 General Safety Regulations Ensure sufficient ventilation of the device. Keep a minimum distance of at least 10 mm devices to the wall, for devices with integrated PC of at least 40 mm. Ensure compliance with the operating temperature. Do not install the device in places where it is exposed to environmen- tal impacts such as rain or direct sunlight.
-
Page 8: First Installation
First Installation First Installation Position of connectors and controls All connectors for power and cables are located at the bottom of the back side of the display. Connection for power cable and on / off switch Data cable connectors, OSD menu buttons, Mounting Distance to wall: •... - Page 9 First Installation Allowed tilt angle for mounting Attention! All monitors are not allowed to be mounted with a tilt angle of 0°. Connecting to power The ECO-Line monitor requires an AC voltage of 100-240 V AC. The standard delivery includes a suitable power cable for connecting the power supply.
-
Page 10: Eco-Line Monitor Controller
ECO-Line monitor controller ECO-Line monitor controller ECO-Line monitors have the following connections and controls: 10 11 Description Function USB C Supports charging, data transfer, serves as an extension for audio and video output interface. Note: The maximum rated power of the USB Type-C connector of this product is 65W. When using this port to charge electronic devices, do not allow the charging power of the electronic device must not exceed the rated power of this port. - Page 11 ECO-Line monitor controller Connect to a projector with HDMI cable HDMI HDMI Connect to a PC or an external device via RS232 RS232 RS232 Connect to a network with a patch cable Connect to active speakers Line-out Line-in...
- Page 12 ECO-Line monitor controller Connect to keyboard and mouse via USB cable OSD controls Navigation in the OSD-menu Description Function Power indicator Indicates the status of the power supply . tap to turn on Energy saving: Press for at least 2 seconds to switch to stand-by mode Menu Settings pop-up menu Input...
- Page 13 ECO-Line monitor controller Remote control instructions Beschreibung Funktion Power on/ off Enter to exit mute mode Start Windows key of PCs Space Space key of PCs Alt+Tab Alt+Tab key of PCs ALt+F4 Alt+F4 key of PCs Numeric keys numeric input Display Display channel information ...
- Page 14 ECO-Line monitor controller Insert batteries 1) Open the back cover of the battery component on the back of the remote control. 2) Insert a AAA battery according to the corresponding electrode, make sure that the positive and negative poles of the battery are correct („+“ to „+“, „-“ to „-“), please do not old and mix new batteries. 3) After inserting the battery, close the back cover of the battery compartment and attach the clip at the bottom.
-
Page 15: Maintenance
Maintenance Maintenance Systems with active cooling require cleaning of ventilation slots every 6 months. Systems with passive cooling must be cleaned every 12 months. Warranty / Service Warranty FORTEC Integrated grants a manufacturer‘s warranty of two years from the date of delivery. The rendering of warranty claims shall neither extend nor restart the warranty period. - Page 16 Warranty / Service Display Quality - Prevention of after image burn in effects After image burn-in means that an image or part of an image (i.e. logo) remains visible on the screen even if the image on the screen is changed. This should not occur if the LCD panel is operated in normal conditions with changing content.
-
Page 17: Disposal
Disposal Service addresses Germany Great Britain Display Technology Ltd. Distec GmbH - Werk Kindel Apollo Corp. Osprey House, 1 Sprey Court Am Künkelhof 4 87 Raynor Avenue, Unit 1 99820 Hörselberg-Hainich Hichingbrooke Business Park Ronkonkoma NY 11779 T +49 36920 7162-0 T +1 631 580-4360 Huntingdon, Cambridgeshire B support@distec.de... -
Page 18: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity Declaration Hereby the Distec GmbH declared that the unit EU is in compliance with the essential requirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU and 2011/65/EU. The CE declaration of conformity can be found in English at the website of Distec: https:/ /www.distec.de/ en/service/downloads/monitor-downloads/.
