CV200 Dash Camera User Manual

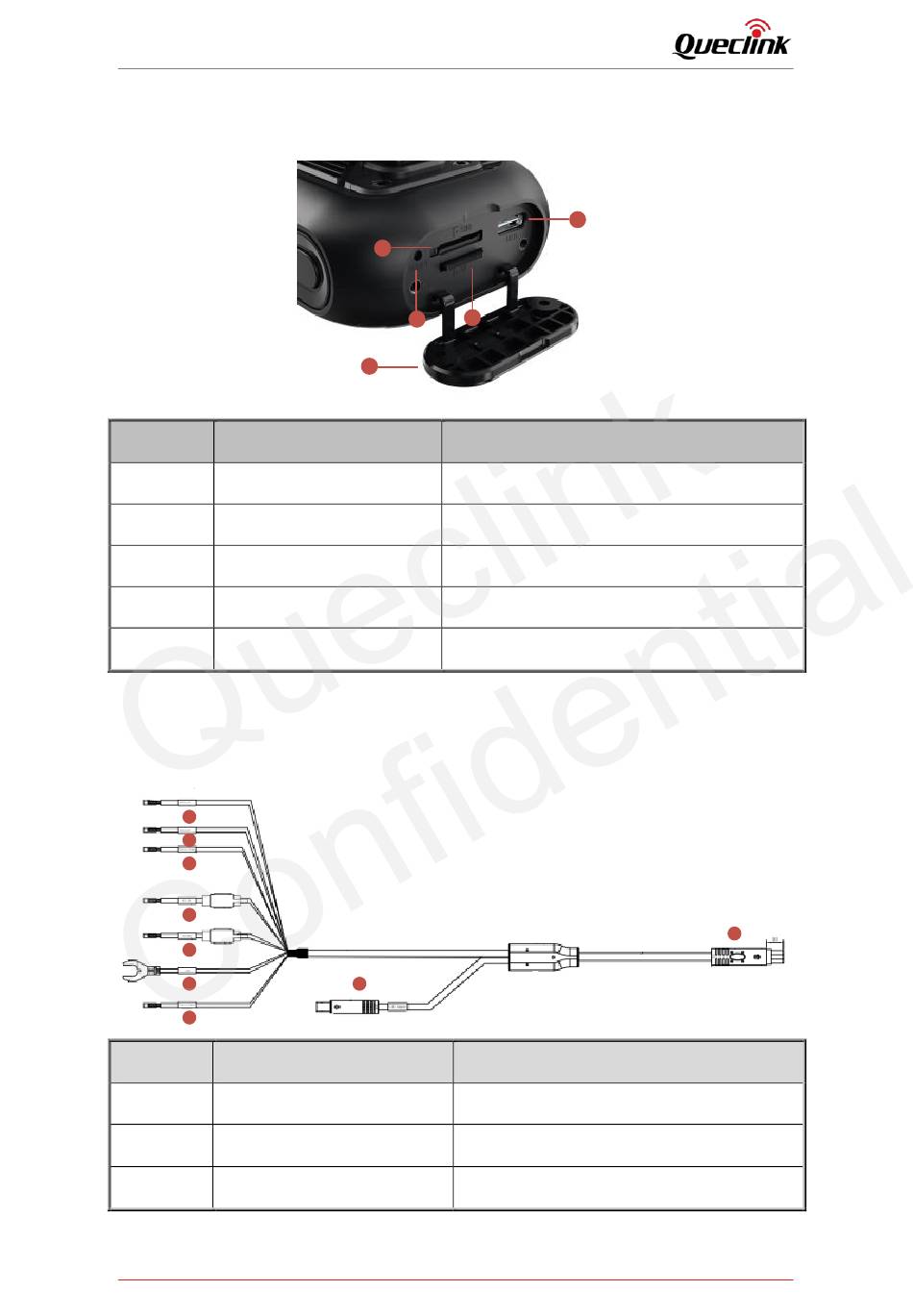

2.5. Interface view
Number
Definition
1
Tamper-Resistant Cover
2
USB-C Slot
3
TF Card Slot
4
SIM Card Slot
5
Reboot Button
2.6. Function cable
The products supply the hardwired connection with your vehicle, please plug the proper cables
as the descriptions.
1
2
3
4
5
6
7
Number
Definition
1
RS232_TX (Blue_White)
RS232_RX (Blue_Black)
2
3
Digital_Output (Yellow_White)
4
3
5
1
Feature
Prevent the SIM & TF cards from theft
For debugging and data communication
For TF card
For nano SIM
Click to reboot the device
Length = 4000mm
8
Feature
Serial Communication for peripheral devices
Serial Communication for peripheral devices
Open drain, software-defined feature
2
9
6
