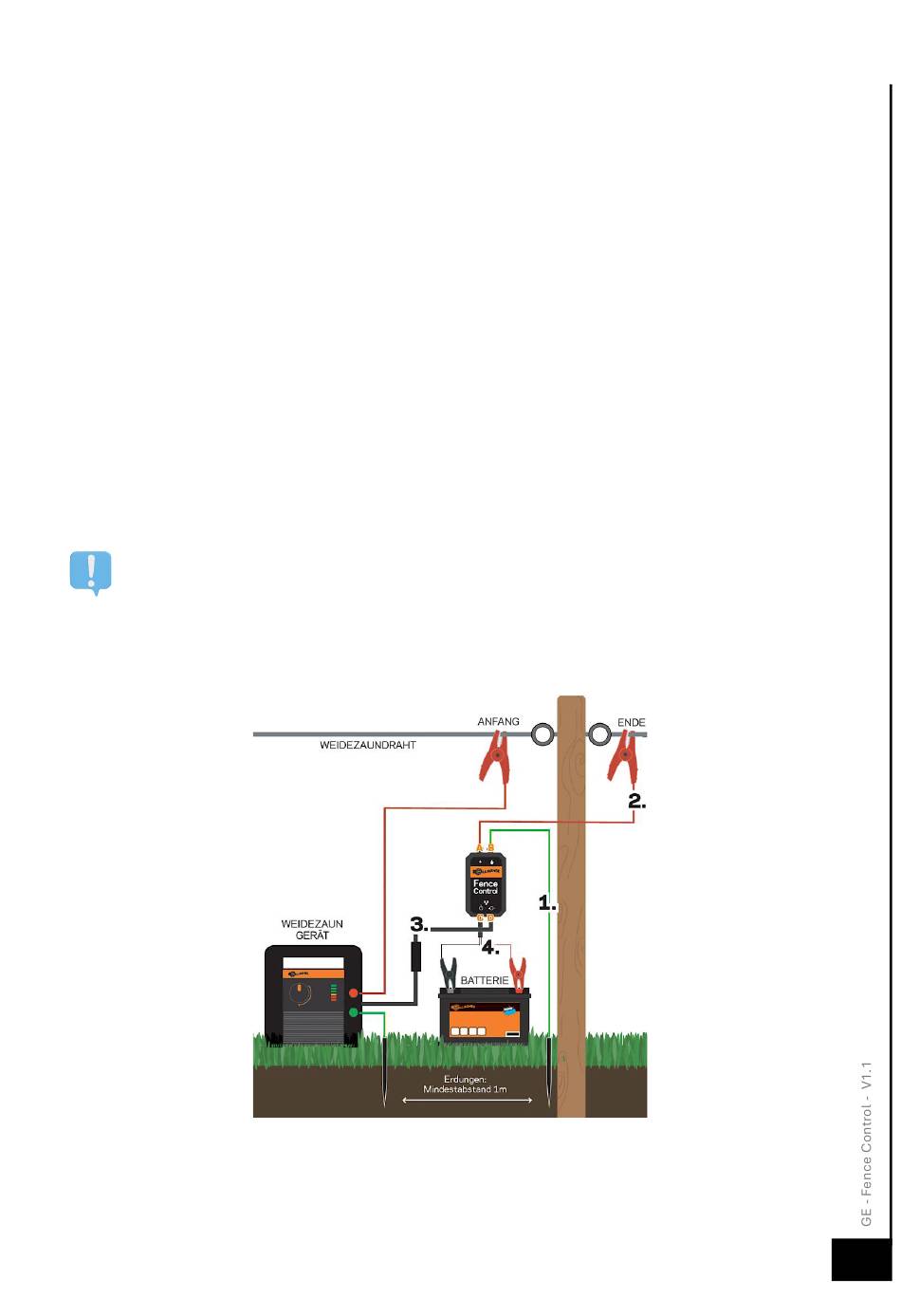

Operation with a 9V to 12V energizer
1. Earthing wire - earthing pin
Connect to the earth terminal of the Fence control (B).
Insert the earthing pin firmly into the ground at least one metre away from the earthing of
the energizer. Make sure the ground is sufficiently moist.
(earth pin not included)
2. Connection cable with crocodile clip
Connect to the measurement terminal (A) of the Fence Control.
Clamp alligator clip on fence.
3. Connection cable energizer
Connect to the connection for the Fence Control energizer (D).
Connect the plug to the 12V input of the Gallagher MultiPower energizer or use the adapter
cable to connect the 12V connector cable to another type of 12V energizer.
4. Battery connection cable
Connect to the power connector of the Fence Control (C).
Connect the terminals to the battery (red: positive terminal, black: negative terminal).
Ensure soil moisture
If the earth into which the earthing pins are inserted is too dry, the fence voltage cannot build
up and the Fence Control cannot measure the fence voltage correctly.
5
