Summary of Contents for Gallagher HBUS 16 In 16 Out Board
- Page 1 Gallagher HBUS 16 In 16 Out Board Installation Note Gallagher HBUS 16 In 16 Out Board: C300688 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 1...
- Page 2 Although every commercially reasonable effort has been taken to ensure the quality and accuracy of the information, Gallagher Group makes no representation as to its accuracy or completeness and it should not be relied on as such. To the extent permitted by law, all express or implied, or other representations or warranties in relation to the information are expressly excluded.
-
Page 3: Table Of Contents
HBUS LED Diagnostic Indications ......................9 Technical Specifications ........................10 Approvals and Compliance Standards ....................11 Mounting Dimensions ........................12 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 3... -
Page 4: Introduction

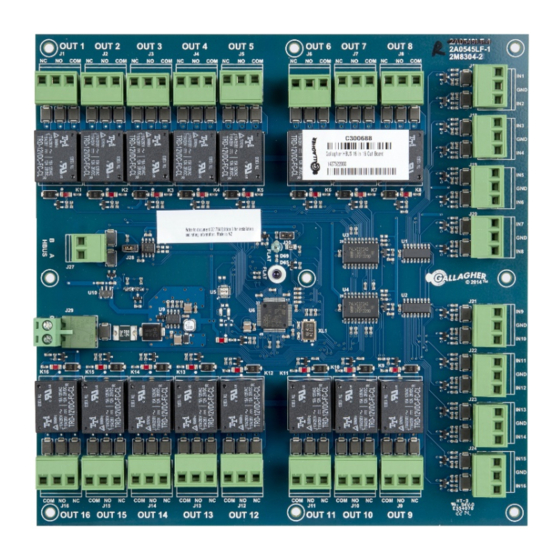

16 outputs. The HBUS 16 In 16 Out Board is supplied as a single circuit board, designed to fit into a Gallagher Cabinet. It is designed to connect to a Controller 6000. The blue coloured PCB signifies HBUS for ease of identification. -
Page 5: Building Cabling
The start and end devices on an HBUS circuit should be terminated using 120 ohm resistance. If the HBUS 16 In 16 Out Board is the start or end device on an HBUS circuit, terminate the board by connecting the supplied on-board termination jumper (J28) to the board. The location of the termination jumper (J28) is shown in the topic "Component Layout"... -
Page 6: Installation
Click the Status and Overrides tab and check the Disable Rear Tamper checkbox for the top board. 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 6... -
Page 7: Connections
• For UL installation the minimum cable size is 22 AWG. • Run a common ground (-ve) from the Controller for all RS485 devices. 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited... -
Page 8: Balanced Inputs
When the monitored device incorporates a normally-closed tamper switch, it can be wired in series with resistor R1. Resistor values can be configured for a HBUS 16 In 16 Out Board in Command Centre (via the EOL Resistors property page). Refer to the topic "Configuring EOL Resistors for devices" in the Command Centre Configuration Client Online Help. -
Page 9: Component Layout
Communications with the Controller, but module is not configured. 1 Flash (Red) Fully configured and functioning normally. 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 9... -
Page 10: Technical Specifications
* Gallagher modules are UL humidity tested and certified to 85% and have been independently verified to 95%. 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 10... -
Page 11: Approvals And Compliance Standards
UL compliant. AS/NZS IEC 60839.11.1:2019 Grade 4, Class II EN50130-4 EN50131-3 Grade 4, Class II EN55032 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 11... -
Page 12: Mounting Dimensions
9 Mounting Dimensions IMPORTANT This picture is not to scale, therefore use the measurements provided. 3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021 Copyright © Gallagher Group Limited Page 12...
