Device description

Technical data
Product name,
Mobile radio link,
Rechargeable battery,
Power supply,
Switching output,
Measuring voltage range,
Operating temperature,
Storage temperature,
IP protection class,
Dimensions,

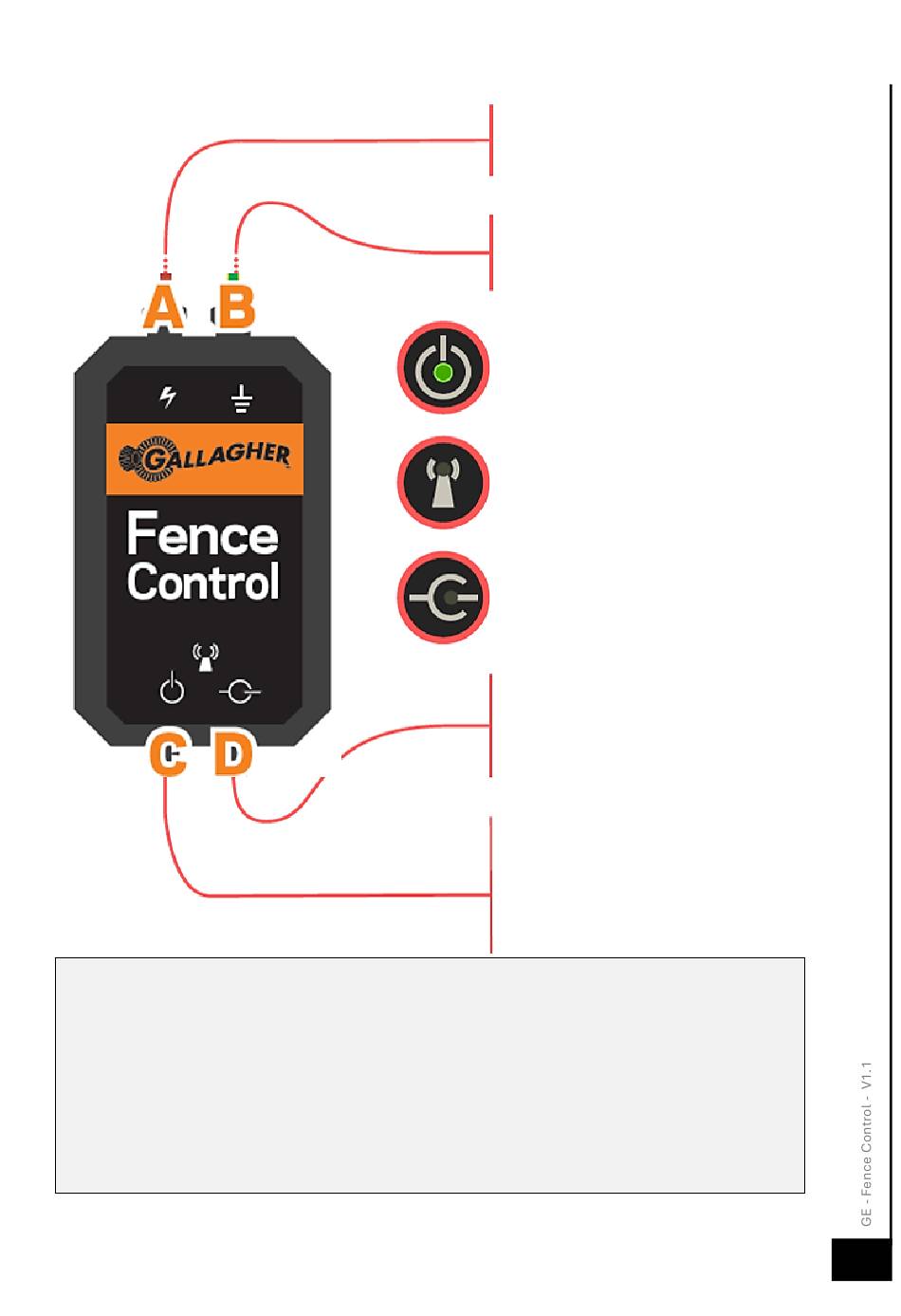

Gallagher Fence Control
GSM / LTE-M 900/1800 MHz
Li-ion battery / 3.7V / 1200mAh
6V to 18V DC / 15mA
9V to 15V DC / 2A
500V to 15,000V up to an impact strength of 15 joules
-20°C to +50°C
-40 °C to +50 °C
IP66
142 x 80 x 30 mm
Measuring connection for fence voltage
Screw connector for connection to the electric
fence.
Grounding
Screw terminal for connection to an earth pin,
for optimum contact with earth.
LED Supply voltage
Flashes when the device is ready for use, the
duration of the flashing is proportional to the
power supply voltage (page 4).
Signal strength LED
Flashes when the device is ready for use. The
duration of the flashing indicates the quality of
the radio signal.
LED Fence voltage
Lights up briefly when a high-voltage pulse
from the energizer is recognised.
Power supply for energizer or external
switching output
Power supply for 9V to 12V fence devices
Alternative: Offers the option of an external
230V network device to be switched on and
off via SMS.
Power supply
6V to 18V DC supply voltage. Can be
connected to the battery of the energizer or to
a mains adapter. If the mains switch power
supply is used, it can also be used to switch
230V energizers on and off via SMS.
