Silonn ‎ SLIM17T - Ice Maker Manual

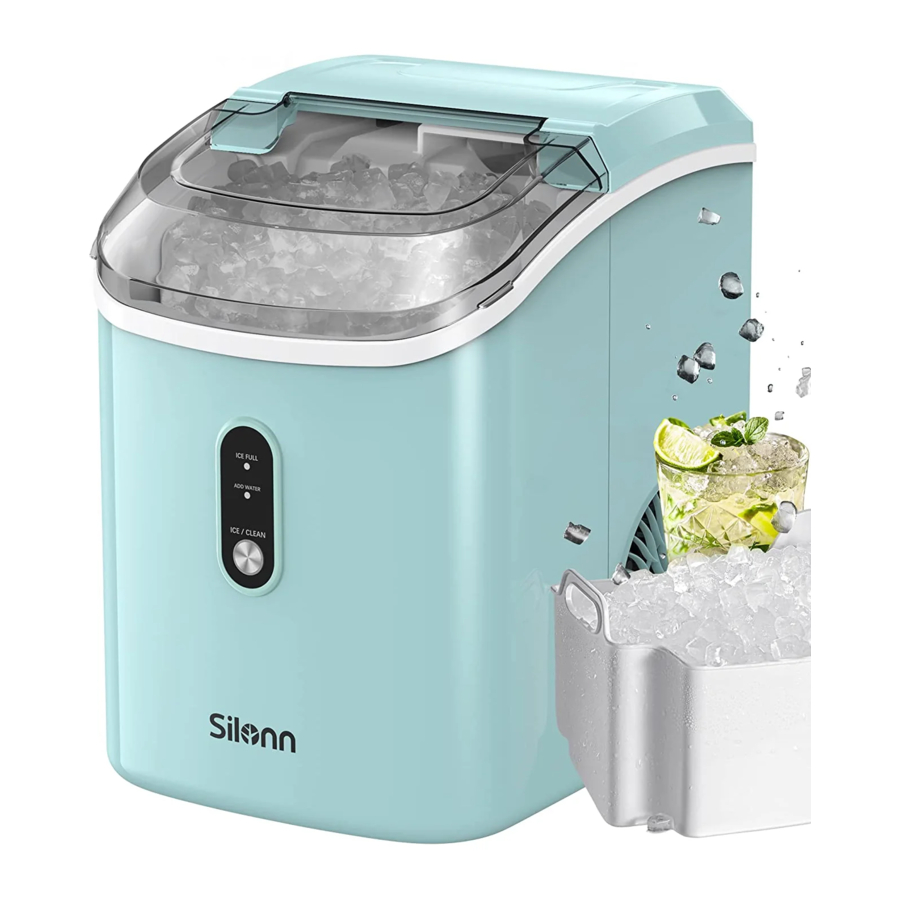

PRODUCT INTRODUCTION

Tip: To pull off the cover, place your fingers in the opening under the left side.
PRODUCT INTRODUCTION

  1. Removable Top Cover
  2. Secondary Water
  3. Ice Full Sensor
  4. Ice Outlet
  5. Water Reservoir
  6. Control Panel
  1. Air Exhaust Fan
  2. Drain Plug
  3. Maximum Water Fill Line
  4. Filter
  5. Ice Basket
  6. Ice Scoop

CONTROL PANEL INTRODUCTION

CONTROL PANEL INTRODUCTION

Key (with indicator light) Function
1 ICE FULL The indicator light turns red when the ice basket is full.
2 ADD WATER The indicator light turns red when the water reservoir needs water.
3
 ICE/CLEAN Short press the UICE/CLEAN" button to turn on the ice maker and the ring indicator light turns white.
Short press the "ICE/CLEANII button to turn off the ice maker and the ring indicator light turns red.
The ring indicator light turns red when the ice maker is in standby mode. In standby mode, longpress the "ICE/CLEAN" button for 5 seconds and the ice maker will switch to self-cleaning mode. The ring indicator light will flash in white consecutively.

USING YOUR ICE MAKER

BEFORE FIRST USE

  1. Stand upright for 24hrs.

    Check for accessories.

    Missing parts? Contact us.
  2. Use in locations 10ºC- 32ºC.

    Perfect ice shape.
  1. What Not To Do!
    Unstable base.

    No other liquids (Drinking water only).

    Do not use in high or low temps.

Do not put your fingers into the ice outlet. The ice maker will detect ice is full and stop working. Wait 3 mins before further operation.
BEFORE FIRST USE

HOW TO USE YOUR ICE MAKER

  1. Open cover and remove basket.
    HOW TO USE YOUR ICE MAKER - Step 1
  2. Pour water, do not exceed the 'IMAX" water mark.
    HOW TO USE YOUR ICE MAKER - Step 2
  3. Press the "ICE/CLEAN" button.
    HOW TO USE YOUR ICE MAKER - Step 3
  4. Wait 6min-8min.
    HOW TO USE YOUR ICE MAKER - Step 4

Ice full and ready when "ICE FULL" indicator is on.
HOW TO USE YOUR ICE MAKER - Step 5

When "ADD WATER" indicator is red, add water and press "ICE/ CLEAN".
HOW TO USE YOUR ICE MAKER - Step 6

CLEANING AND MAINTENANCE

To keep your ice tasting fresh and the unit looking great, we recommend cleaning the unit once per week.

MANUAL CLEANING

  1. Remove the top cover and basket.
  2. Clean both water reservoirs using a soft cloth dampened with warm water and vinegar, then rinse with clean water.
  3. Drain Plug
    Drain excess water over sink.
    MANUAL CLEANING
  4. Clean exterior with cloth and mild dishwashing soap.

SELF-CLEANING (IS-MIN PROCESS)

  1. Remove the basket and add water up to the 'IMAX" water level.
  2. In Standby Mode Hold for 5 sec to start self-cleaning
  3. Drain Plug
    Drain excess water over sink.
    SELF-CLEANING (IS-MIN PROCESS)
  4. Clean exterior with cloth and mild dishwashing soap.

warningDO's & DON' Ts while cleaning and maintaining

  • Do not use organic solvent, boiled water, detergent, strong acid and strong alkali etc. for cleaning.
  • When the unit is not to be used for a long duration, drain the water completely & dry the interior.
  • Store in a well ventilated area.

PRODUCT SPECIFICATIONS

Model SLIM17B/SLIM17G1/ SLIM17G SLIM17T
Voltage/Frequency 115V/60Hz 115V/60Hz
Ice-making Current 2.7A 2.7A
Water Reservoir 1.1L 1.1L
Ice Basket Capacity 1.76 lbs (0.8KG) 1.76 lbs (0.8KG)
Ice-making Rate 33 lbs per day 33 lbs per day
Ice Shape Nugget N ugget
Material ABS, pp ABS, PP, Stainless Steel
Net Weight 17.6 lbs (8KG) 17.6 lbs (8KG)
Product Size 11.3 x 8.66 x 12.68 inch
(287 x 220 x 322mm)		 11.3 x 8.66 x 12.68 inch
(287 x 220 x 323mm)

TROUBLESHOOTING

Problem Possible Causes Solution

"ADD WATER" light is on

 Low water level or not enough water. Stop making ice, refill water, press "ICE/CLEAN", then restart and try again.

"ICE FULL" light is on

 There is too much ice. Remove some ice.
If there are no ice cubes, there may be an obstruction or the inner wall needs cleaning. Remove the obstruction inside or clean the inner wall of the ice storage.

Ring indicator light flashes in red

 The ambient temperature or the water temperature in the inner tank is too high. Please run the ice maker when the ambient temperature is below 90 ºF and pour colder water into the tank.
Refrigerant liquid leakage. Press the ICE button twice to restart the ice-making program. If this problem shows up again. Please contact the customer service.
The cover motor is broken.
The pipe in the cooling system is blocked.

Making Ice too slowly

 Hot air outlet has been blocked by something. Hot air outlet must be guaranteed to have more than 5.9 inches of ventilation distance.
The water temperature in the inner tank is too high. Water temperature requirement between 7 ºC - 32ºC.
Refrigeration system malfunctions. Please contact customer service.

Water leakage

 The drain plug is not in place. Put the drain plug in place.
Pipe joints in the appliance may loose. Please contact customer service.
The seal has reached the end of its service life.

IMPORTANT SAFETY INFORMATION

To reduce the risk of injury or property damage, please follow these safety precautions.

  • Voltage power from outlet must match specifications on appliance nameplate.
  • This appliance must be grounded.
  • Using an extension cord may cause overheating and increase the risk of fire.
    If an extension cord MUST be used:
  1. Only use an extension cord with grounding plug.
  2. The marked rating of an extension cordmust be equal to or greater than the rating of this appliance.
  • Do not operate if any component, including the cord or plug, is damaged.
  • Unplug the unit before cleaning by hand.
  • Only responsible and capable adults should operate the ice maker.
  • Do not place the power cord where it could be pulled by children or pose a tripping hazard.
  • Children should not be left unattended near the ice maker during operation.
  • Do not use water that is micro-biologically unsafe or of unknown quality.
  • Do not remove any safety, warning, or product information labels from the unit.
  • Do not touch the evaporator with your hands while the ice maker is operating.
  • Do not plug in or unplug the unit with wet hands.
  • The unit must be placed and set up according to installation instructions before use. The unit is for indoor household use only.
  • Do not store or use flammable vapors or liquids near the unit.
  • Do not immerse any part of the unit in water.
  • Do not attempt to disassemble, repair, modify or replace any part of the ice maker without permission from Silonn or its affiliates.



FIRE OR EXPLOSION HAZARD Flammable Refrigerant
This unit contains an isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility.
However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

  1. When handling, installing, and operating the unit, care should be taken to avoid damage to the refrigerant tubing.
  2. Only dispose of the unit according to Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal of the unit.
  3. Keep ventilation openings around the unit's enclosure clear of obstruction.
  4. Do not place the unit near heat sources such as an oven.
  5. Ensure a minimum of three inches of clearance around the side and back walls of the unit for proper air circulation.
  6. Do not place the unit in direct sunlight.
