Silonn ‎SLIM09 - Ice Maker Manual

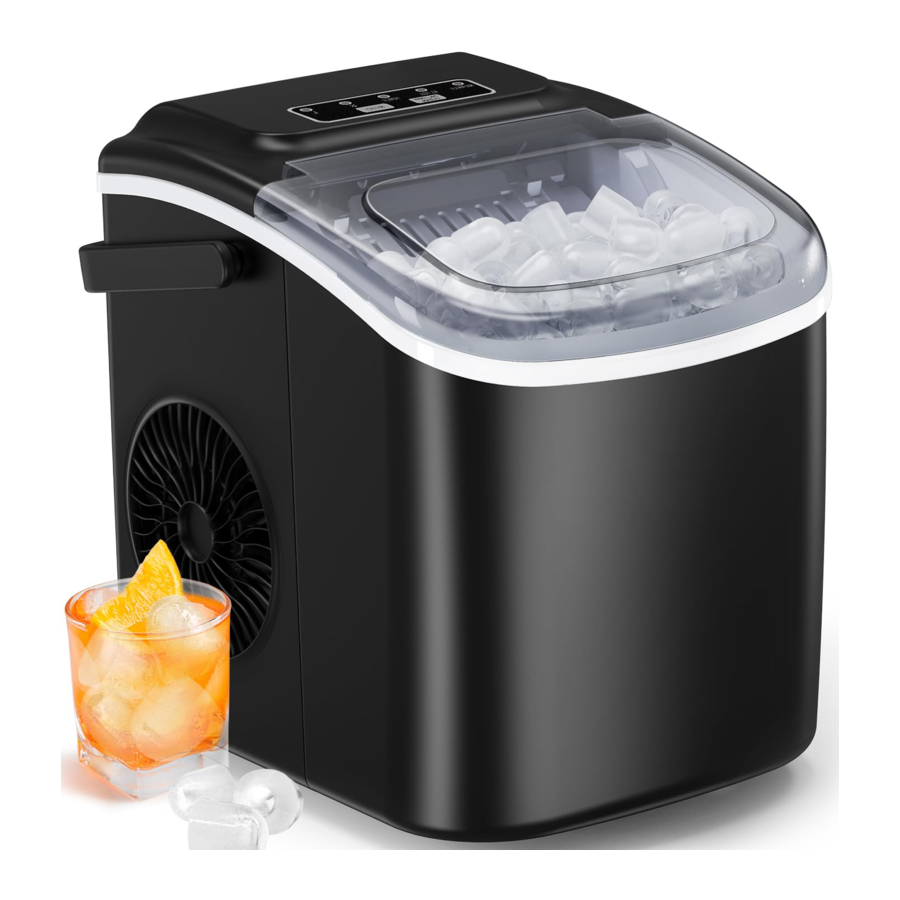

PRODUCT INTRODUCTION

Large Viewing Window
Ice Full Sensor
Ice Shovel
Maximum Water Fill Line
Air Exhaust Fan

Control Panel
Handle
Drain Plug
Ice Basket
Ice Scoop

CONTROL PANEL INTRODUCTION

	Key (with indicator)	Function
1	ADD WATER	The indicator light turns red when the water reservoir needs water.
2	ICE FULL	The indicator light turns red when the ice basket is full.
3	S	The indicator light turns green when small ice mode is selected.
4	L	The indicator light turns green when large ice mode is selected.
5	ON/OFF CLEAN	Short press the "ON/OFF/CLEAN" button to turn on the ice maker and the "POWER" indicator light turns green.
		Short press the "ON/OFF/CLEAN" button to turn off the ice maker and the "POWER" indicator flashes in green.
		When the ice maker is in standby mode, long-press the "ON/OFF/CLEAN" button for 5 seconds and the ice maker will switch to self-cleaning mode_. The indicator lights of "S" and "L" will flash in green consecutively.
6	SELECT	Confirming large ice mode or small ice mode.

USING YOUR ICE MAKER

BEFORE FIRST USE

Stand Upright for 24Hrs

Check for Accessories

Missing Parts? Contact Us.

Discard first 4 cycles of ice

Use in locations 10°C ~ 32°C

Perfect Ice Shape

Installing The Handle
Position the handle over the insert hole.

Fit the handle into the insert notch.

Lift back to lock into place.

What Not To Do!
Unstable base.

No other liquids (Drinking water only).

Do not use in high or low temps.

HOW TO USE YOUR ICE MAKER

Open cover and remove basket.
Pour water, do not exceed the "MAX" water mark.
Press the "ON/ OFF" button.
Press "SELECT" to choose ice cube size.
Wait 6min-13min.
Ice full and ready when "ICE FULL" indicator is on.
When "ADD WATER" indicator is red, add water and press "ON/OFF".

CLEANING AND MAINTENANCE

To keep your ice tasting fresh and the unit looking great, we recommend cleaning the unit once per week.

MANUAL CLEANING

Remove the basket.
Clean using a soft cloth with warm water and vinegar, then rinse with clean water.
Drain Plug
Drain excess water over sink.
Clean exterior with cloth and mild dishwashing soap.

SELF-CLEANING (30-MIN PROCESS)

Remove the basket and add water.
In Standby Mode Hold for 5 sec to start self-cleaning.
Drain Plug
Drain excess water over sink.
Clean exterior with cloth and mild dishwashing soap.

warning DO's & DON'Ts while cleaning and maintaining

Do not use organic solvent, boiled water, detergent, strong acid and strong alkali etc. for cleaning.
When the unit is not to be used for a long duration, drain the water completely & dry the interior.
Store in a well ventilated area.

PRODUCT SPECIFICATIONS

Model	SLIM09B/SLIM09W/ SLIM09G1	SLIM09T
Voltage/Frequency	115V/60Hz	115V/60Hz
Ice-making Current	1.5A	1.5A
Ice-harvesting Current	1.8A	1.8A
Working Power	≤160W	≤160W
Water Reservoir	1.2L (0.32gal)	1.2L (0.32gal)
Ice Basket Capacity	1.32 lbs (0.6KG)	1.32 lbs (0.6KG)
Ice-making Rate	26 lbs per day	26 lbs per day
Ice Shape	Bullet	Bullet
Ice Size	Small or Large	Small or Large
Material	ABS, PP	ABS, PP, Stainless Steel

TROUBLESHOOTING

Problem	Possible Causes	Solution
Poor ice shape or quality	Poor heat dissipation.	Leave a 6-inch clearance on all sides of the ice maker for ventilation.
	The water temperature is too high.	Fill with water temperature between 8°C and 25°C.
	The ambient temperature is too high.	Use the ice maker in room temperatures between 10°C and 32°C.
	Evaporator deformation	Please contact customer service.
Ice maker creating loud noise	Ice maker has not been cleaned for a long time, which will form a sticky substance around the inlet of the water pump.	Clean every 1 to 2 weeks, using some neutral cleaning agents (such as mild vinegar solution and soapy water etc.)
	Lack of water to pump will create noise when pumping water.	Add more water.
	Fan or ice maker is damaged.	Please contact customer service.
	Water pump is damaged.	Please contact customer service.
"ICE FULL" light is on	Ice is blocking the infrared sensor.	Empty the ice basket.
"ICE FULL" light is on	Infrared sensors do not work.	Wipe clean the infrared sensors. Contact customer service if the infrared sensors still don't work.
Ice sticks together	Making ice takes too long.	Stop making ice, after the ice melts restart and try again.
	The water temperature is too low.	Fill with water temperatures between 8°C and 25°C.
	Evaporator deformation.	Please contact customer service.
Not making ice	Ambient or water temperature is too high.	Keep ambient temperature less than 32°C and fill with cold water.
	Water pump is damaged.	Please contact customer service.
	Refrigerating system leaking.
	Refrigerating system blocked.
	The fan stopped working.
	The wires are loose.
	The gears in the motor are broken.
"ADD WATER" light is on	Low water level or not enough water.	Stop making ice, refill water, press "ON/OFF", then restart and try again.
	Water screen blocked at the bottom of the water reservoir.	Start the self cleaning function.
	Pump malfunction.	Please contact customer service.
	Water detector malfunction.	Please contact customer service.

All of us at Silonn do appreciate your ice maker purchase. We hope that you are as happy with the ice maker as we were designing and manufacturing it for you. We strive to provide you with the best quality ice makers and services in the industry.

Questions or Problems?

support@silonn.com

877-546-8603

IMPORTANT SAFETY INFORMATION

To reduce the risk of injury or property damage, please follow these safety precautions.

Voltage power from outlet must match specifications on appliance nameplate.
This appliance must be grounded.
Using an extension cord may cause overheating and increase the risk of fire.
If an extension cord MUST be used:

Only use an extension cord with grounding plug.
The marked rating of an extension cordmust be equal to or greater than the rating of this appliance.

Do not operate if any component, including the cord or plug, is damaged.
Unplug the unit before cleaning by hand.
Only responsible and capable adults should operate the ice maker.
Do not place the power cord where it could be pulled by children or pose a tripping hazard.
Children should not be left unattended near the ice maker during operation.
Do not use water that is micro-biologically unsafe or of unknown quality.
Do not remove any safety, warning, or product information labels from the unit.
Do not touch the evaporator with your hands while the ice maker is operating.
Do not plug in or unplug the unit with wet hands.
The unit must be placed and set up according to installation instructions before use. The unit is for indoor household use only.
Do not store or use flammable vapors or liquids near the unit.
Do not immerse any part of the unit in water.
Do not attempt to disassemble, repair, modify or replace any part of the ice maker without permission from Silonn or its affiliates.

FIRE OR EXPLOSION HAZARD Flammable Refrigerant
This unit contains an isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility.
However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

When handling, installing, and operating the unit, care should be taken to avoid damage to the refrigerant tubing.
Only dispose of the unit according to Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal of the unit.
Keep ventilation openings around the unit's enclosure clear of obstruction.
Do not place the unit near heat sources such as an oven.
Ensure a minimum of three inches of clearance around the side and back walls of the unit for proper air circulation.
Do not place the unit in direct sunlight.
