The CA 163 Loudspeaker can be wall mounted with either of the following mounting options:
•
SMK LP CA Low-Profile Mounting Bracket Kit
•
SMK PT CA Pan-Tilt Mounting Bracket Kit

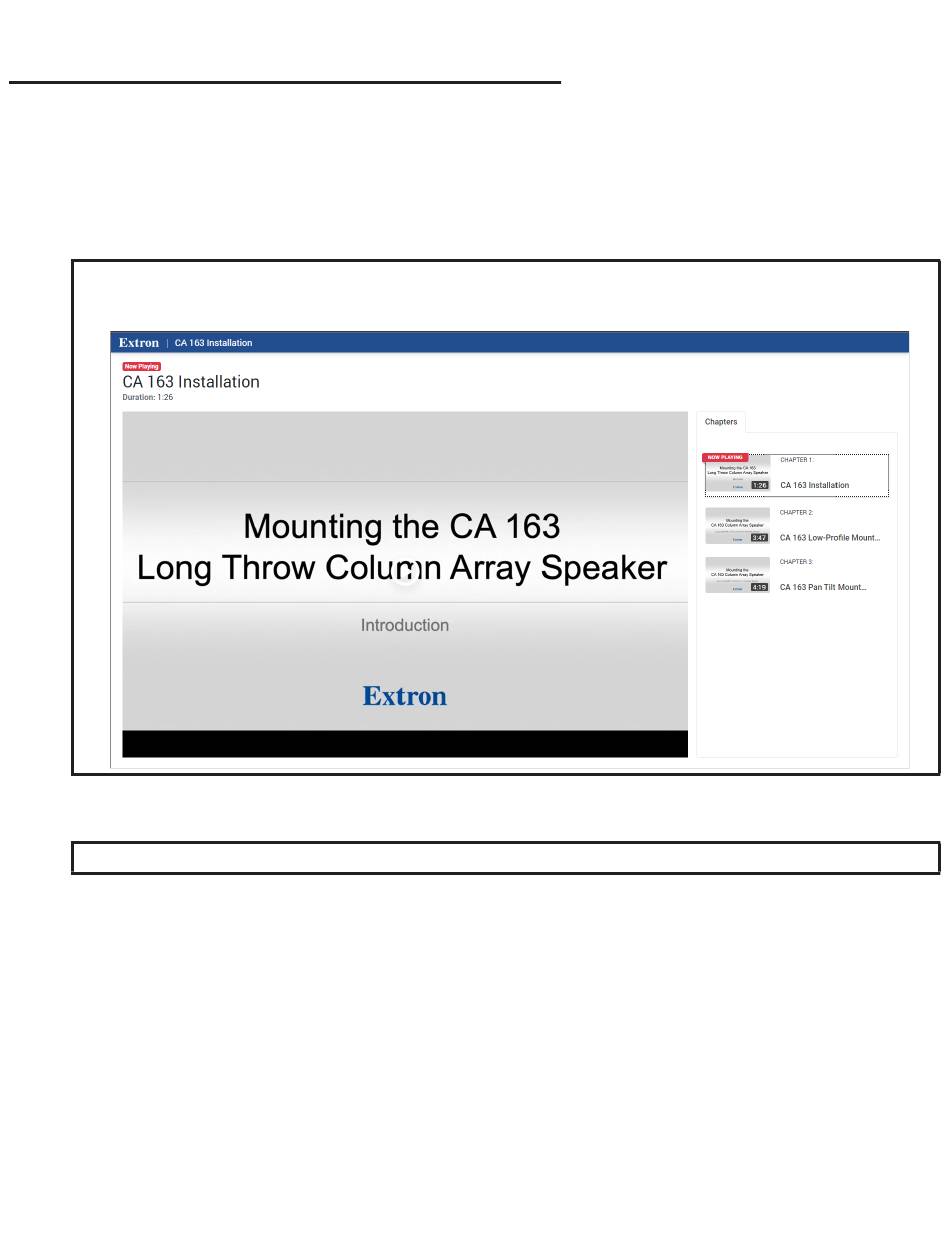

NOTE: For mounting kit video tutorials, see the CA 163 installation videos page at
Video/Play?id=143238&morevideos=0
mounting and Chapter 3 for Pan Tilt mounting.
For regions that require it, the
a suitable anchor point on the wall or ceiling.
NOTE: Do NOT discard the Mounting Template or foam end caps until entire installation process is complete.
— mounts flat; can be adjusted for ±2.5° and ±5° tilt.
— allows up to 15° tilt and ±65° panning.
(see image below). See Chapter 2 (on the right) for Low-Profile
Secondary Tie-off
provides additional mounting stability; securing the speaker with
CA 163 Column Array Speaker • Mounting Options
