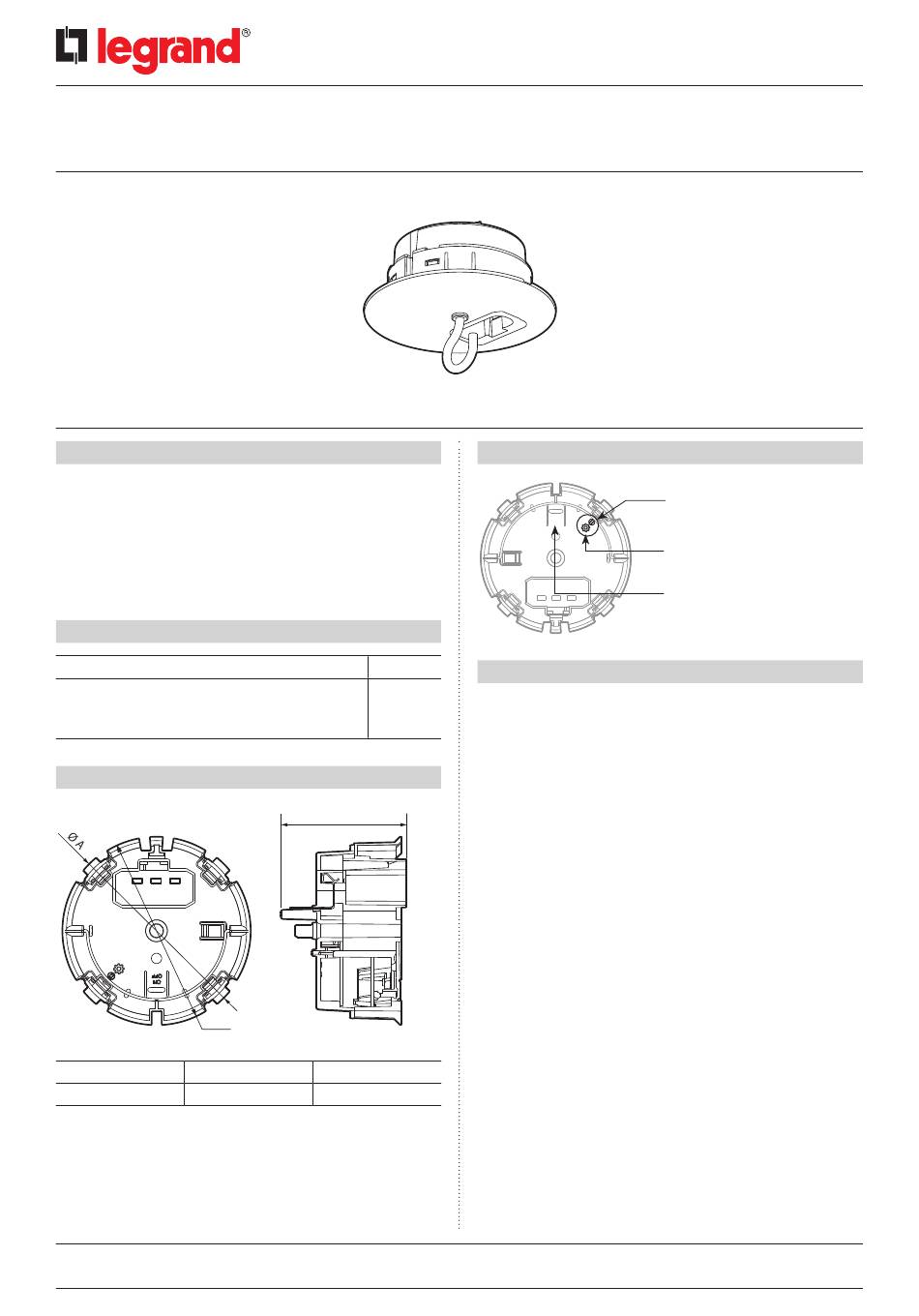

LEGRAND Modul'up Netatmo 0 885 21 Quick Start Manual

Modul'up with Netatmo
TM
DCL connected ON/OFF 300 W
1. USE
Lighting appliance.
Connected DCL Modul'up with Netatmo for any type of lamp including
LED.
This product is an accessory that necessitate first the installation of a
"Céliane, Mosaic, Dooxie with Netatmo" starter pack.
Its receiver function allows it to be combined with 1-gang or 2-gang (wire-
less switches), IR detectors, by tapping the wireless control on the DCL.
Configuration with the application Legrand Home + control.
2. RANGE
Description
Connected DCL socket with one ON/OFF circuit.
Equipped with an LED indicator (configuration) and a
RESET (hidden) use to return to factory settings.
3. DIMENSIONS (mm)
Ø A'
Ø A
93
Technical data sheet: F02831EN/00
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tél. : 0 (+33) 5 55 06 87 87 - Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
Reference
0 885 21
B
Ø A' B
75 50.5
4. FUNCTION
ON
OFF
5. TECHNICAL CHARACTERISTICS
 5.1 Mechanical characteristics
Protection against impacts: IK 04
Protection againt solid/bodies and liquids: IP 20
 5.2 Material characteristics
Casing: PC
Base mechanism: PC
Cover: ABS
Hook: Steel
UV resistance
Halogen free
Self-extinguishing:
850° C/ 30 s for insulating parts holding live parts in place
650° C / 30 s for other parts made of insulating materials
 5.3 Electrical characteristics
ZigBee radio technology frequency 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Wireless mesh network, self-adaptive and secure (AES 128), conforming
to standard IEEE 802.15.4 (LR-WPAN)
Range: 200 m of unobstructed space
10 m between products indoors
Consumption: - operation: 0.5 W
- Standby: 0.2 W
Voltage: 250 V~
Frequency: 50/60 Hz
Integrated surge protection
Updated:
Référence : 0 885 21
RESET BUTTON
used to return to factory settings
LED indicator
useful during installation for configuration
ON/OFF button
Created: 01/07/2019
