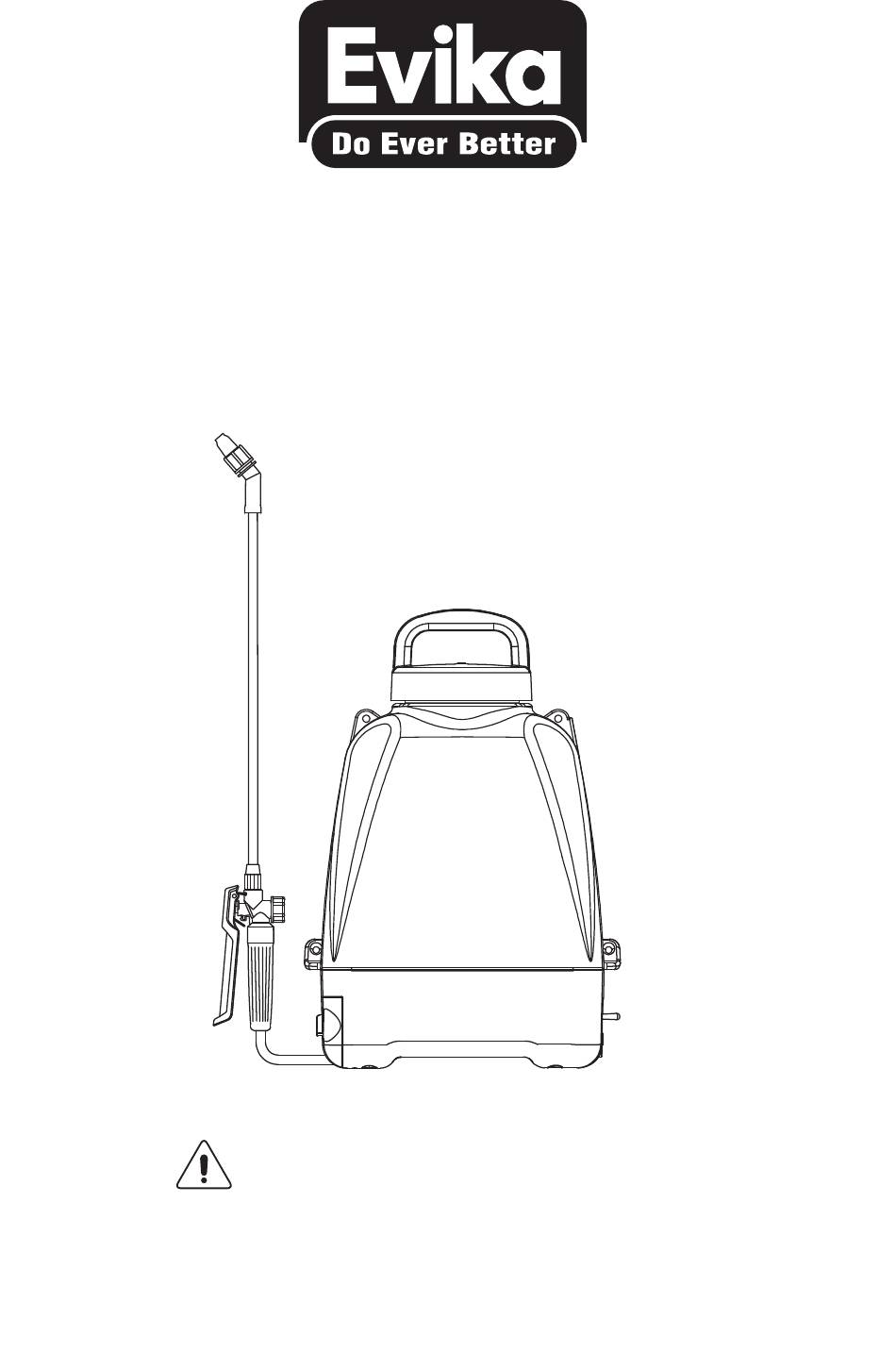

- Page 1 Instruction Manual For Battery Sprayer Warning: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 2 Assembly: Name Name Li-ion btattery Tank Battery cover Big screen Battery box dead plate Cap flat gasket Base Cap valve Outlet filter sleeve-bend joint Outlet filter sleeve-O ring Trigger outlet filter sleeve-joint PP lance Outlet filter sleeve-screen Hose Inlet tube Hose clamp Switch welding assembly Pump...
- Page 3 Safety instructions and cautions for lithium battery: • Lithium battery needs to be charged indoors not outdoors, so as to avoid accidents. • When the lithium battery needs charging, please take it out from the product, and plug into the charger, if the light turns red, which shows it’s charging, when the light turns green, which means it’s full charged.
- Page 4 Operating instructions: Open the cap Put pesticide and water inside Off/on PP lance T Tigger...
-
Page 5: Assembling Instruction
Direct spray Assembling instruction: 1. Please open the battery cap as pic 1 in below. 2. Put battery(NO.1 in page 2) inside the machine. Please refer to pic 2 in below. 3. Close the battery cap as pic 3 in below. 4. - Page 6 (F) on means charging finish. 5. Pull out the battery when charging finish, disconnect power. Charging finish Under charging (green light) (red light ) Input:100-240V~50-60HZ, Output:13.1V 1.4A PRODUCT INFORMATION/TECHNICAL DATA: Item No. EJ60 EJ80 EJ120 Total capacity 6.0L 8.0L 12.0L Voltage 10.8V 10.8V 10.8V...
-
Page 7: Troubles Shooting
Maintenance of equipment: 1. Please take out the battery after use and recharger it if no power inside. 2. Clean the machine by water. 3. Put the machine in a cool and dry place. Troublesshooting: Problems Causes DJ160 The motor fails to start 1.
