Furrion DV5700S Quick Start Manual

ENTERTAINMENT SYSTEM
MODEL: DV5700S
QUICK START GUIDE

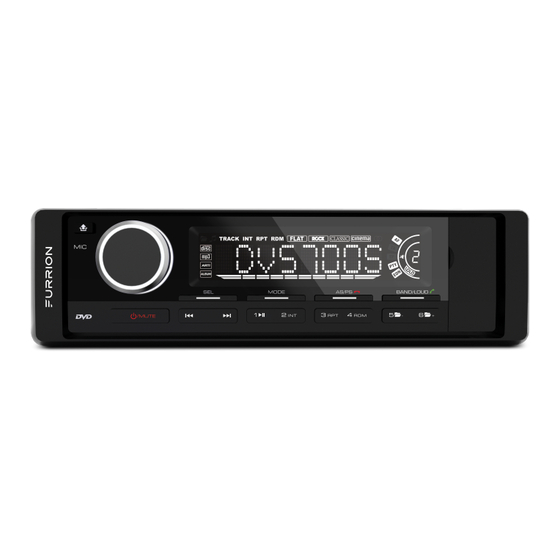

* Product picture for reference only
This quick start guide will help you install and use the device
properly. For further support and to download the complete user
manual please visit www.furrion.com/support.
What's in the Box
●
DV5700S Main Unit
●
Mounting Screws
●
Trim Ring
●
Harness
●
Remote Control
●
Warning Card
●
Quick Start Guide
●
Warranty Manual
NOTE: Product design and packaging may change without notice.
Setup

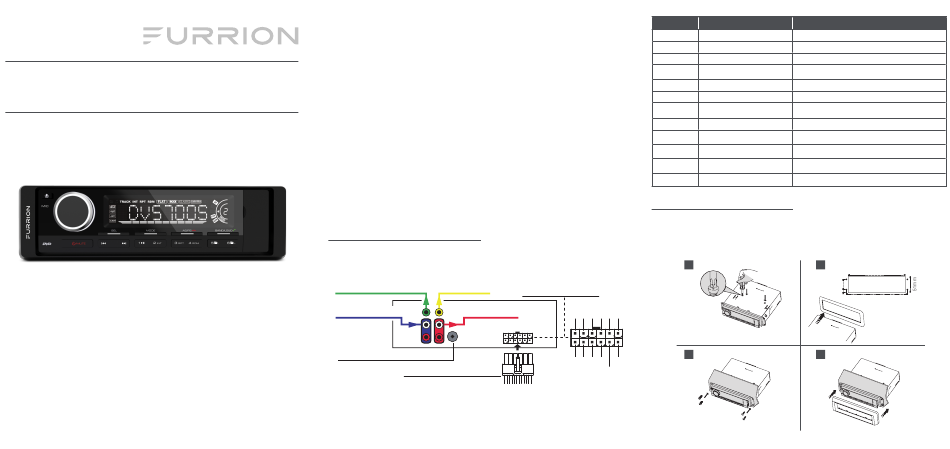

STEP 1: Connect your Device
Please connect according to following diagram for proper
functionality.
SUBWOOFER OUT VIDEO OUT
AUDIO IN AUDIO OUT
ANTENNA CONNECTOR
WIRING HARNESS
PIN NO.
1 GRAY
2 GRAY/BLACK
3 WHITE
4 WHITE/BLACK
5 GREEN/BLACK
6 GREEN
7 PURPLE/BLACK
8 PURPLE
9 BLUE
10 RED
11 YELLOW
12 BLACK
STEP 2: Install Your Device
IMPORTANT: Before final installation, check by powering the
stereo on to make sure unit operates properly.
Fix the unit with screws according to the following diagram.
1
WIRING SOCKET
Remove Screw
1 3 5 7 9 11
3
2 4 6 8 12
10
COLOR FUNCTION
FRONT RIGHT SPEAKER (+)
FRONT RIGHT SPEAKER (-)
FRONT LEFT SPEAKER (+)
FRONT LEFT SPEAKER (-)
REAR LEFT SPEAKER (-)
REAR LEFT SPEAKER (+)
REAR RIGHT SPEAKER (-)
REAR RIGHT SPEAKER (+)
AUTO ANTENNA
+12VDC IGNITION SWITCH
MEMORY +12VDC
GROUND
2
182.6mm
32.7mm
9.15mm
194.6mm
Recommended
cutout
4
