Entertainment System DV5600
Instruction Manual

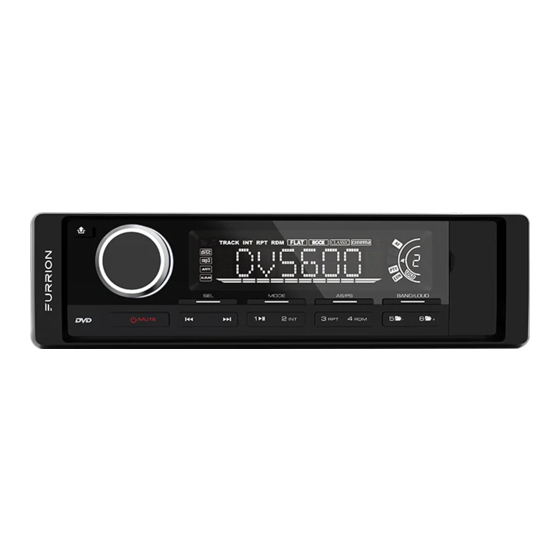

*Product picture is for reference only.
Model: DV5600

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV5600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Furrion DV5600

  • Page 1 Entertainment System DV5600 Instruction Manual *Product picture is for reference only. Model: DV5600...
  • Page 2: Welcome

    Welcome Thank you and congratulations for purchasing the Furrion DV3300S-BL Entertainment System. ® Before operating your new product, please read these instructions carefully. This instruction manual contains information for safe use, installation, and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury.
  • Page 3: Table Of Contents

    Contents Welcome ......................1 Contents ......................2 Safety and Notice ....................3 Class 1 Laser Product ........................3 Safety ..............................3 Notice of compliance ........................4 FCC Radiation Exposure Statement ....................4 Introduction ......................5 What’s in the box ..........................5 Precautions ............................5 Features ............................6 Supported Format ..........................6 Functional Overview ..................7 Control Panel ..........................7 Remote Control ..........................8 Before Operation ....................10...
  • Page 4: Safety And Notice

    Safety and Notice Safety 3. Switch off the power when the unit is not in use. (Disconnect the power plug from the power outlet when you do not intend to use the unit for a prolonged period of CAUTION time.) Before moving the unit, remove the disc from the unit/tray first.
  • Page 5: Notice Of Compliance

    Safety and Notice Notice of compliance FCC Radiation Exposure Statement The device complies with Part 15 of the FCC This equipment complies with FCC radiation Rules. Operation is subject to the following exposure limits set forth for an uncontrolled two conditions: environment.
  • Page 6: Introduction

    Introduction What’s in the box Thanks for purchasing the Furrion DV5600 Entertainment System. This manual will help you set up and begin using your product. Please read this manual thoroughly and keep this manual in a safe place for future reference.
  • Page 7: Features

    Introduction Features ● Digital AM / FM Tuner ● DVD/CD-R/RW/MP3/WMA Compatible ● Auxiliary inputs on front and rear ● USB input ● 1 x RCA audio/video output for connecting additional TV ● 1 x subwoofer output ● 1 x memory card (SD/MMC) slot ●...
  • Page 8: Functional Overview

    Functional Overview Control Panel 3 RPT: Select repeat playback mode. / MUTE 4 RDM: Select random playback mode. Turn on or off the unit. : Skip to the previous folder. Mute or un-mute the audio output. : Skip to the next folder. AUX socket Skip to the previous / next track.
  • Page 9: Remote Control

    Functional Overview Remote Control AS / PS Start automatic programming of radio stations. Scan preset radio stations. Stop playback. LCD screen MODE Select a sound source. Select a preset sound effect. Volume knob Turn the knob clockwise / counterclockwise to increase / decrease VOL+/- volume.
  • Page 10 Functional Overview PBC / TITLE A-B / ZOOM Play a specific segment in a chapter / Display the title list during DVD/VCD track repeatedly. playback. During DVD/VCD playback, zoom in / out Turn on / off PBC (PlayBack Control) of a on images.
  • Page 11: Before Operation

    Before Operation Wiring Diagram Audio Output: Left (White) and Right (Red) Audio Input: Left (White) and Right (Red) Subwoofer Output: Green Video Output: Yellow Connect to an external A/V system for display. Note: Connect red wires to your car ignition key to avoid car battery drain when the car is not to be used for a long period.
  • Page 12 Before Operation Location 1. Choose a mounting location away from humid areas, water sources, appliances or any equipment that can radiate heat. 2. Select an area on a wall or cabinet which is free from cable, fuel or brake lines. Ensure the area behind the unit has a vent hole or if it is an enclosed box, it has adequate room around the rear of the unit for cooling.
  • Page 13 Before Operation Attach / detach the front panel Notes: ● You can easily attach the front panel by pressing it lightly against the unit. Never press it hard. ● Do not press hard or give excessive pressure to the LCD display of the front panel during operation.
  • Page 14: Prepare The Remote Control

    Before Operation Prepare the Remote Control Remote control battery note ● Improper use of a battery may cause 1. Before using the remote control for the overheating or an explosion that could first time, pull the insulating sheet out result in injury or fire. of the remote control in the direction Battery leakage may cause damage to the ●...
  • Page 15: Operation

    Operation Quick Reference Guide General Operation Press to turn on the unit. Power on/off on the remote control Press and hold on the main unit (or press ) to turn off the unit. / MUTE Press on the front panel (or on the remote control) to mute Mute sound.
  • Page 16 Operation Radio Operation Press and hold BAND / LOUD on the front panel (or RDM / BD / LD on the remote Select radio region control) for 2 seconds, then immediately press 3 RPT, 1 and 5 successively to select the AM/FM radio region (USA/AUS). 1.
  • Page 17: Common Operation

    Operation Common Operation Select a preset EQ mode Press EQ/ANGLE on the remote control once or more directly, or press and hold SEL once Turn the unit on / off or more to select EQ and then rotate the volume knob to select Flat, Classic, Cinema, Press to turn on the unit.
  • Page 18: Basic Disc / Usb Operation

    Operation Tune to / search for radio stations Use the LOC ON / OFF function In radio mode: 1. In radio mode, sometimes the signals of ● Press to automatically search the distant radio stations are very weak down/up for an available station from the and the reception is poor during tuning.
  • Page 19: Advanced Disc / Usb Operation

    Operation Pause playback 2. Press the number buttons to select your desired track to play. When playing DVD/VCD/CD/MP3/WMA discs, For MP3/WMA: press to pause playback. You can press ● During playback, the root menu is again to resume normal playback. displayed on the TV screen all the time (TITLE/PBC unavailable).
  • Page 20 Operation Play frame by frame 3. Use the navigation buttons to highlight the chapter field, and then use the 1. During DVD/VCD playback, press STEP on number buttons to input the serial the remote control consecutively to play number of a chapter. frame by frame forward.
  • Page 21 Operation Change the caption language 1. Press the navigation buttons to select your desired folder, file or file sort icon When playing DVDs, press SUBT on the from the root menu. remote control once or more to select the 2. Press OK or to open the selected caption language or turn off the caption (if folder, or play the selected file, or play the...
  • Page 22: Set Up The Dvd System Menu

    Operation Show ID3 information ● During MP3/WMA playback, the current file and folder names as well as the ID3 information (if available in V1.0/2.0 format) will scroll on the LCD screen. USB PORT The ID3 information includes the song title, and the artist and album name. USB / AUX IN / SD (MMC) card operation 1.
  • Page 23 Operation to lock the new rating level setting for AUTO PLAY Turn on / off automatic playback. Parental Control. TV TYPE DEFAULT Select an option below to match your TV Reset all settings to their original status. screen size. Language Setup 4:3 PS: Choose the item when connecting a TV set with 4:3 screen.
  • Page 24 Operation Region Code Note: ● If you have not changed the password, Q: No DVD playback. REGION ERROR is the factory preset password for the unit displayed after insertion of a disc into the will be empty. You will need to input a disc slot.
  • Page 25: Maintenance

    Maintenance Maintenance and Cleaning of Discs Disc Maintenance 1. To keep the disc clean, handle the disc by its edge, and do not touch the disc surface of the play side. 2. Do not stick paper or tape on the disc. If there is glue on the disc surface, wipe it off before using.
  • Page 26: Troubleshooting

    Troubleshooting Please read the user manual carefully before using the unit. If you have any problems with this product, please refer to the below troubleshooting guide to help you resolve the issue. TROUBLE/SYMPTOM SOLUTION Ensure that the power switch is on. Ensure that the wall inlet is OK.
  • Page 27 Troubleshooting TROUBLE/SYMPTOM SOLUTION Check the batteries of remote control and make sure that they are not dead. Remote control does Direct the remote control to the IR sensor of the unit. not work Check whether there are obstacles between the remote control and IR sensor. Turn off the power, then turn on again.
  • Page 28: Specifications

    Specifications General Specification AM Radio 530-1710 kHz (USA) Power supply Frequency 12V DC (10.8-15.6V allowable) 522-1710 kHz (AUSTRALIA) Range requirement 10 kHz (USA) Speaker 4 or 8 ohm Channel Step 9 kHz (AUSTRALIA) Impedance 45W x 4CH Usable Output Power 32 dB Sensitivity DVD Player System...
  • Page 29: Warranty

    Warranty FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE BY THE ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED TO YOU IN NEW CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION AUTHORIZED RESELLER AND USED IN NORMAL CONDITIONS, IS FREE FROM ANY DEFECTS IN MANUFACTURING, MATERIALS, AND WORKMANSHIP.
  • Page 30 ● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792 ● Email: support@furrion.com ©2007-2018 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for use by ® Furrion Ltd. and registered in the U.S. and other countries. ©2007-2018 Furrion Ltd. Furrion et le logo Furrion sont des marques déposées par Furrion...
