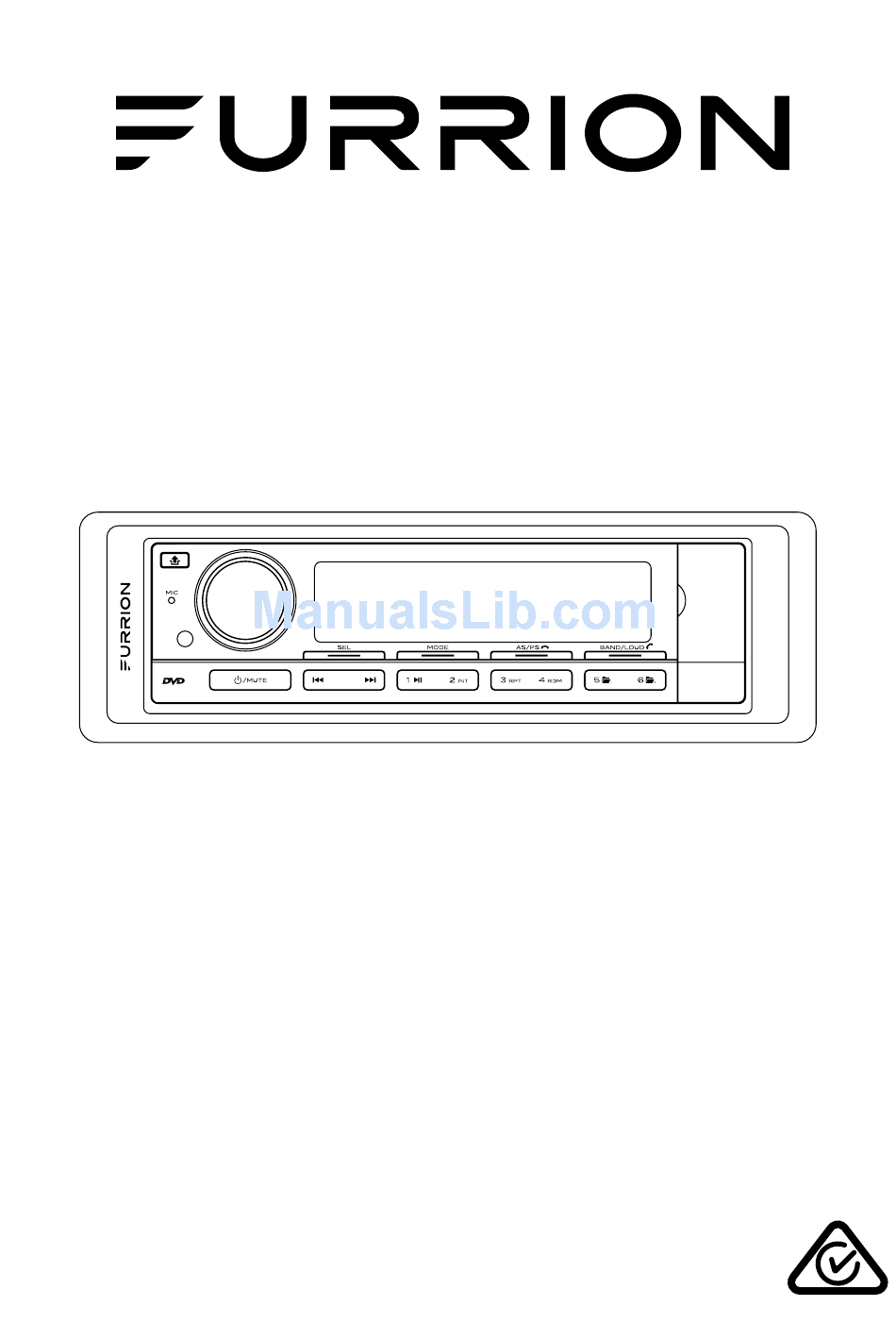

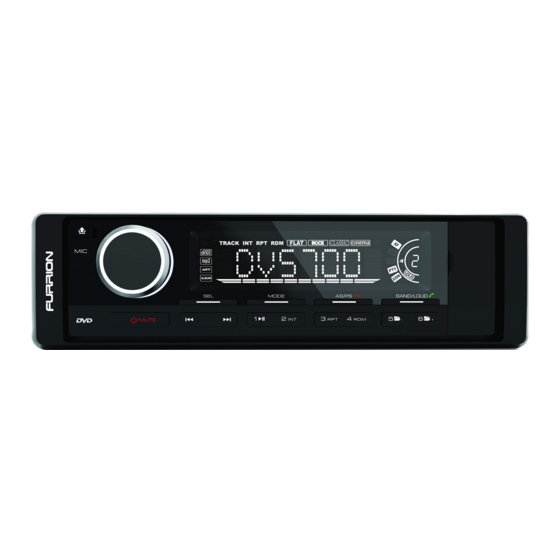

Page 1: Instruction Manual
DV5700 INSTRUCTION MANUAL DVD Stereo 180W/CD/DVD/Radio/MP3 USB/AUX-IN Subwoofer Out/Bluetooth (1-6) - Page 2 Be sure to pass on this manual to new owners of this appliance. The manufacturer does not accept responsibility for any damages due to not observing these instructions. If you have any further questions regarding our products, please contact us at support@furrion.com IM-DV5700-Rev5.0 - PAGE 1...
-
Page 3: Before You Begin
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture. • If the battery is disconnected or discharged, the preset memory will be erased and must be reprogrammed. FEATURES: Supported DVD-video, DVD+/-R, DVD+/-RW and DVD+/-DL. Supported VCD featuring PBC (playback control). Supported CD, CD-R and CD-RW. TV System This unit is PAL/NTSC system compatible. When connecting other components to this unit, be sure components are compatible with the same video system or else images will not be correctly reproduced. Aspect Ratio Selection Switching between wide screen, letter box and panscan display is possible. Audio Selection You can switch between multiple audio systems recorded on a DVD as desired. Subtitle Selection You can switch between multiple subtitle languages recorded on a DVD as desired. When an operation is prohibited When you are watching a DVD and attempt to perform an operation, it may not be supported by the programming on the disc. When this happens, this unit indicates on the screen. IM-DV5700-Rev5.0 - PAGE 2... -
Page 4: To Support The Unit
8. LOCK WASHER (included) 9. PLAIN WASHER (included) 10. TAPPING SCREW PA5X16mm (included) Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen. IM-DV5700-Rev5.0 - PAGE 3... -
Page 5: Cleaning The Connector
BLUE AUTO ANTENNA In this case, consult your nearest repair center. BLACK GROUND Warning YELLOW MEMORY B+ FUSE 10A Use the fuse amperes for each lead. Use of a higher fuse amperes may cause serious damage. IM-DV5700-Rev5.0 - PAGE 4... - Page 6 ) / MUTE BUTTON 2. SELECT FUNCTION BUTTON (SEL) 3. VOLUME KNOB 4. PRESET STATIONS (1,2,3,4,5,6) BUTTON 5. BAND / LOUDNESS BUTTON 6. MODE / SUBWOOFER BUTTON (MODE) 7. AUTO SEEK/PRESET SCAN BUTTON (AS/PS) 8. PREVIOUS/NEXT TRACK/CHAPTER BUTTON ( 9. AUTO SEEK TUNING BUTTON 10. FRONT PANEL RELEASE BUTTON ( 11. LCD DISPLAY (1-6) 12. DISC EJECT BUTTON ( 13. DISC SLOT 14. PLAY/PAUSE BUTTON 15. INTRO BUTTON (INT) 16. REPEAT BUTTON (RPT) 17. RANDOM BUTTON (RDM) 18. SEARCH PREVIOUS / NEXT FOLDER BUTTON ( 19. ANSWER BUTTON ( 20. HANG UP BUTTON ( 21. USB PORT 22. MEMORY CARD SLOT (SD/MMC) 23. AUX IN IM-DV5700-Rev5.0 - PAGE 5...
- Page 7 • When disposing of used batteries, please comply with government regulations or environmental public institution’s rule that apply in your country/area. • Always check carefully that you are loading the battery with plus (+) and minus (-) poles facing the proper directions. Using the remote control Point the remote control in the direction of the front panel to operate. IMPORTANT • Do not store the remote control in high temperatures or direct sunlight. • Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. WARNING Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. IM-DV5700-Rev5.0 - PAGE 6...
-
Page 8: General Operations
• Remote Control : Press and hold LD button on remote control to turn on/off LOUDNESS feature. Equalizer Remote: Press EQ button. Press EQ again or ( ) button to select between Flat/Classic/ Cinema/Rock/EQ Off equalize modes. Subwoofer • Press Unit: and hold MODE button to turn on/off subwoofer. IM-DV5700-Rev5.0 - PAGE 7... -
Page 9: Listening To Radio
SEL button to start play from photo. 4. Press for next photo. 5. Press for previous photo. 6. Press 3 RPT button repeatedly to select Rep-1/Rep DIR/Rep ALL repeatedly playback until press [A/PS] button. IM-DV5700-Rev5.0 - PAGE 8... -
Page 10: Movie Playback
SEL button to start play from 3. Rotate volume knob to select movie 4. Press for next 5. Press for previous 6. Press 3 RPT button repeatedly to select Rep-1/Rep DIR/Rep ALL/Rep OFF repeatedly playback until press AS/PS button. IM-DV5700-Rev5.0 - PAGE 9... - Page 11 1. Connect the AUX-IN socket with the AV output of the external device. USB/Memory Card (SD/MMC) The device is equipped with a USB interface and a memory card reader for SD/ MMC cards. MP3/WMA/AVI stored on these media types can be played. AUX IN IM-DV5700-Rev5.0 - PAGE 10...
-
Page 12: Dvd/Vcd Playback
2. Every time you press this button, the unit switches to the following settings: Repeat 1 – Repeat the current playback track. Repeat Off – Turn OFF repeat function. Note: PBC feature in VCD disc needs to be STOP in order to use Repeat playback. IM-DV5700-Rev5.0 - PAGE 11... - Page 13 This feature lets you slow down playback. 1. Press SLOW button on the remote control during playback. 2. Pressing it repeatedly will switch you to the following steps: 1/2 - 1/ 3 - 1/4 - 1/5 - 1/6 - 1/7. IM-DV5700-Rev5.0 - PAGE 12...
-
Page 14: Setting The Dvd Player
Setup rating level DEFAULT Restore to factory settings OSD Language AUDIO Language LANGUAGE SETUP SUBTITLE Language Select preferred options on screen MENU Language MPEG4 Language BRIGHTNESS CONTRAST VIDEO SETUP Select preferred options on screen SATURATION SHARPNESS IM-DV5700-Rev5.0 - PAGE 13... - Page 15 (MP1/MP2/MP3) MPEG-1 .vob 720 x 480 (30fps) Dolby Digital (AC3) MPEG-2 Supported Audio Format File Extension Audio Codec Bit Rate Sampling Rate Remark .mp3 16kbps - 320kbps 8k - 48kHz WMA only support WMA7/ WMA8/WMA9 .wma 16kbps - 320kbps 8k - 48kHz (CBR/VBR) (Only support 353 format) Note: Reading the above file formats is not guaranteed. IM-DV5700-Rev5.0 - PAGE 14...
- Page 16 2. Turn on Bluetooth function of your mobile phone, then select “add Bluetooth device” from your mobile phone; the mobile phone will search any activated Bluetooth devices nearby, select “Furrion DV5700” and enter Passkey “0000” to connect (refer to manual of your mobile phone for detail if needed).
-
Page 17: Technical Specifications
Impedance 10k Ohm GENERAL Power Supply 12V DC (10.8-15.6V allowable) Speaker Impedance 4 or 8 ohm Output power 45W x 4CH Fuse Note: Specification and the design are subject to possible modification without notice due to improvements. FCC ID: 2ABH3-DV5XXX Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. IM-DV5700-Rev5.0 - PAGE 16... - Page 18 IM-DV5700-Rev5.0 - PAGE 17...
- Page 19 IM-DV5700-Rev5.0 - PAGE 18...
- Page 20 Furrion Innovation Center & Institute of Technology ● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792 ©2007-2018 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries.
