Section 1 - Product Overview

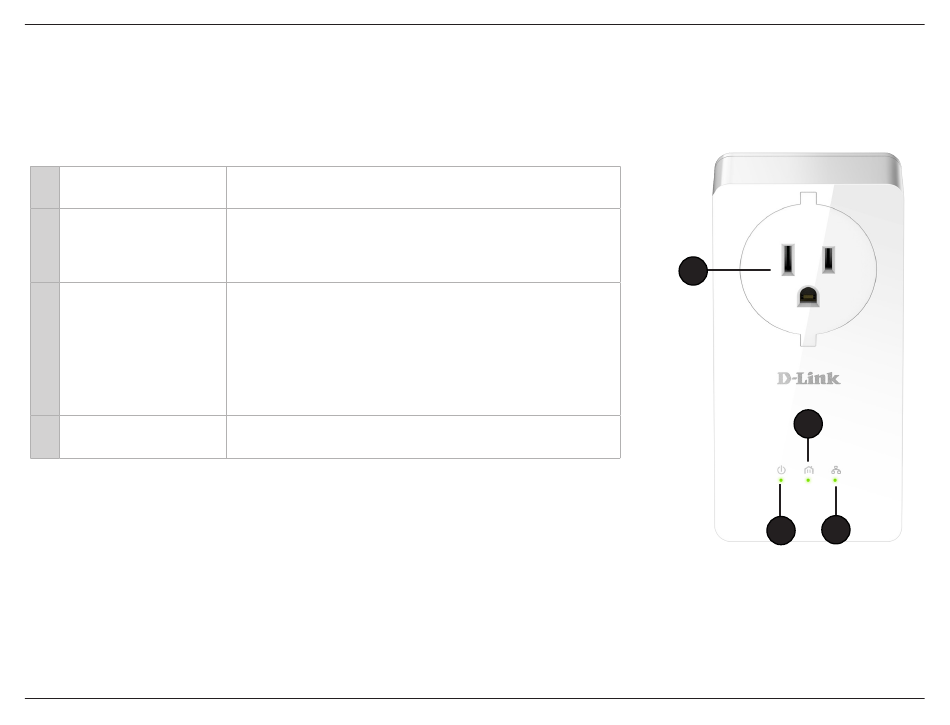

1 Passthrough Outlet
2 Power LED
3
PowerLine LED
4
Ethernet LED
DHP-P701AV User Manual

Hardware Overview

Plug in and power devices. This outlet contains a noise filter to help
limit interference with your Powerline network.
• Solid: The device is receiving electrical power.
• Blinking: The device is in power saving mode or in the Simple
Connect process.
• Off: The device is not receiving electrical power.
• Solid: The device is connected to a Powerline network.
• Off: The device has not found any other compatible Powerline
devices using the same encryption key.
The color indicates the Powerline link rate:
• Green: The Powerline link rate is best.
• Amber: The Powerline link rate is better.
• Red: The Powerline link rate is good.
• Solid: The Ethernet port is linked.
• Off: There is no Ethernet connection.

LEDs

1
3
4
2
6
