D-Link PowerLine AV2 2000 User Manual page 9

Section 2 - Hardware Installation

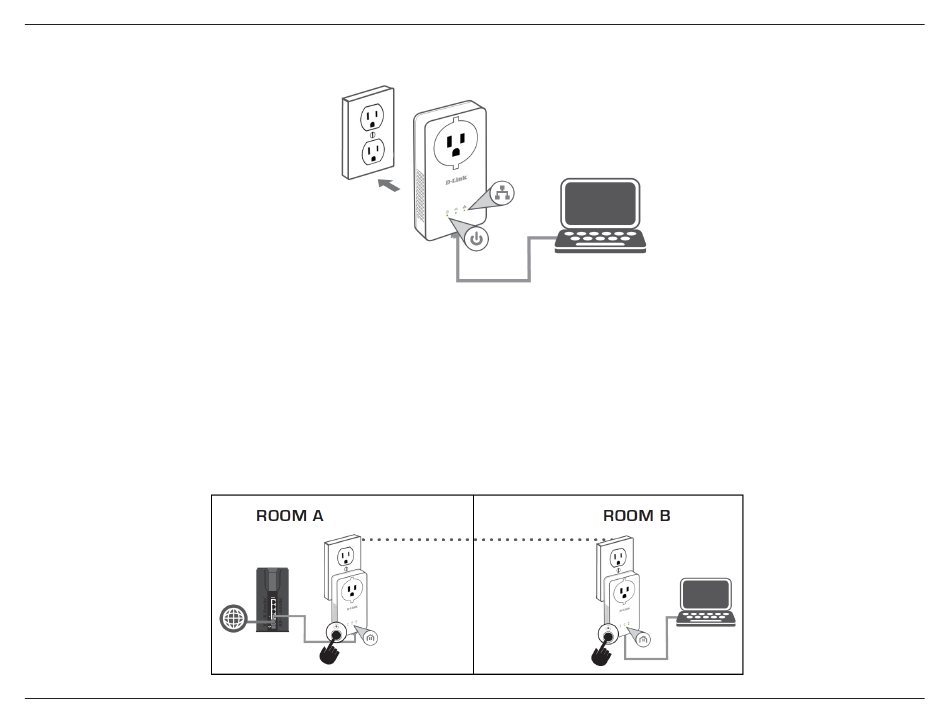

2. Plug in the other DHP-P700AV adapter in the room that you want to extend your network. The Power LED will turn on.
3. Verify that the PowerLine LEDs on both adapters are lit. If they are, the adapters are connected. If not, try another outlet.
4. (Optional) To secure your network, press the Simple Connect button (on the bottom) for 1 second on one of the adapters. The Power LED will start
to blink. Then, within two minutes, press the Simple Connect button on the other adapter for 1 second. Once the Power LEDs stop blinking, verify
that the PowerLine LED is lit on both adapters. This indicates that your adapters are properly connected to each other.
DHP-P701AV User Manual
DHP-P700AV
Simple Connect Button
(On bottom)
Computer
Simple Connect Button
(On bottom)
9
