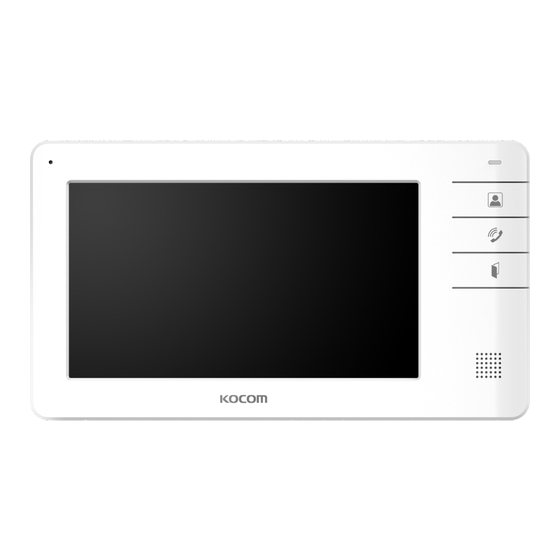

KCV-S701EBC MANUAL
COLOR HANDSFREE VIDEOPHONE
■7 inch color digital LCD screen
■Call & Communication with a visitor
■Expandable up to 2 door cameras and 4 indoor units
: Monitor with sub-interphone (KIP-32GU)
■Video and Audio monitoring of the door cameras
■Operating condition display with icons (OSD)
■Door open
Thank you for purchasing our product.
Read safety instructions and manual carefully before using the product.
[7 " Digital Color LCD Videophone]
www.kocom.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KOCOM KCV-S701EBC
Summary of Contents for KOCOM KCV-S701EBC

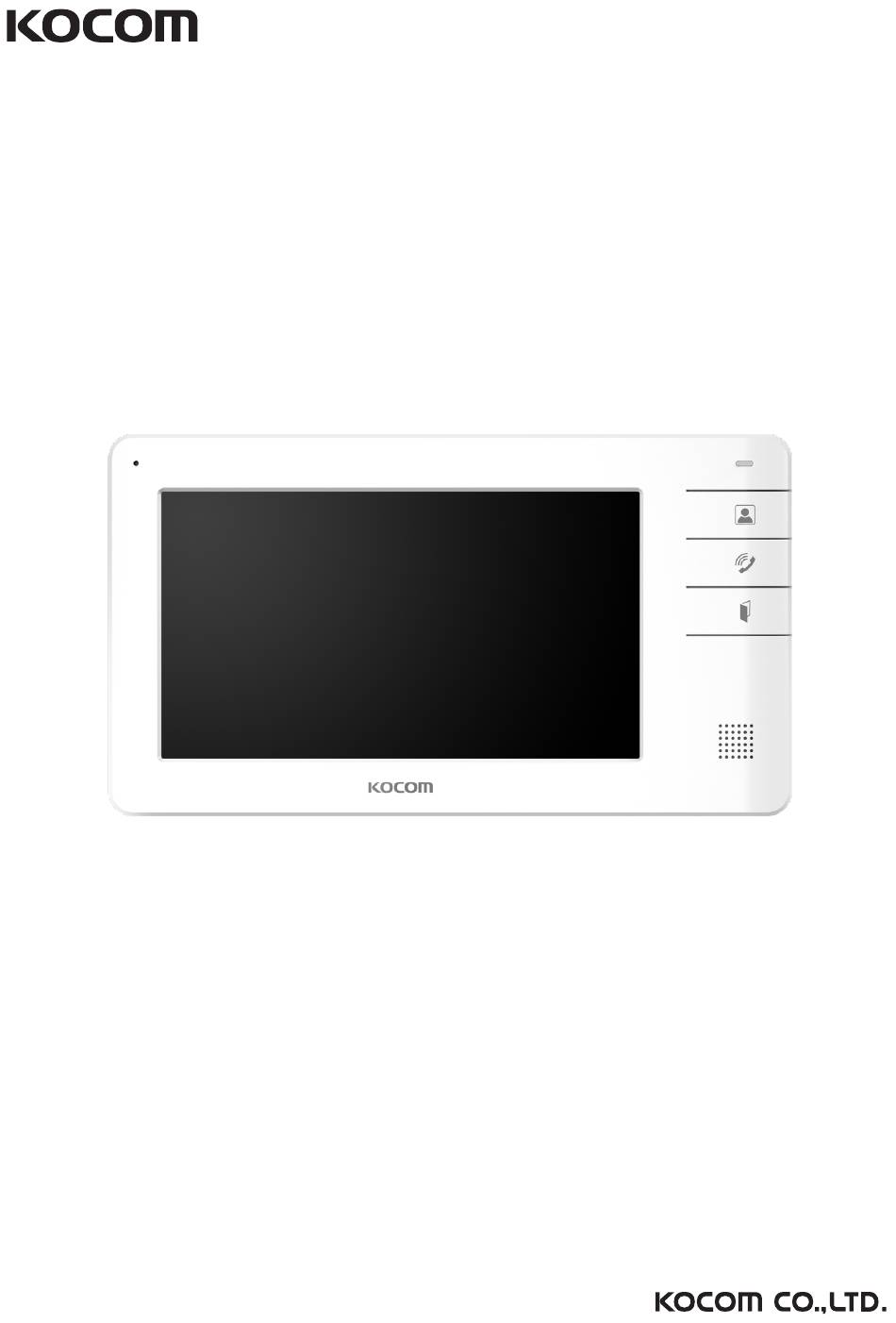

- Page 1 KCV-S701EBC MANUAL [7 " Digital Color LCD Videophone] COLOR HANDSFREE VIDEOPHONE ■7 inch color digital LCD screen ■Call & Communication with a visitor ■Expandable up to 2 door cameras and 4 indoor units : Monitor with sub-interphone (KIP-32GU) ■Video and Audio monitoring of the door cameras ■Operating condition display with icons (OSD)
-
Page 2: Cautions For Safety
Cautions for safety For safe use, please stick to the following cautions. ·Please, save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. ·If you need assistance with the set-up or operation, please contact with A/S center. - Page 3 Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
-
Page 4: Installation Location
Installation location ■ Monitor installation location ■ Camera installation location ·Standard monitor installation height ·Camera installation in height Standard is about 1,500mm where screen camera installation height is when center is at eye level. lens is about 1,400mm above the floor. In this case, wall-hanging metal In this case, camera stack center center (center of piping) is 1,450mm... -
Page 5: Components Of Product
3Pin cable for door opener x 1ea PM M3X6mm 1EA H2 "L" Wrench 1EA Rubber stopper of regulating hole Specifications Model No. KCV-S701EBC(DC) KCV-S701EBC(AC) Power Source DC 15V 1.5A AC 100-240V ~ 50Hz/60Hz Power Consumption 1W(±20%)(On Stand by), 7.5W(±20%)(In load) Operating Temperature 0℃... -
Page 6: Name And Functions Of Each Part
Name and functions of each part ■ Monitor ·Front ·Side ·Back < KCV-S701EBC(DC) > < KCV-S701EBC(AC) > ① MIC ⑥ LCD Monitor ② Power LED ⑦ Speaker ③ Monitoring button ⑧ Jog switch ④ 1 - Call button : Connect talk with the door camera ⑨... -
Page 7: Product Connection Diagram
Product connection diagram ■ System configurations_Push button lobby phone KCV-S701EBC DOOR CAMERA KCV-S701EBC KC-S81MU 4WIRE 2WIRE 6WIRE 6WIRE KCV-S701EBC KCV-S701EBC Door opener(DC) external power input 6WIRE 6WIRE 2WIRE KCV-S701EBC 6WIRE LOBBY PHONE 6WIRE KVL-WR06 1. When lobby phone use KVL-WR06 with 6 call buttons, the system can max connect 6 monitor (Guard phone included). - Page 8 ■ Cable requirement - Based on distance from lobby phone to monitor ※ When UTP CAT.5 wiring is used, the total length of wiring (a,b,) between lobby phone and monitors / guard is limited to 150m. KCV-S701EBC KCV-S701EBC 6WIRE 6WIRE...
-
Page 9: Instructions For Operation
Instructions for operation ■ Communication from door camera & Door open Press the call button Idenitify the visitor from Push the [Talk] button While [Talk] on. Push to make a call monitor. and communicate with [Door Open] and the door (Standby time : 30sec) the door camera. - Page 10 Instructions for operation ■ Extension calling & Receiving function ※ In case of extended monitors or interphones, you can perform extension calling. To perform extension calling, you must set each device's numbering. Press the ' ' button When pressing a ' ' button, that once to internal call.
-
Page 11: Menu Setup
Menu setup ■ Adjusting talking sound from door camera and lobby phone When talk is in progress, adjust the volume by controlling the jog switch up and down. (Variable range : 1~4) ■ Adjusting brightness When monitoring is in progress, adjust the screen 'Brightness / Color / Contrast' by controlling the jog switch up and down. (Variable range : 1~10) ■... -
Page 12: Warranty Card
2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
