7inch Videophone Manual
[KCV-S701EBC]
Manual for Operation and Installation

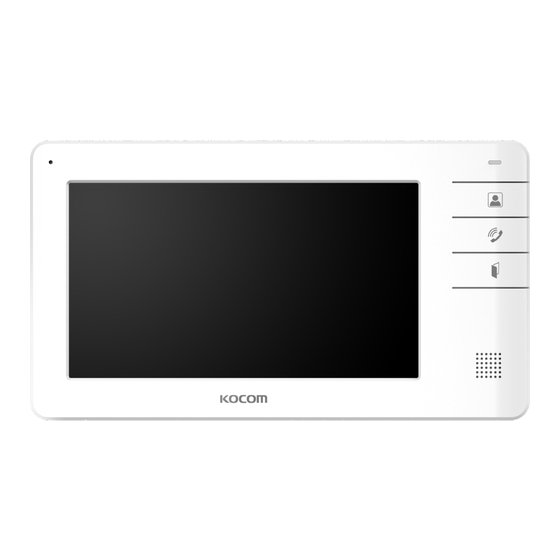

- 7 inch color digital LCD screen
- Call & Communication with a visitor
- Expandable up to 2 door cameras and 4 indoor units
: Monitor with sub-interphone (KIP-32GU)
- Video and Audio monitoring of the door cameras
- Operating condition display with icons (OSD)
- Door open
Thank you very much for purchasing
KOCOM product. please read
this manual thoroughly to ensure
correct usage, before operation
Videophone
KCV-S701EBC
QR
Scan
for
video instructions
www.kocom.com
Advertisement
Table of Contents
Related Manuals for KOCOM KCV-S701EBC
Summary of Contents for KOCOM KCV-S701EBC
- Page 1 - Video and Audio monitoring of the door cameras - Operating condition display with icons (OSD) - Door open Thank you very much for purchasing Scan KOCOM product. please read this manual thoroughly to ensure video instructions correct usage, before operation...
-
Page 2: Table Of Contents
Contents Cautions for safety Monitor_Installation Monitor_Components of Product Monitor_Name of Each Part Door Camera_Installation Door Camera_Components of Product Door Camera_Name of Each Part Product Specifications / Wiring Diagram_Camera mode Terminal Wiring Connection - 2 Camera & 4 Monitor & 4 Interphone Product Connection Diagram - System Configurations_Push Button Lobby Phone - System Configurations_Keypad Lobby Phone... -
Page 3: Cautions For Safety
Cautions for safety Warning For safe use, please stick to the following cautions. Warnings for Usage · Please, save this manual after reading these instructions carefully. · Read and understand all instructions to set up rightly. · Do not give any damage, break and modify the plug. Overloading, heating, pulling causes the damage. ·... -
Page 4: Monitor_Installation
Main body Screw SIDE BACK BACK < KCV-S701EBC(DC) > < KCV-S701EBC(AC) > ■ Directly connecting cut-off power cord with power wire 1) Do not do such electric work on your own. Such work would require highly experienced expert with proper license. -
Page 5: Door Camera_Installation
Door Camera_Installation Door Camera_Components of Product ■ KC-S81MU ■ Wall hanger frame ■ Sun visor (Option) ■ Hood cover ■ Angle supporter ■ KC-W81U Bottom base of one flush box Center of lens ■Screws ■Screws ■ Wire Screw x 1ea Eye reference point (mm) "L"... -
Page 6: Product Specifications / Wiring Diagram_Camera Mode
Product Specifications Terminal Model No. KCV-S701EBC(DC) KCV-S701EBC(AC) [ KCV-S701EBC ] Monitor Back Power Source DC 15V 1.5A AC 100-240V ~ 50Hz/60Hz 1W(±20%)(On Stand by), 7.5W(±20%)(In load) Power Consumption Operating Temperature 0℃ ~ +40℃ Display 7 Inch color LCD Communication System... -
Page 7: Wiring Connection - 2 Camera & 4 Monitor & 4 Interphone
INTERCOM FOR EX-MONITOR EX-MONITOR EX-MONITOR KIP-32GU BACK VIEW Door Adaptor Camera 2 BACK VIEW X X X KIP-32GU BACK VIEW DC adaptor MASTER Normal Open Adaptor X X X SLAVE 1 X X X SLAVE 2 [ KCV-S701EBC(DC)_Back ] SLAVE 3... -
Page 8: Product Connection Diagram
Product Connection Diagram - System Configurations_Push Button Lobby Phone Product Connection Diagram - System Configurations_Keypad Lobby Phone DOOR CAMERA VIDEOPHONE DOOR CAMERA VIDEOPHONE KC-S81MU KCV-S701EBC KC-S81MU KCV-S701EBC Wire Wire Wire Wire Wire Wire Wire Door opener(DC) Wire Door opener(DC) external power input... -
Page 9: Cable Requirement - Based On Distance From Lobby Phone To Monitor
■ Communication from door camera & Door open total length of wiring (a,b) between Lobby phone and Monitors / Guard phone VIDEOPHONE is limited to 150m. KCV-S701EBC CARD GUARD PHONE LOBBY PHONE KVL-WR06 KGP-W701U Press the call button Idenitify the visitor from... -
Page 10: Menu Setup
Instructions For Operation Menu Setup ■ Extension calling & Receiving function ■ Adjusting talking sound from door camera and lobby phone While talk is in progress, adjust the volume by controlling the jog switch up and down. (Variable range : 1~4) ※ In case of extended monitors or interphones, you can perform extension calling. -
Page 11: Warranty Card
2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period : a.
