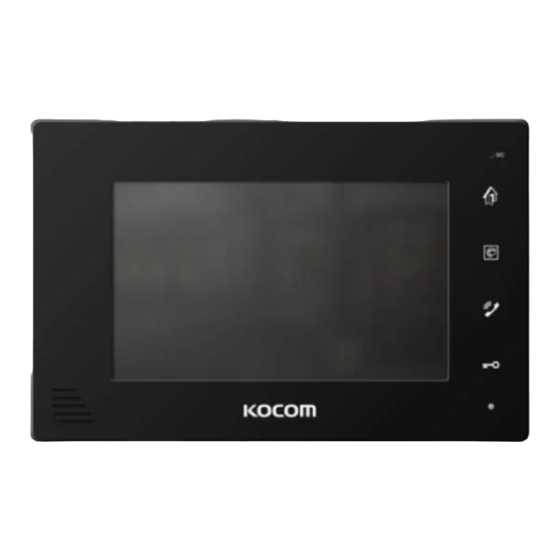

KCV-D372(D1) MANUAL
Handsfree Videophone
7" Digital LCD Screen (NTSC/PAL)
●
LCD OSD Menu
●
Room to Door Communication and Monitoring
●
Ultra Low Power Consumption
●
※ Caution
KCV-D372(D1) MONITOR IS ONLY COMPATIBLE WITH OUTDOOR CAMERA KC-MC11(D1)/MC32(D1)
[7" Digital Color LCD Videophone]
2 WIRE COLOR
Surface Mount Installation
●
Door Opener Connectable from Either Monitor
●
or Camera(DC)
Connection up to 1 Door Camera and 2 Monitors
●
www.kocom.com
1
Advertisement
Table of Contents
Related Manuals for KOCOM KCV-D372(D1)
Summary of Contents for KOCOM KCV-D372(D1)
- Page 1 KCV-D372(D1) MANUAL [7" Digital Color LCD Videophone] 2 WIRE COLOR Handsfree Videophone 7" Digital LCD Screen (NTSC/PAL) Surface Mount Installation ● ● LCD OSD Menu Door Opener Connectable from Either Monitor ● ● Room to Door Communication and Monitoring or Camera(DC) ●...
-
Page 2: Cautions For Safety
Cautions for safety For safe use, please stick to the following cautions. ·Please do not dispose this manual after reading the instructions carefully. ·Please read all instructions to set up rightly. ·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases. The important marks in the manual. - Page 3 Safety Instructions, Warnings and Cautions of Each System ·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom. ·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
-
Page 4: Installation Location
Installation Location ■ Monitor installation location ■ Camera installation location ·Recommended installation ·Recommended installation height is about 1,500mm height of door camera is where screen center is at where lens is about 1,400mm eye level. In this case, above the floor. In this case, wall - hanging metal center camera stack center (Buried (center of piping) is 1,450mm... -
Page 5: Components Of Product
Components of Product ■Wire ■Monitor ■Wall hanger ·DC 12.4V Adapter ·DC Door Lock Wire ■Screws 4X25 mm 3X8 mm ·Wall Hanger Fixing Screws ·Screw for fixing monitor ■Door Camera [KC-MC11(D1)] [KC-MC32(D1)] Screws Cover (2EA) Wall to bracket screws Angle Flush Mount Sun Visor Supporter Bracket... -
Page 6: Product Functions And Features
Name and Functions of each part ■ Monitor ·Front ·Back ⑨ Call volume adjustment switch : Adjusting call sound in 3 steps [high, medium, low] to use. ( In shipment : [medium] ) ① Monitor screen (LCD) : Output of image sent from camera. ※... -
Page 7: Camera Installation
Camera installation ■ KC-MC32(D1) CAMERA MONITOR [KC-MC32(D1)] ■ KC-MC11(D1) CAMERA MONITOR [KC-MC11(D1)]... -
Page 8: Product Connection Diagram
Product connection diagram ■ If you connect other types of cable in the middle of communication cable wiring between monitor/camera, monitor/extension monitor or divide parallel 2 wick to 1 pattern, image screen may shake or quality may deteriorate. Also, wire not used in communication wiring must be deleted or connect product. ■... -
Page 9: Instructions For Operation
Instructions for operation ■ Calling from camera ※ Push call button ※ You can hear cal l sound from ※ Push monitor button to convert ※ Push open door button to open ※ Call ends when you push open from camera. all connected monitors, and to monitor tool f o r 60 seconds. -
Page 10: Warranty Card
2) If this product breaks down during proper use as a result of product defect, KOCOM will repair it within one year from date of purchase free of charge. 3) The following cases will be subject to charge, even during warranty period: a.
