PowerSmart HB2802A - Snow Blower Manual

TECHNICAL DATA

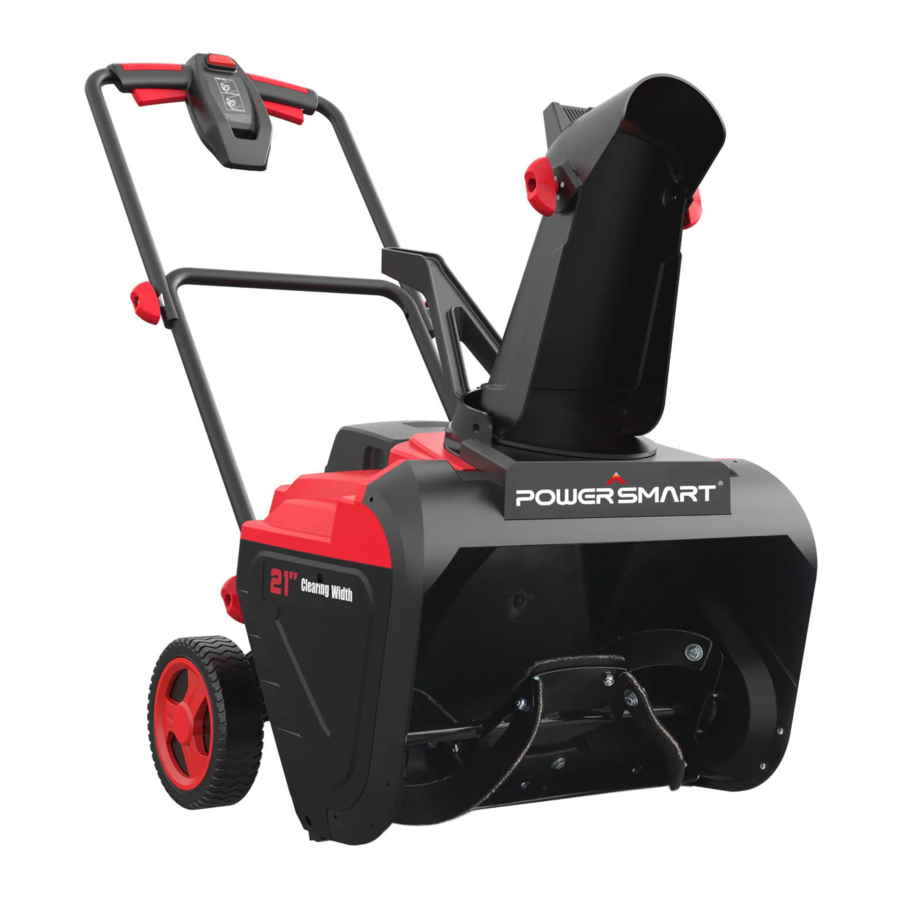

21 inch Single Stage Cordless Snow Blower

SAFETY INFORMATION

Please keep this manual available to all users during the entire life of the snow blower.

This manual contains special messages to bring attention to potential safety concerns, snow blower damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage.

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool.
Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION.
May be used in conjunction with other symbols or pictographs.

The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage.

Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SYMBOL INSTRUCTION

Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Safety symbols that may appear on this product:

	Safety Alert	Indicates a potential personal injury hazard.
	Eye Protection	Always wear safety goggles or safety glasses with side shields and a full-face shield when operating this product.
	Ear Protection	For protection against injury, wear ear defenders.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	DANGER — Keep Hands Away from the Impeller	Do not use hands to unclog the chute.
	WARNING - ROTATING BLADES	Keep hands out of inlet and discharge openings while machine is running, there are rotating blades inside.
	Keep Feet Out of Impeller	Keep feet away from rotating impeller
	WARNING!	Always turn the machine OFF and remove the safety key before conducting inspection, cleaning, and maintenance.
	WARNING!	Indoor use only. Only use battery charger indoors.
	CAUTION!	CAUTION! Beware of stones and other foreign objects that could be thrown from the appliance.
	WARNING!	Keep bystanders and children a safe distance (at least 33 ft/10 m) away from the work area.
	Foot Protection	Wear protective gloves and non-slip footwear when using the machine and handling debris.
	STOP	The rotating part will continuously run for several seconds after you turn off the machine.
	Wet Conditions Alert	Do not expose to rain or use in damp locations.
IPX4	Ingress Protection Degree	Protection from splashing water
V	Volt	Voltage
A	Amperes	Current
Hz	Hertz	Frequency (cycles per second)
W	Watt	Power
min	Minutes	Time
	Direct Current	Type or a characteristic of current

To ensure safety and reliability, all repairs should be performed by a qualified service technician.

SAFE OPERATION PRACTICES FOR SNOW BLOWER

This snow blower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury.

FOR ALL SNOW BLOWERS

• Do not use on graveled surface.
• Keep Children Away – All visitors should be kept a safe distance from work area.
• Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts.
• Wear rubber boots when operating the snow blower.
• Keep hands away from moving parts.
• Keep guards in place and in working order.
• Don't Force Snow Blower – It will perform better and safer at the rate for which it was designed.
• Don't Overreach – Keep proper footing and balance at all times.
• If the snow blower strikes a foreign object follow these steps:
  1. Stop snow blower. Release the switch.
  2. Remove the battery pack and safety key.
  3. Inspect for damage.
  4. Repair any damage before restarting and operating the snow blower.
• When not in use, snow blowers should be stored indoors in dry, locked-up place – out of reach of children.

TRAINING

• Read, understand and follow all instructions on the machine and in the manual before operating this unit. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.
• Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
• Keep the area of operation clear of all persons, particularly small children.
• Exercise caution to avoid slipping or falling, especially when operating the snow blower in reverse.

PREPARATION

• Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign objects.
• Do not operate the equipment without wearing adequate winter garments. Avoid loose-fitting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.
• Never attempt to make any adjustments while the motor is running (except when specifically recommended by manufacturer).
• Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.

OPERATION

• Do not put hands or feet near or under rotating parts. Keep clear of the discharger opening at all times.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
• After striking a foreign object, stop the motor, remove the battery pack, thoroughly inspect the snow blower for any damage, and repair the damage before restarting and operating the snow blower.
• If the unit should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble.
• Stop the motor whenever you leave the operating position, before unclogging the auger assembly housing or discharge chute, and when making any repairs, adjustments or inspections.
• When clearing, repairing or inspecting the snow blower, stop the motor and make certain the auger assembly and all moving parts have stopped. Remove the battery pack to prevent someone from accidentally starting the motor.
• Exercise extreme caution when operating on slopes.
• Never operate the snow blower without proper guards and other safety protective devices in place and working.
• Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.
• Do not overload the machine capacity by attempting to clear snow at too fast a rate.
• Disengage power to the auger assembly when snow blower is transported or not in use.
• Use only attachments and accessories approved by the manufacturer of the snow blower (such as rubber paddles, scraper bar and drive belt).
• Never operate the snow blower without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.
• Use only with the battery pack and chargers listed below:

CLEARING A CLOGGING DISCHARGE CHUTE

Hand contact with the rotating auger assembly inside the discharge chute is the most common cause of injury associated with snow blowers. Never use your hand to clean out the discharge chute. To clear the chute:

• SHUT THE MOTOR OFF!
• Wait 10 seconds to be sure the auger assembly blades have stopping rotating.
• Always use a clean-out tool, not your hands.

MAINTENANCE AND STORAGE

• Check all bolts or fasteners at frequent intervals for proper tightness to be sure the equipment is in safe working condition.
• Always refer to operator's manual for important details if the snow blower is to be stored for an extended period.
• Maintain or replace safety and instruction labels, as necessary.
• Run the machine a few minutes after blowing snow to prevent freeze-up of the auger assembly.
• Optimal charging temperatures are between 32°F (0°C) and 122°F (0°C - 50°C).

SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others who may use this tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possibly injury.

KNOWING YOUR SNOW BLOWER

Please use the illustration below to familiarize yourself with the location and function of the components that control of your snow blower.

1. Auger Control Trigger
2. Safety Button
3. Knob
4. Lower Handle
5. Wheel
6. Auger
7. Deck
8. Chute
9. Chute Control Handle
10. Upper Handle
11. Battery Box
12. Battery Pack
13. Charger
14. Clean Out Tool

Safety Button
Located on the right of the panel, the safety button must be pressed down before motor can be started.

Auger Control Trigger
Located on the right side of the panel, the Auger Control Trigger is used to engage and disengage the augers. Squeeze the Auger Control Trigger to engage the augers; release to disengage the augers.

Clean-out Tool
The chute Clean-out Tool is conveniently fastened to the rear of the auger housing with a mounting clip. It is used to clean the chute assembly and chute opening when snow and ice become lodged.

Never use your hands to clear a clogged chute assembly. Shut off machine and remain behind handles until all moving parts have stopped before unclogging.

OPERATION

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

To Install Battery Pack

When not in use, battery pack should be stored in an enclosed area where the temperature will not drop below -4°F (-20°C). Optimal charging temperatures are between 32°F (0°C) and 122°F (0°C - 50°C).

If any parts are broken or missing, do not attempt to attach the battery pack to the snow blower or operate the snow blower until the broken or missing parts are replaced. Failure to do so could result in serious injury.

1. Open the battery compartment cover and slide the battery vertical down as Fig. 2 shows.

   Fig.2
2. Insert the safety key into the slot and close the battery compartment cover as Fig. 3 shows.

   Fig.3

To Remove Battery Pack

1. Remove safety key.
2. Press and hold the battery latch button at the bottom of the battery pack.
3. Remove battery pack from the product.


NOTICE: Make sure that the latch on the snow blower snaps into place and that the battery pack is secured to the unit before starting operation.

To Start Snow Blower

1. Install the battery pack to snow blower.
2. Insert safety key and close cover.
3. Push the safety button and squeeze the auger trigger at same time. And you can release safety button after auger turning.


To Stop Snow Blower

1. Release the auger trigger.
2. Remove safety key.
3. Remove the battery pack and store in a secure location out of the reach of children.

The thrower will turn off automatically after 5 seconds of stop operation.

Adjusting Chute

The chute can be adjusted to change both the direction and the distance of the discharged snow to assist you in moving snow away from one area and placing it in another.

The throwing distance of the snow blower is adjusted by moving the chute deflector up or down.

1. Loosen the knobs to raise or lower the deflector to the desired degree of snow you wish to throw. Tighten the knobs to secure the deflector. (Fig.6) The direction of snow removal can be adjusted up to 180°.

   Fig.6
2. You can adjust chute direction by pushing the chute control handle in chute. (Fig.7)


Do not force the chute so far forward that a gap appears between the deflector and the chute itself. Snow or other debris could be thrown through the gap and back at the operator, resulting in serious personal injury.

Do not adjust the chute deflector while the bail switch is engaged. Always release the bail switch before adjusting the chute deflector.

To Clear the Chute

1. Shut the motor and auger off!
2. Remove the battery pack from the snow blower.
3. Wait 10 seconds to be sure the auger has stopped rotating.
4. Always use a clean-out tool, such as a wood rod or other clearing tools that are commercially available. Do not use your hand.

Battery Charge Level Indicator

The battery pack are equipped with a push button for checking the charge level. Simply press the push button to read off the battery charge level from the LEDs of the battery indicator:

NOTE: If the charge level button does not appear to be working, place the battery pack on the charger and charge as needed.

Charging the Battery Pack

1. Pull the lock button on the battery to pull the battery pack out of the equipment.
2. Insert the charger's plug into the electrical wall outlet.
3. Place the battery pack into the charger by sliding the pack as shown to lock it into position.
4. When charging is complete, remove the battery from the charger by pulling the push lock button.


NOTE: Optimal charging temperatures are between 32°F (0°C) and 122°F (0°C - 50°C). If there is something wrong with the battery. Contact customer service center at for assistance.

OPERATING TIPS

Never use a snow blower on frozen lakes, rivers, or similar surfaces. Death or serious injury could occur if the ice breaks.

Never use the snow blower on a rooftop or other unstable surface, which can result in death or serious personal injury.

Do not use snow blower on ice, which can cause the operator to slip and fall, resulting in possibly serious personal injury.
Do not wear loose clothing, scarves, or jewelry. They can be caught in moving parts and cause death or serious personal injury.

Keep all snow discharge pointed away from all electrical devices to reduce the risk of electrocution or electric shock.

Never point the snow blower or discharge chute in the direction of people or pets. Thrown snow or other objects can cause serious personal injuries.

Make sure that the area to be cleared is free of stones, sticks, wires, gravel, and other objects that could be accidentally thrown by the snow blower in any direction and cause serious personal injury to the operator and others.

• If the unit comes in contact with any type of obstruction or debris during use, stop the snow blower, remove the battery pack, remove the obstruction, and inspect the unit carefully for damage before proceeding.

Never reach into the discharge chute or place any body part in front of the snow blower when the unit is operating or when the battery pack are installed. Always ensure all moving parts have stopped and the battery pack have been removed before clearing any obstructions. Failure to follow these instructions can result in serious personal injury.

• Take notice of the direction of the wind before beginning. When possible, discharge snow in the same direction as the wind to prevent snow from being thrown back into your face.
• Some parts of the snow blower can freeze under extreme weather conditions.
• Do not attempt to operate the unit with frozen parts.
• When finished, allow the motor to run for an additional few minutes to prevent moving parts from freezing, then turn the chute rotation handle back and forth several times to free it from any ice buildup. Make sure to clean off any snow and ice from the base of the chute.
• In snowy and cold conditions, some controls and moving parts may freeze. Do not use excessive force when trying to operate frozen controls. If you have difficulty operating any control or part, start the machine as "STARTING/STOPPING THE SNOW BLOWER" section and let it run for a few minutes.

MAINTENANCE

To avoid serious personal injury, always remove the battery pack from the snow blower before cleaning or performing any maintenance.

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

NOTICE: Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.

GENERAL MAINTENANCE TIPS

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc. come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which can result in serious personal injury.

LUBRICATING THE MACHINE

All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required.

AUGER OR IMPELLER JAMS

The auger and impeller rotate at fast speeds which can cause harm or even amputation to a person's body parts. Even if you do not see the auger or impeller rotating, it may start at any time if the machine is running. Remove the Safety Key before cleaning the jams.

1. Always turn OFF the machine before attempting to clear any clogs or jams.
2. Keep hands and feet away from rotating parts while the machine is running.
3. Do not wear loose fitting clothing that can become entangled in rotating parts.
4. Wait until the auger and impeller have come to a full stop.
5. Clear any visible jams using the clean out tool attached to your machine.

   DO NOT try to clear jams with your hands or feet.

TROUBLESHOOTING

NOTE: Please contact the customer service for any questions.

EXPLODED VIEW AND PARTS LIST

Auger Housing Assembly

Panel Assembly

Customer Service

QUESTIONS? PROBLEMS?
Please contact our Customer Service Dept. with any questions and/or comments, either by Email:
support@amerisuninc.com,
support@powersmartusa.com
or Toll Free at (872) 314-0005.
We are available Mon-Fri 9am-5pm EST to help solve any issues that you might encounter.

Website: www.powersmartusa.com
