Summary of Contents for Arada Hamlet Solution S4

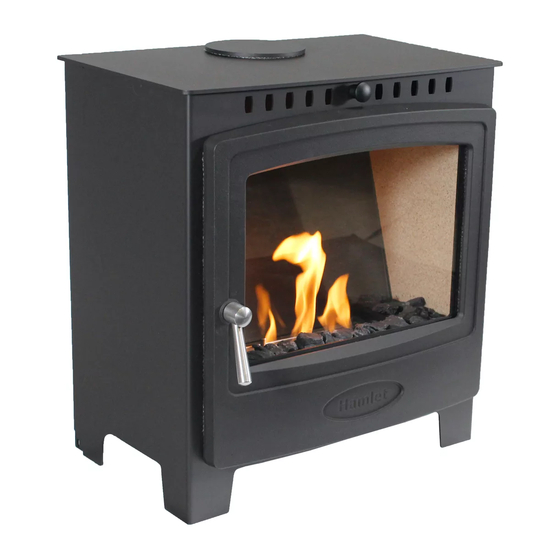

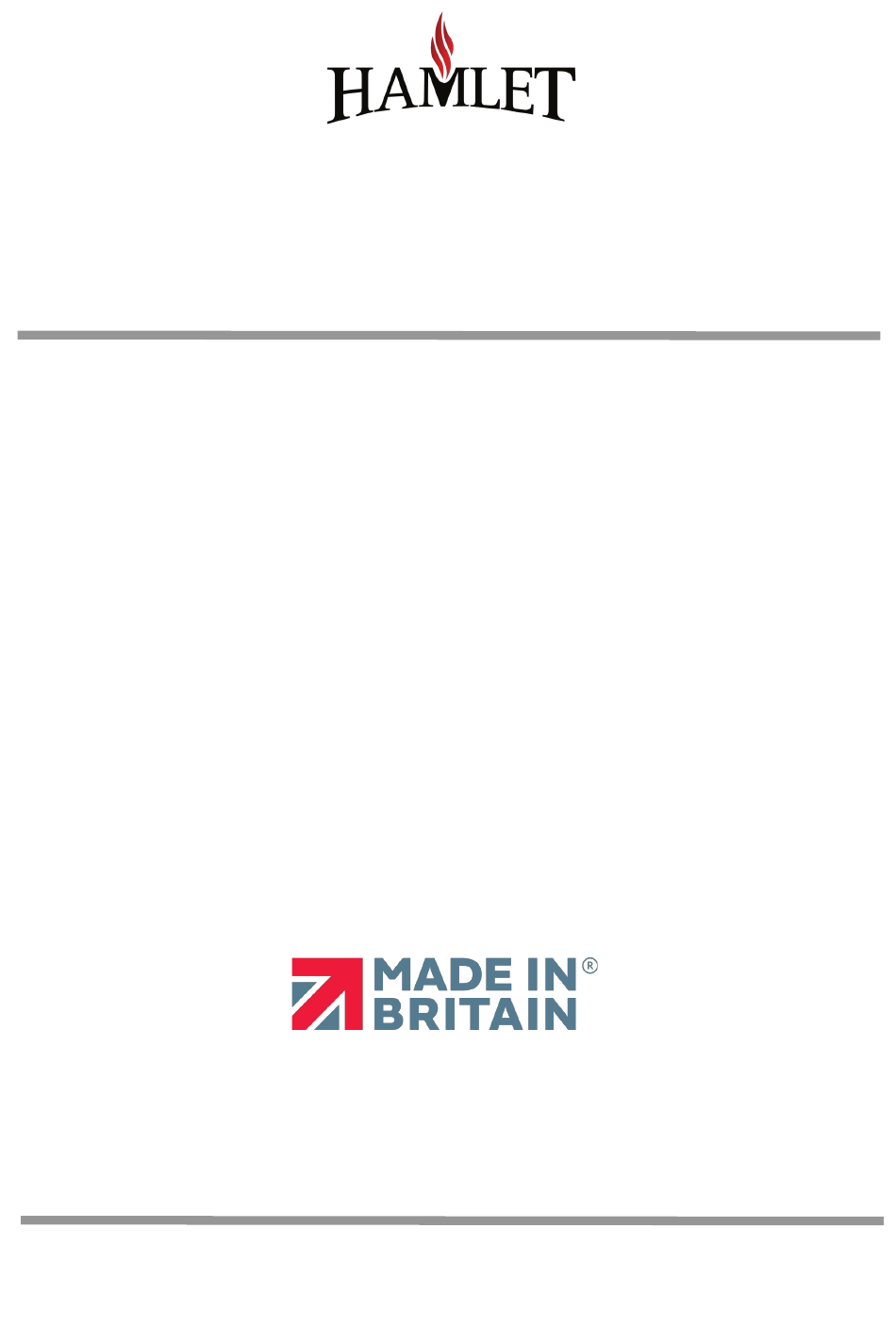

- Page 1 Solution (S4) Bio-Ethanol Stove User Guide PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE DIN EN 4734-1 : 2011 TüV Approval BK 778 Rev 02 ISSUE DATE : 14/05/2024...
- Page 2 Please ensure that you read these instructions in full and understand them before operating your stove. Arada has a policy of continuous product development and therefore we reserve the right to amend specifications without prior notice. Hamlet is a brand name of Arada Ltd...
- Page 3 Solution S4 Bio Stove User Guide NOTE : Initial Unpacking (Door Opening) Your appliance is supplied with the door closed and handle removed for shipment. The handle is packed and attached to the base of the packaging below the appliance. Therefore to fit the handle - Lift appliance from base pallet.
-
Page 4: Table Of Contents
Solution S4 Bio Stove User Guide Contents 1. Identifying your stove 1.1 Identifying parts & terminology of your stove—External..…….. 1.2 Identifying parts & terminology of your stove—Internal ………. 2. Warnings 2.1 Important Safety Warnings ………………………………………. 2.2 General Safety Warning …………………………………………. 2.3 Warnings …………………………………………………………... -
Page 5: Identifying Your Stove
Solution S4 Bio Stove User Guide 1. Identifying your stove 1.1 Identifying parts & terminology of your stove—External Hot Plate Mount Holes Hot Air Vent External Outer Casing Fire Door Handle Hot Glove (Packed Inside) Fire Door Assembly Operating Tool (Packed Inside) 1.2 Identifying parts &... -
Page 6: Warnings
Solution S4 Bio Stove User Guide IMPORTANT SAFETY INFORMATION 2. Warnings 2.1 Important Safety Warnings DO NOT DO NOT POUR FUEL MOVE ONTO OPEN APPLIANCE FLAME WHEN ALIGHT DO NOT DO NOT POUR FUEL PLACE ONTO HOT APPLIANCE BURNER NEAR SURFACE COMBUSTIBLE ITEMS... -
Page 7: General Safety Warning
Ignoring the warnings could lead to damage/injury to persons and/or property. Only use liquid Bioethanol fuel with an alcohol content of 96% or higher, DO NOT USE GEL fuels. Arada Ltd will not be responsible for any consequential or incidental loss or injury however caused. BK778... -
Page 8: Location & Installation
Solution S4 Bio Stove User Guide 3. Location & Installation 3.1 Initial Consideration When burning Bio-Ethanol, water vapour and CO2 (carbon dioxide) are produced in the combustion process. In a confined space, excessive CO2 can be harmful and therefore a minimum room size must be complied with, see table Fig.1. -
Page 9: Installation-Appliance Contents
Solution S4 Bio Stove User Guide 3.3 Installation—Appliance Contents During shipment of the product, components are packed inside of the appliance. Ensure, you have unpacked the following items: Image Description Quantity Hot Glove Operating Tool (Packed With Burner) Bolt Down Brackets 1x Pair &... - Page 10 Solution S4 Bio Stove User Guide Image Description Quantity Burner Surround Ember Chippings 1x Bag Eye Bolt Cable Tie Wall Plug 5” Hot Plate & Fixings Door Handle NOTE : AFFIXED TO BASE OF PACKAGING Page 10 BK778...
-
Page 11: Minimum Distance To Combustibles
Solution S4 Bio Stove User Guide 3.4 Minimum Distance To Combustibles 300mm 200mm 100mm 200mm Fig. 2. 3.5 Installation Fixing WARNING! If excessive force is used with the door open, this can result in the appliance becoming unstable and a risk spilling flammable fuel. Therefore the appliance MUST be securely fixed to either a solid wall or floor / hearth, to prevent movement and tipping during the opening and closing of the fire door, observing the minimum distances to combustible material as stated above. - Page 12 Solution S4 Bio Stove User Guide Vertical Measurement Fig. 3. Fig. 4. Diameter 8mm Hole, 50mm Depth Drill 8mm Hole & Insert Wall Plug Into Hole. Screw Eyelet Into Wall Plug. Attach Cable Tie Between Both Eyelets. Ensure Tie Has Tension. Fig.
-
Page 13: Bolt Down Bracket
Solution S4 Bio Stove User Guide 3.5.2 : Bolt Down Bracket (Alternative Fixing Method) Looking at the rear of the appliance, position one of the right angle bolt down brackets, as shown in Fig.6, below. Fix to the side, using the M5 screw provided, see Fig. 7 & 8. Repeat the above for the opposite side bracket. -
Page 14: Fitting The Hot Plate
Solution S4 Bio Stove User Guide 3.6 : Fitting The Hot Plate Fixing of the hot plate onto the canopy (top) of the appliance, is via the 3x square location holes cut into the top. Affix the rope seal to the circumference of the hot plate. Locate the hot plate studded fixings into the 3x square location holes. -
Page 15: Burner Placement
Solution S4 Bio Stove User Guide 3.7 Burner Placement NOTE : Before continuing the next steps, please ensure that you have removed all the internally packed items (as listed on contents pages 9 & 10) from the inside of the appliance. Step 1. - Page 16 Solution S4 Bio Stove User Guide 3.7 Burner Placement Continued. Step 2. Place the top closure plate on to the burner assembly. See Fig. 12. Closure Plate Fig. 12. Step 3. Take the burner surround and place inside the firebox, as shown in Fig. 13. Burner Surround Fig.
- Page 17 Solution S4 Bio Stove User Guide 3.7 Burner Placement Continued. Step 4. Take the bag of ember pieces and place on top of the burner surround. See Fig 14. There is no set pattern as these pieces are of random shapes. PLEASE NOTE : You do not need to use all the ember chips as surplus is supplied.
-
Page 18: Instructions For Use
Solution S4 Bio Stove User Guide 4. Instruction For Use 4.1 Filling The Burner Make sure the burner is completely extinguished and cooled down before filling. • Ensure that the closure plate is pushed fully toward the back of the burner. •... -
Page 19: Lighting The Burner
Solution S4 Bio Stove User Guide 4.2 Lighting The Burner Ensure that the closure plate is pushed fully toward the back of the burner. • Using a long match or we recommend a long reach gas lighter, ignite the burner. See •... -
Page 20: During Operation
Solution S4 Bio Stove User Guide 4.4 During Operation During operation, a odour may occur from the combustion process of burning the • Bio-Ethanol fuel, this is normal. Simply ventilate the room, by slightly opening a window or door, taking care not to prevent a draught to the burner. Alternatively, a scented wax melt proprietary candle can be used to mask the smell. -
Page 21: Technical Specification
If any part of the main body of the stove fails due to a manufacturing or material defect during the guarantee period that applies in respect of the relevant stove (as set out below), Arada will, at its sole discretion, repair or replace your Hamlet stove, for no charge. -
Page 22: General
10. The guarantee is only valid where any spare parts used are supplied by Arada or an approved Arada dealer. The use of spares other than those supplied by Arada Limited shall invalidate the guarantee. -
Page 23: Recycling
Solution S4 Bio Stove User Guide 7. Recycling 7.1 Packaging recycling The majority of the packaging components can be recycled, by the material components: • WOOD (Pallet) - Household quantities of wood can be taken to your local Household Waste Recycling Centre. CARDBOARD (Outer packaging) - Most local councils will collect cardboard as part •... - Page 24 Solution S4 Bio Stove User Guide AFFIX DUPLICATE STOVE DATA LABEL HERE Hamlet is a brand name of Arada Ltd Arada Ltd The Fireworks, Weycroft Avenue Axminster, Devon EX13 5HU United Kingdom www.aradastoves.com T: +44 (0)1297 632 050 www.aradastovesandspares.com T: +44 (0)1297 632 052...
