StyleLine
Fixed screen with bezel trim or borderless option

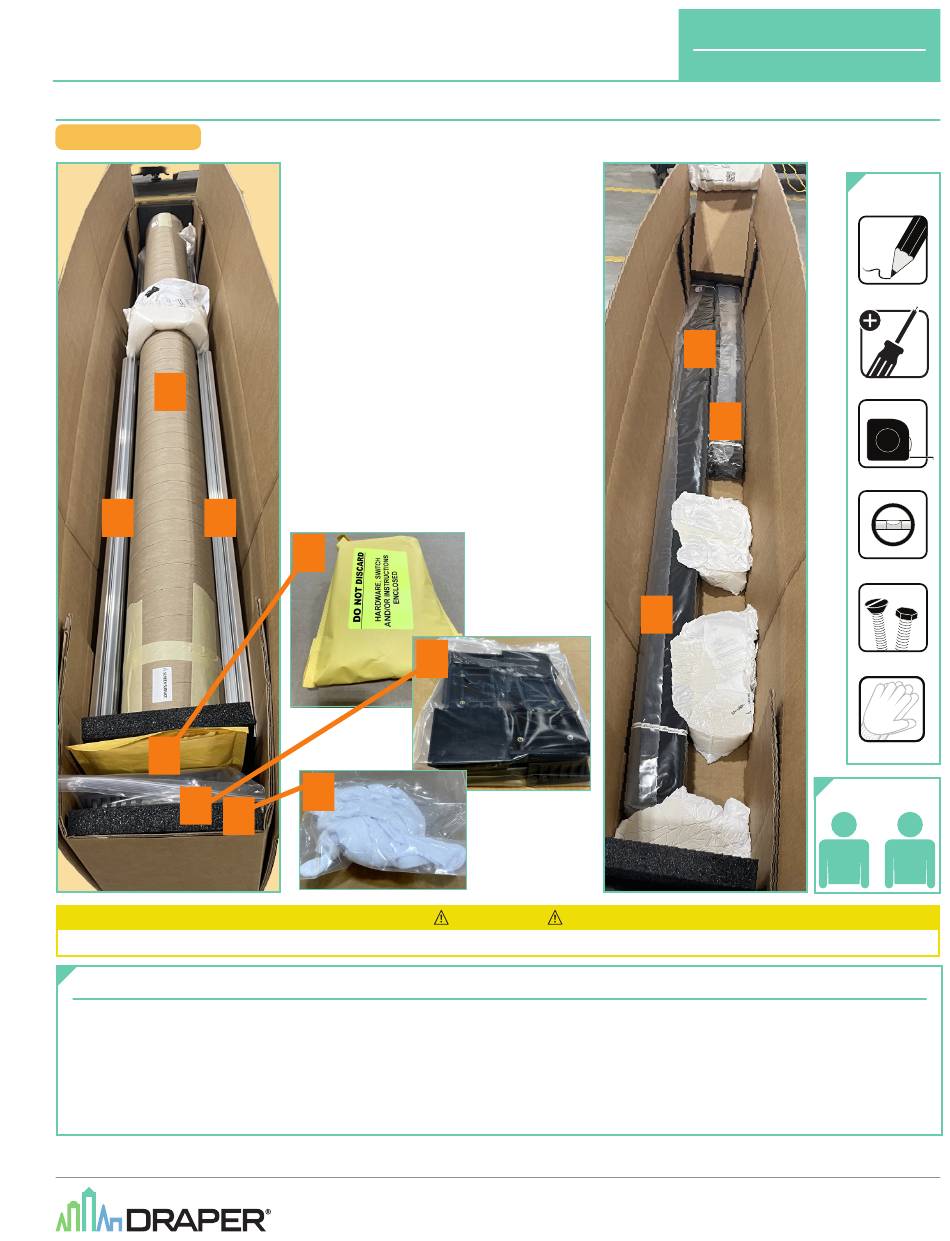

Overview - Packing & Unboxing
STYLELINE
1
5
5
2
3
4
Contents
Overview - Packing & Unboxing ..........................................................................1
PLEASE READ - Safety & Installation Information ...........................................2
Overview - Components .......................................................................................3
Section 1 - Assembling Screen Subframe ........................................................4
Section 2 - Hanging Brackets and Testing Screen Placement ......................5
1. Screen Surface
(packed in cardboard tube)
2. Hardware & Instructions
3. Corner Brackets
4. Gloves
(for handling screen surface)
5. Screen Subframe Pieces
6. Bezel Trim Pieces
2
3
4
Read and understand all warnings
CAUTION
before beginning installation.
(P. 2)
Section 4 - Attaching Screen Surface to Screen Subframe...........................7
Section 5 - Adjusting Screen Surface ................................................................8
Section 6 - Applying Adhesive Tabs ...................................................................8
Section 7 - Attaching Bezel Trim to Screen Subframe....................................9
Section 8 - Dimensions ................................................................................ 10-12
Section 9 - Mounting Bracket Dimensions .....................................................12
INSTRUCTIONS
INSTALLATION & OPERATION
6
6
6
If you have any difficulties installing or servicing your
StyleLine screen, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: StyleLine_Inst24
© 2024 All Rights Reserved
TOOLS
REQUIRED
PENCIL
SCREWDRIVER
TAPE MEASURE
LEVEL
HARDWARE
(by others)
WHITE GLOVES
RECOMMENDED
PERSONNEL
1
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper StyleLine 256001
Summary of Contents for Draper StyleLine 256001
-
Page 1: Table Of Contents
Section 9 - Mounting Bracket Dimensions .............12 If you have any difficulties installing or servicing your StyleLine screen, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: StyleLine_Inst24... -
Page 2: Please Read - Safety & Installation Information
Please Note: Installer may need to modify subframe to accommodate lighting features. Ensure that such modifications do not compromise structural integrity of the subframe or screen assembly. Please Note: Custom products/installations may not be reflected by this document. Call Draper, Inc. with any questions about product installation. PLEASE READ - Safety Information... -
Page 3: Overview - Components
StyleLine page 3 of 12 Overview - Components Please Note: Installer may need to modify subframe to accommodate lighting features. Ensure that such modifications do not compromise structural integrity of the subframe or screen assembly. -
Page 4: Section 1 - Assembling Screen Subframe
StyleLine page 4 of 12 Section 1 - Assembling Screen Subframe RECOMMENDED PERSONNEL Please Note: Installer must provide adequate attachment hardware and anchors as required. Installer must also ensure that structure is of adequate strength. Please Note: Installer may need to modify subframe to accommodate lighting features. Ensure that such modifications do not compromise structural integrity of the subframe or screen assembly. -
Page 5: Section 2 - Hanging Brackets And Testing Screen Placement
StyleLine page 5 of 12 Section 2 - Hanging Brackets and Testing Screen Placement Please Note: This process is best accomplished with at least 2 installers. (two) Test Screen Subframe placement before attaching screen surface to frame. Install Mounting Brackets to Bracket Wall mounting surface or fly cables, approximately 16"-24"... -
Page 6: Section 3 - Preparing For Screen Surface Attachment, Optional Lighting
StyleLine page 6 of 12 Section 3 - Preparing for Screen Surface Attachment, Optional Lighting Please Note: This process is best accomplished with at least 2 installers. (two) Remove subframe from mounting brackets and lay it on top of blanket, drop cloth, or other soft protective surface in staging area, front side facing up, hook &... -
Page 7: Section 4 - Attaching Screen Surface To Screen Subframe
StyleLine page 7 of 12 Section 4 - Attaching Screen Surface to Screen Subframe Please Note: This process is best accomplished with at least 2 installers. (two) At first corner, pull the edge of the screen surface fabric and wrap it snugly around the subframe, joining the hook and loop strips. -
Page 8: Section 5 - Adjusting Screen Surface
StyleLine page 8 of 12 Section 5 - Adjusting Screen Surface Review screen surface for ripples and flatness of screen surface. GENTLY undo each hook and loop strip and CAREFULLY pull screen surface as necessary to make small adjustments. Repeat as necessary. PLEASE NOTE: Adjust horizontal sides FIRST, then adjust vertical sides. -
Page 9: Section 7 - Attaching Bezel Trim To Screen Subframe
StyleLine page 9 of 12 Section 7 - Attaching Bezel Trim to Screen Subframe (Optional) (3 3/16" version shown) Spread out the foam padding sheets from the screen surface tube and lay subframe and screen on top, with surface facing DOWN. Arrange top and side Bezel pieces in general order of assembly. -
Page 10: Section 8 - Dimensions
StyleLine page 10 of 12 Section 8 - Dimensions BEZEL STYLELINE (16mm) Viewing Surface Width + 1 (32mm) TRIM FRAME Viewing Surface BEZEL WALL MOUNT BEZEL FLOWN (48mm) (52mm) (26mm) (79mm) (79mm) (44mm) (44mm) - Page 11 StyleLine page 11 of 12 Section 8 - Dimensions (continued) BEZEL STYLELINE (81mm) Viewing Surface Width + 6 (162mm) TRIM FRAME Viewing Surface BEZEL WALL MOUNT BEZEL FLOWN (51mm) (52mm) (24mm) (79mm) (81mm) (48mm) (48mm)
-
Page 12: Section 9 - Mounting Bracket Dimensions
StyleLine page 12 of 12 Section 8 - Dimensions (continued) BORDERLESS WALL MOUNT BORDERLESS FLOWN BORDERLESS STYLELINE Viewing Surface Width + Ø (52mm) (43mm) (32mm) (71mm) (73mm) Viewing Surface (40mm) (40mm) Section 9 - Mounting Bracket Dimensions Wall Mounting Bracket Mounting Bracket for flown screens (64mm) (89mm)
