Draper 218031 Assembly Instructions

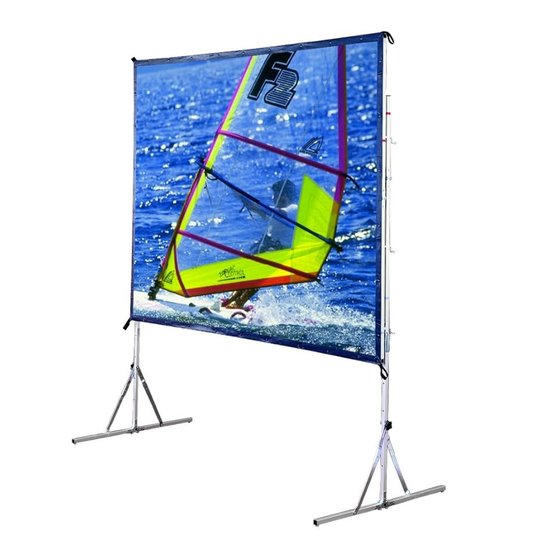

Cinefold Portable Projection Screen by Draper
① Read instructions through completely before proceeding; retain for future
reference.
② Handle viewing surface with care; do not allow it to come in contact with
sharp or dirty objects.
③ Use Handy Cranks provided; failure to do so may lead to screen damage.
④ Make sure screen is level.
⑤ Do not write on viewing surface.
⑥ The ideal temperature range for assembling folding screens to prevent
damaging the surface is 68°-78° F (20°-26° C). Assembling below
recommended temperatures may damage surface and void warranty.

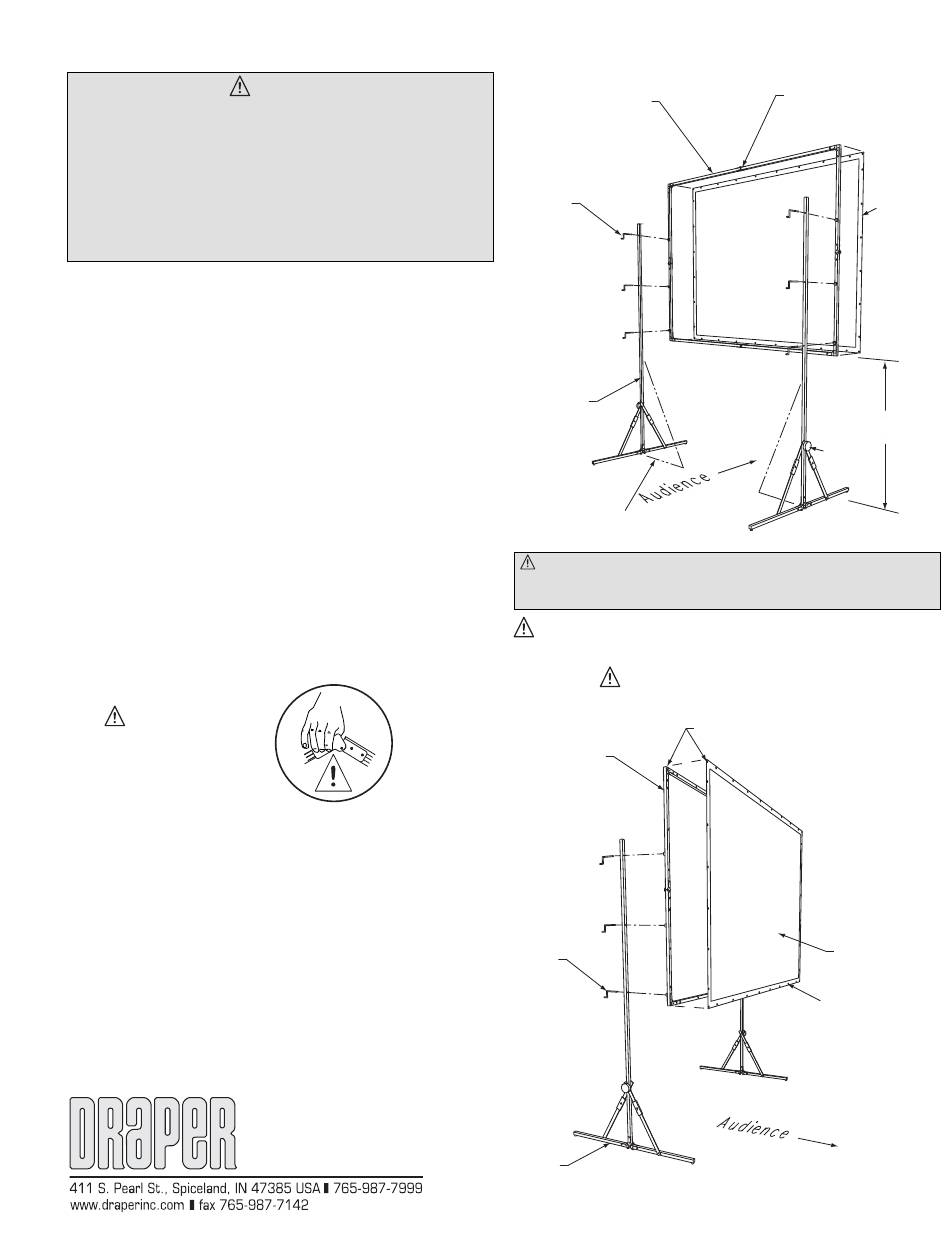

Frame/Screen Assembly

① Open carrying case and remove pouch containing screen surface, and
three aluminum assemblies. The largest package is the frame. Unwrap and
unfold it completely in one direction only, locking all hinges. Frame should
lie with snaps facing up.
② Remove surface from its envelope. With male snaps at bottom, snap
surface to frame. For easier surface attachment, start in one corner, then
work your way around the frame. Make sure snaps are secure.
Please note: For steps 3-5, screen should remain on fl oor or table, with
surface facing up. Carefully lift screen from fl oor or table to complete each
step.
③ Lock corner braces.
④ Unfold leg assemblies and lock hinges. Check that ad just ment knob is in
the hole desired (upper for vertical screen position, lower for keystone
elimination). DO NOT unfold feet at this time.
⑤ Attach legs to back side of vertical frame sections, as indicated by the
color coded markings, using Handy Cranks. For standard screen height,
match colored tapes exactly. Height is adjustable in 6" increments.
⑥ Raise Cinefold to a vertical position and unfold feet. Tighten ad just ment
knobs to maintain legs at desired angle. If your screen includes Heavy-
Duty Legs, unfold and lock the extensions on the backs of the feet, hinge
up to the backs of the leg, and attach with Handy Crank.
⑦ If Anti-Sway stabilizers are supplied with your screen, refer to illustration
and attach with Handy Cranks.
Caution: Beware
of pinch points.

A Note About Surfaces

① Always fold with snaps face-to-face. Do not permit screen fabric to
contact border material or snaps when folded. Store in pouch
provided.
② Take care at all times not to permit Cinefold viewing surface to contact any
dusty or dirty area, nor any varnished or painted object.
③ When necessary, clean Cinefold viewing surface according to cleaning
instructions for the particular surface you are using.
®
Copyright © 2012 Draper Inc. Form Cinefold_Inst12
Assembly Instructions
Caution
Printed in U.S.A.
Frame
Handy
Crank
Standard
T-Leg
Anti-sway stabilizers
optional with HD legs
Warning: This product is intended for indoor use only. Failure to
follow warning may result in product damage or personal injury due to
unforeseen acts of nature.
Caution: Make sure all hinges and joints are locked
before raising screen to standing position.
Caution: Make sure screen
is placed on level surface.
Frame
Handy Crank
Standard T-Leg
Heavy duty legs optional
Hinges and
hinge locks
2" Min.
44" Max.
KE
Adjustment
Knob
Snaps
Viewing
Surface
Bottom row of snap
studs to accept skirt
Viewing
Surface
