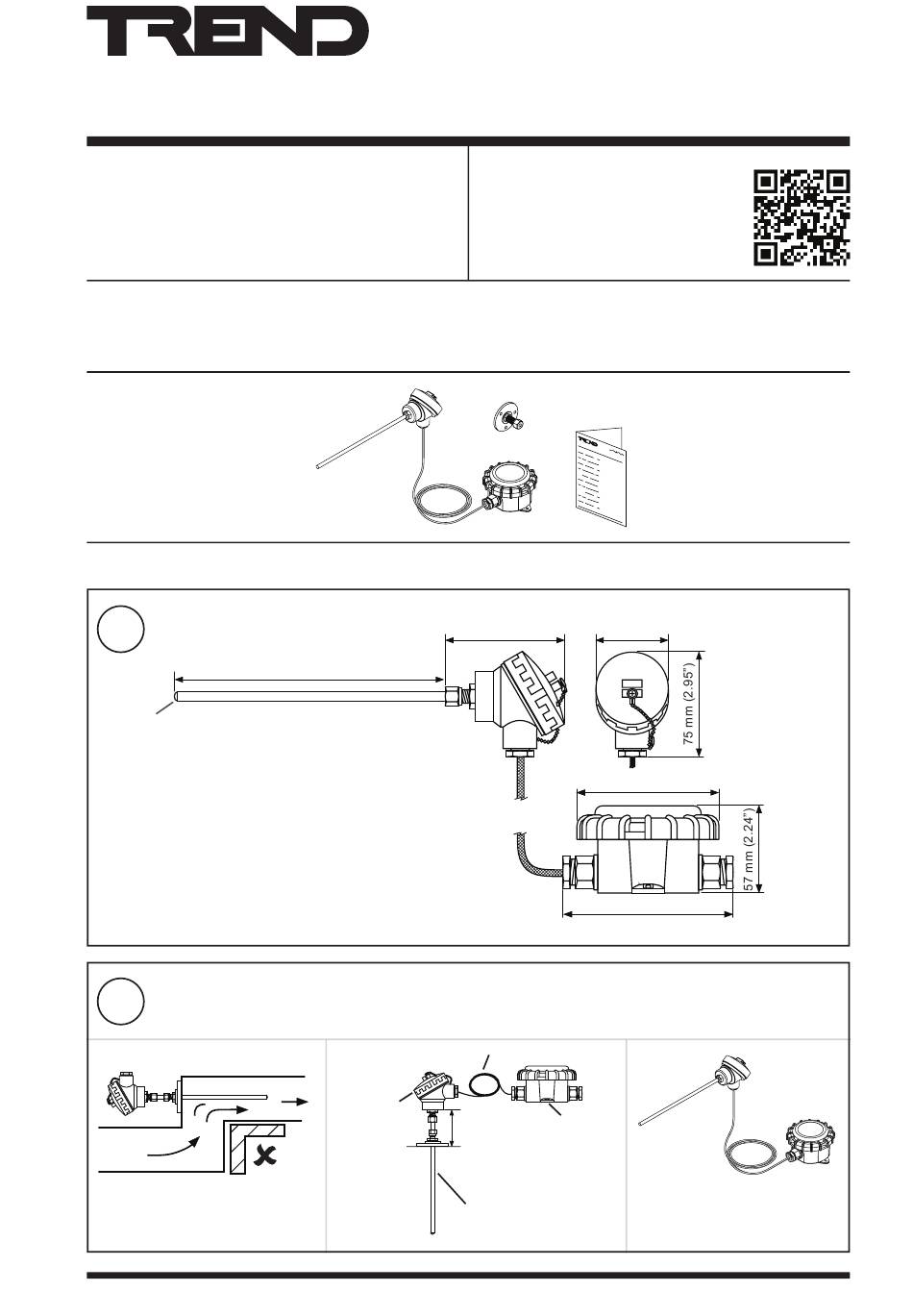

TREND T/FG Installation Instructions

Important: Retain these instructions
These instructions shall be used by trained service
personnel only.
If the equipment is used in a manner not
specifi ed by these instructions, the protection provided by the
equipment may be impaired.
CONTENTS
1 Box Contents .................................................................1
2 Installation .....................................................................1
1 BOX CONTENTS
2 INSTALLATION
Dimensions
1
380 mm (14.96")(-L)
230 mm (9.06") (-S)
Ø 6 mm (0.24")
Location
2
T/FG Flue Gas Temperature Sensor Installation Instructions TG100245A Issue 5, 18-May-2018
Flue Gas Temperature Sensor
https://partners.trendcontrols.com
3
85 mm (3.35")
1 m (1 yd) cable
<1 m (1 yd)
<100 °C
(212 °F)
>50 mm (2")
<400 °C
(752 °F)
Installation Instructions
Disposal .........................................................................4
T/FG Installation Instructions
(TG100245A)
55 mm (2.17")
94 mm (3.7")
117 mm (4.61")
<70 °C
(158 °F)
Protection
T/FG
:IP67, NEMA6
1
