TREND Thermistor TBTI Installation Instructions Manual

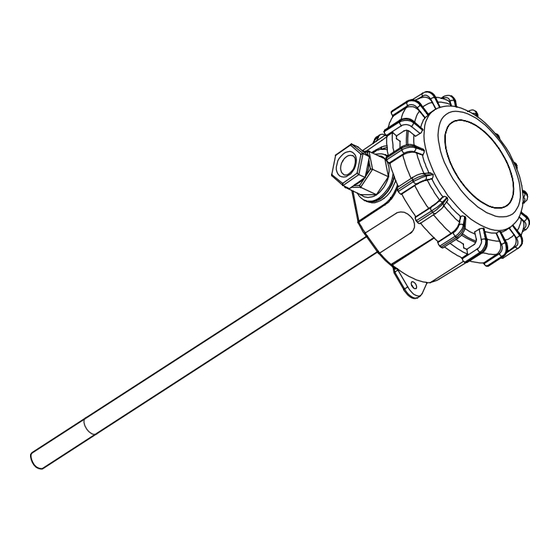

Thermistor Insertion Temperature Sensor
Important: Retain these instructions
These instructions shall be used by trained service
personnel only.
If the equipment is used in a manner not
specified by these instructions, the protection provided by the
equipment may be impaired.
ConTenTS
1

Box Contents .................................................................1

2 Installation .....................................................................1
1 Box ConTenTS
2 InSTallaTIon
Dimensions
1
Pockets for use as immersion sensor: Brass (WB150 or WB50); Stainless Steel (WS150 or WS50)
Ø8 mm
(0.31")
Mounting flange for use as duct sensor (ACC/DF)
3 x 4 mm diam. holes
on a 30 mm (1.18") PCD
(Pitch Circle Diameter)
TB/TI Thermistor Insertion Temperature Sensor Installation Instructions TG200727 Issue 5, 07-Mar-2016.
TB/TI Thermistor Insertion
Temperature Sensor Installation
Instructions (TG200727)
400 mm (15.75")
150 mm (5.91")
TB/TI/L
TB/TI/S
135 mm (5.31")
50 mm (1.97")
WB150, WS150 WB50, WS50
58 mm (2.28")
143 mm (5.63")
6 mm compression
fitting
Installation Instructions
https://partners.trendcontrols.com
3 Cleaning And Maintenance ...........................................7
4 Disposal .........................................................................8
57 mm (2.24")
70 mm (2.76")
TB/TI/ES
Ø6.5 mm (0.25")
14 mm
(0.53")
G½" (BSPP)
Universal Fitting Kit for immersion sensor
use in existing pockets (ACC/UF)
hexagonal
socket 2 mm
grub screw
brass brush
TB/TI
24 mm
(0.95")
clip
spring
1
