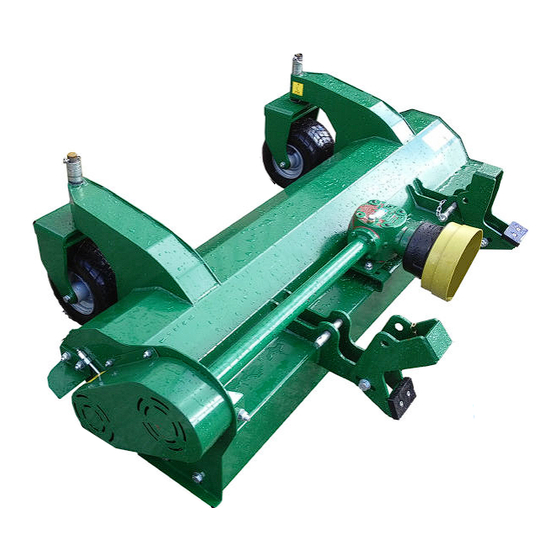

- Page 1 Operator Manual & Parts List MAJOR OUTFRONT FLAIL MOWER MJ21-140KU & MJ21-160KU MJ21-140JD & MJ21-160JD...
- Page 2 Major reserves the right to modify the machinery and the technical data contained within the manual without prior notice. Further to this, Major assumes no liability for any damages which may result from the use of the information contained within this manual.
-
Page 3: Table Of Contents
Contents Introduction Thank you Using Your Operator’s Manual Safety Issues Product Identification Machine Serial Numbers Register Your Product and Warranty Online Safety Machine Safety Labels Safe Operation Workstation Regulations for use of the transmission PTO Shaft Safety Driving Safely on Public Roads General safety instructions General description of the machine Operating the Machine... - Page 4 • 89/392/EEC, 91/368/EEC, 93/44/EEC, 93/68/EEC, EN292, EN 704 I certify on behalf of Major Equipment Int. Ltd., that this machine when properly installed and operated correctly, complies with all the essential Health & Safety requirements of all legislation referred to above.
-
Page 5: Thank You
Please read all the information carefully to avoid injury and machine damage. Product Identification Machine Serial Numbers If you need to contact MAJOR or your MAJOR dealer for information on servicing or spare parts, always provide the product model and serial numbers. We suggest that you record your machine details below:... -
Page 6: Safety
Product Specifications Model MJ21-140KU MJ21-160KU MJ21-140JD MJ21-160JD Working width (mm) 1400 1600 1400 1600 A (mm) 1000 1000 1000 1000 B (mm) 1520 1720 1520 1720 C (mm) Weight (kg) PTO (RPM) 2545 2545 2100 2100 Required power (HP) No. of Belts No. -
Page 7: Safe Operation
ALWAYS DISENGAGE PTO, SWITCH OFF THE TRACTOR ENGINE AND ENGAGE THE PARKING BRAKE BEFORE MAKING ADJUSTMENT TO THE MACHINE. NEVER PLACE LIMBS UNDER THE MACHINE WHILE THE ROTOR STILL TURNING. IT CAN REMAIN TURNING FOR UP TO 1 MINUTE AFTER DISENGAGING PTO. www.major-equipment.com... -
Page 8: Workstation
Grease the two profiles and join the two halves of the PTO together. • Mount the PTO shaft and check that its length is correct as before. The shaft must not reach the end of the tube or project from this. Ensure the PTO does not bottom when turning. www.major-equipment.com... -
Page 9: Driving Safely On Public Roads
4) It is mandatory to read all the safety requirements and the operator’s manual of the machine. 5) If you are not sure how to use the machine, please contact the manufacturer or the dealer. While operating the machine do not exceed the speed of 10 km/h www.major-equipment.com... -
Page 10: General Description Of The Machine
Fig. 1 MJ21 1 Body 5 Linkage arm 9 Belt tensioner 2 Belt protection plate 6 Nilon buffer 10 Roller 3 Castor wheel 7 PTO cover 11 Rotor 4 Belts cover 8 Gearbox www.major-equipment.com... -
Page 11: Operating The Machine
During the transport and any time the machine shall be raised, the raising device shall be adjusted to assure that the machine is 250mm over the ground. Before raising the machine wait until the transmission and the rotor are completely still During the transport of the machine the PTO shaft must be disconnected. www.major-equipment.com... -
Page 12: Maintenance
5) Tighten the locking screws of the gear box checking that the axis is parallel to the machine. If the transmission is not parallel to the machine, the belts wear out quickly. 6) Correctly assemble the transmission and fasten the guard to protect the belts. Fig. 5 www.major-equipment.com... -
Page 13: Replacement Of The Flails
Good, regular maintenance and correct use are if the topper is to remain safe and long lasting. PTO Shaft Maintenance Guard Removal and Yoke End Greasing Prise back locking tabs Pull back PTO Guard Grease points as shown Push Guard into position Click into place Tie check chain PTO Guard Greasing Intervals www.major-equipment.com... -
Page 14: Troubleshooting
Gearbox leaking Replace seal or use a sealant on outside diameter Oil seal not sealing in the housing of seal Oil level too high Drain oil to proper level Hole in gearbox Replace the gearbox Gasket damaged Replace gasket www.major-equipment.com... -
Page 15: Spare Parts
Rotor MJ21-160 5200000169 Locking ring 30/55 1000005201 Grease kit 1700000116 Pulley SPA 112/3-55 5500005201 Rotor bearing plate 1700000117 Locking ring 35/55 1600000906 Rotor Bearing 5500000602 Locking plate cover 55115 Circlip TFM-B032 Top plate 5500000405 Seal TFM-B012 Guard bar MJ21-140 www.major-equipment.com... -
Page 16: Mj21 John Deere Model - General Assembly
Guard bar MJ21-140JD TFM-B045 Spacer Ø 38/30.5 x 10 TFM-B028_1 Vee Belt TFM-B046 Spacer Ø 38/30.5 x 5 Gearbox_140 Gearbox 715 MJ21-140JD 0000031128 Flange bush 0000000613 PTO cover 0000000345 Pulley SPA 112/3-50 TG-100-RGA_1 Linkage bracket TFM-JDGA JD Lifting arm www.major-equipment.com... -
Page 17: Mj21 Wheel Assembly
Item Part No. Description TFM-B016_2 Wheel Bracket 30.5 TFM-B021 Shaft TFM-B014 Washer 11x7.10/5WH 11X7.10/5 Wheel MJ21 Buffer Stop Item Part No. Description 5020D28 Dia 50x20xM10 buffer FWM16 M16 Flat washer M16 nyloc nut M16x110BZP-M M16x110 Bolt TFM-W65X16X8 Spacer washer www.major-equipment.com... - Page 18 Warranty: This machine is guaranteed for 12 months. No warranty is given where the machine is being used as a hire machine. Warranty is against faulty workmanship or parts, with the exception of components not of MAJOR’S manufacture or design, i.e.
- Page 19 Netherlands & Germany OFFICE HEAD OFFICE UK OFFICE Major Equipment Intl Ltd Major Equipment Ltd Major Equipment Intl Ltd Ballyhaunis, Co Mayo Major Ind. Estate, Heysham, Postbus 29, NL-7700 AA Ireland Lancs, LA3 3JJ, UK Dedemsvaart, Nederland Tel: +353 (0) 9496 30572...
