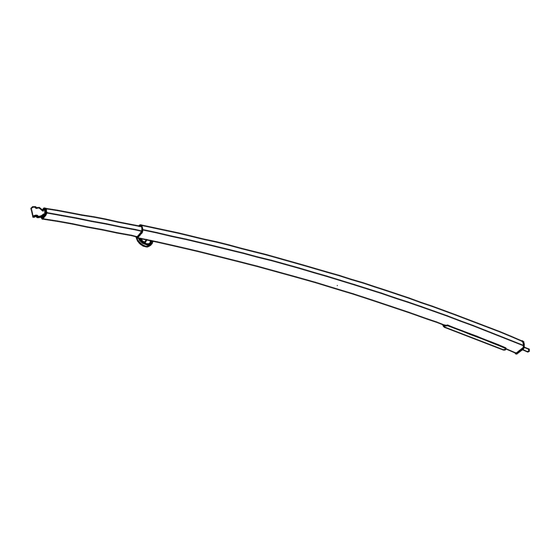

- Page 1 LED CURVED ROOF RAFTER USER MANUAL READ CAREFULLY BEFORE USING KEEP MANUAL FOR FUTURE REFERENCE More information https://www.caravansplus.com.au...
-
Page 2: Product Introduction
Made to our exclusive design curve and shape, the Aussie Traveller Curved Roof Rafter (CRR) helps to prevent wind flap and sagging in the fabric of the awning and assists water run-off in the rain. The curved design of the Curved Roof Rafter protects against damage and marking to the awning fabric. - Page 3 PRODUCT INTRODUCTION (cont.) PARTS 1. Small Hook End 2. Inner Telescopic Tube 3. Knurled Knob 4. Outer Telescopic Tube 5. Spigot End 6. Countersunk Bolt M4x10 7. Countersunk Bolt M4x10 8. Battery Compartment Cover 9. LED Control Switch 10. LED 11.
-
Page 4: Installation
INSTALLATION 1. Ensure you have the recommended number of rafters based on your awning size. Refer to specifications on the Aussie Traveller website. aussietraveller.com.au/products/curved-roof-rafter-crr 2. Install the wall bracket at the installation position: The centre of wall bracket is 20-25mm down from under side of fabric. - Page 5 INSTALLATION (cont.) 5. Fit small hook end with wall bracket. 6. Loosen knurled knob. 7. Extend out inner telescopic tube and fit spigot into hole in roller. 8. Lock the knurled knob. 1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061 More information https://www.caravansplus.com.au...
-
Page 6: Troubleshooting
TROUBLESHOOTING PROBLEM POSSBILE CAUSE SOLUTION Battery not installed Install battery When pressing the LED control In Use Battery installation error Install the battery correctly according to instructions switch, the LED does not turn on. Dead battery Charge and replace the battery SAFETY PRECAUTIONS: To reduce the risk of electric shock/injury/fire/death and property damage, be sure to follow the following safety precautions. -
Page 7: Warranty Statement
Warranty will commence at the time the final retail customer makes payment for the Product to the wholesale purchaser. 3. If the Product is purchased directly from Aussie Traveller for use by final retail customer and not to be on sold in any way, the Warranty will commence at the time of the original purchase. - Page 8 If such inspection and testing find no defect in the Product, the final retail customer must pay Aussie Traveller’s usual costs of service work and testing. The final retail customer must bear the cost of the transport of the Product to and from Aussie Traveller or the authorised repair agent, and all insurance of the Product.
