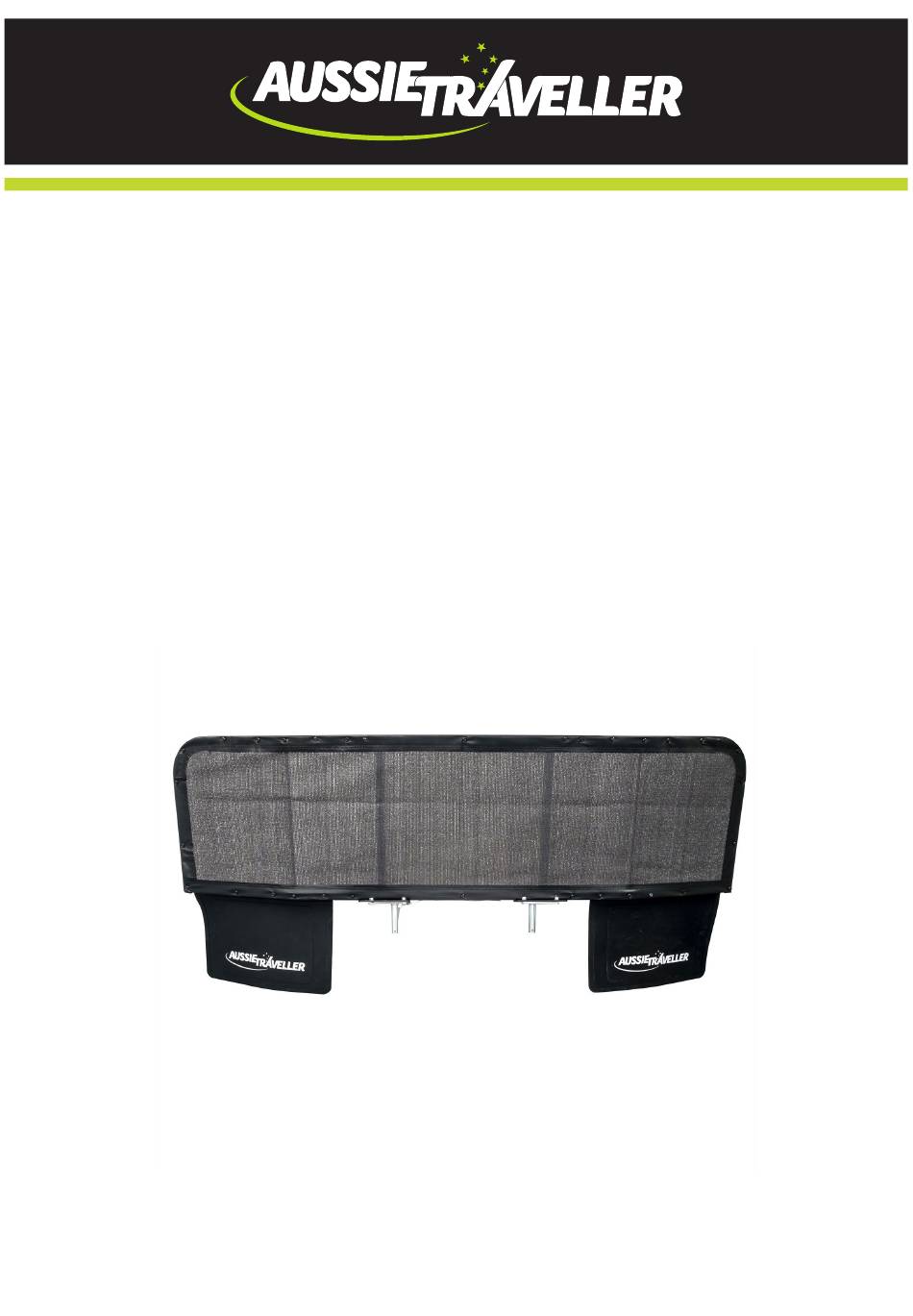

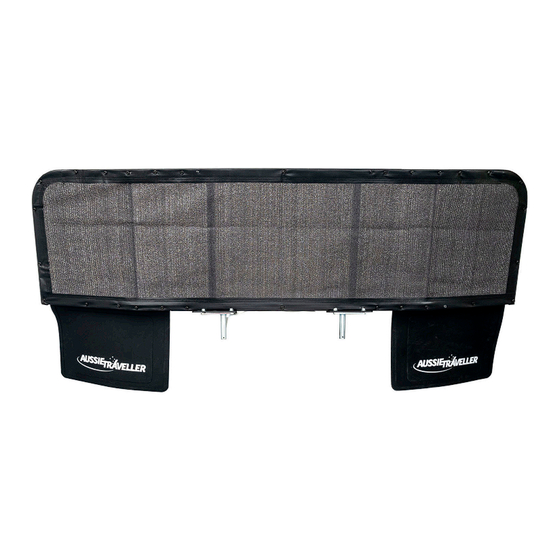

- Page 1 CARAVAN, POP-TOP CARAVAN & CAMPER TRAILER STONE GUARDS INSTALLATION MANUAL READ INSTALLATION MANUAL CAREFULLY BEFORE INSTALLING More information https://www.caravansplus.com.au...
-
Page 2: Product Introduction
A-Frame of your Caravan or Camper Trailer. The Aussie Traveller Stone Guards can be fitted to A-Frames where the inside width, at point of attachment, is between 415mm to 750mm. The U-brackets provided can also fit onto A-frame bars with a width of 50mm x 100mm, 125mm, or 150mm high. -
Page 3: Installation
INSTALLATION STEP 1: Locate the Centre Piece and place it in a free, workable space with no obstacles. Figure 2 STEP 2: Locate one of the End Pieces and slide onto the Centre Piece. Follow with the other End Piece. Secure with the 20mm Self drilling screws provided. - Page 4 INSTALLATION (cont.) STEP 4: Locate the mesh. Turn the frame over for easier installation of the mesh. NOTE: The Stone Guard frame is pre-drilled for your convenience. Figure 8 Figure 9 STEP 5: Line up the mesh with the frame. Secure the mesh with the 20mm self drilling screws. Start with the corners and work your way around the frame.
- Page 5 INSTALLATION (cont.) STEP 7: Line up the holes on the mud flap to the holes on the frame. Once you are sure the holes are aligned, attach to the frame with the 25mm screws. Figure 14 Figure 15 STEP 8: Once both of the mud flaps are secured, bring the Stone Guard over to your RV A-frame.
-
Page 6: Additional Information
Figure 6 ADDITIONAL INFORMATION CAMPER TRAILER CARAVAN & POP-TOP U-BRACKETS: STONE GUARD: CARAVAN STONE GUARD: The U-brackets can fit onto an A-frame with the measurements The Camper Trailer Stone Guard The Caravan and Camper Van below: can be fitted onto A-frames with the Stone Guard can be fitted onto... -
Page 7: Warranty Statement
final retail customer makes payment for the Product to the wholesale purchaser. 3. If the Product is purchased directly from Aussie Traveller for use by final retail customer and not to be on sold in any way, the Warranty will commence at the time of the original purchase. - Page 8 Ph: +61 7 3284 3284 enquiries@aussietraveller.com.au enquiries@aussietraveller.com.au To receive a copy of the Aussie Traveller Warranty Terms & Conditions or information regarding specific Aussie Traveller products, please contact Aussie Traveller Head Office on (07) 3284 3284 or email enquiries@aussietraveller.com.au. More information https://www.caravansplus.com.au...
