Endress+Hauser FieldPort SWA50 Operating Instructions Manual
Intelligent bluetooth adapter for hart field devices
Hide thumbs
Also See for FieldPort SWA50:
- Operating instructions manual (76 pages) ,
- Operating instructions manual (68 pages) ,
- Technical information (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser FieldPort SWA50
Summary of Contents for Endress+Hauser FieldPort SWA50

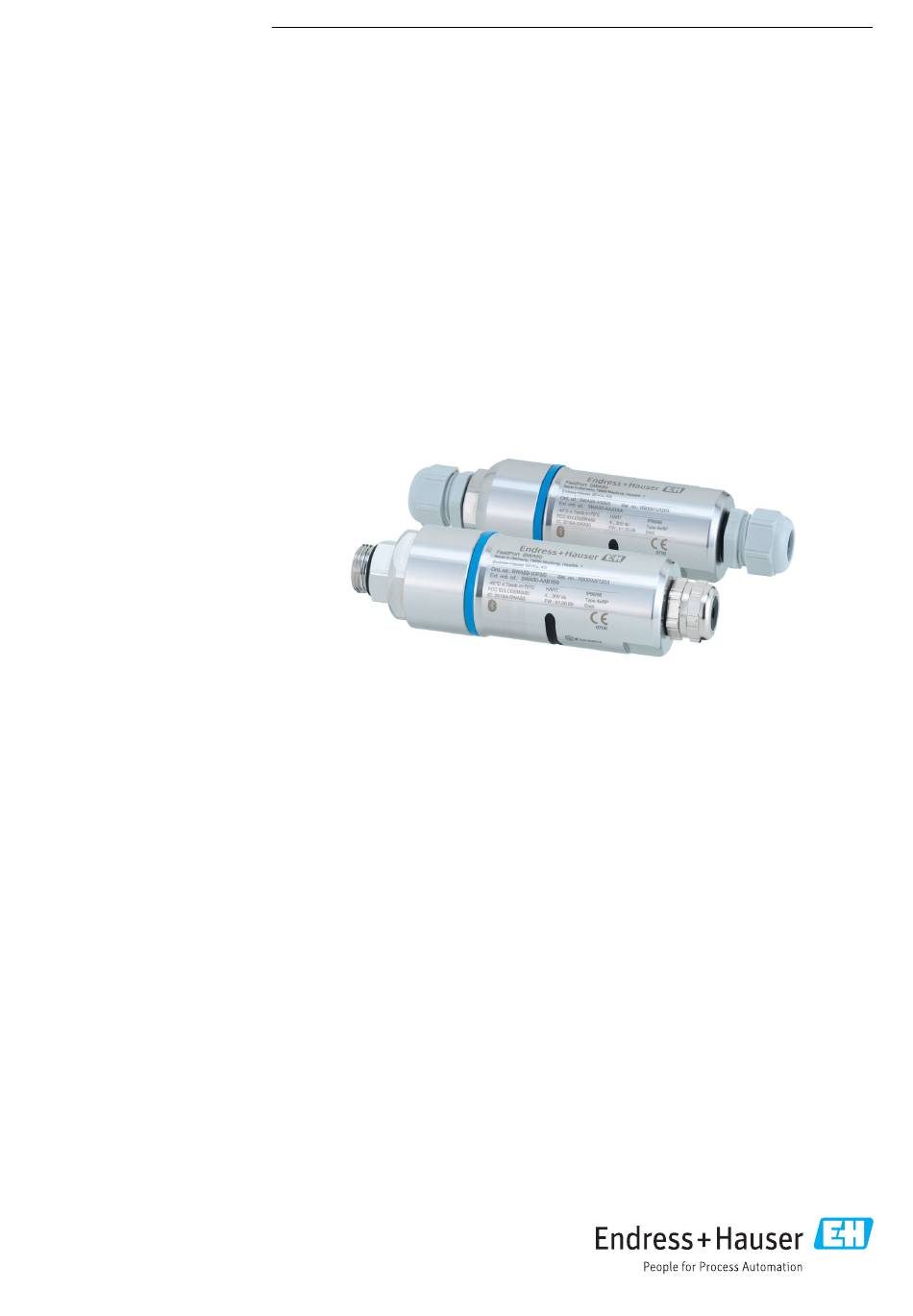

- Page 1 Products Solutions Services BA01987S/00/EN/05.24-00 71654356 2024-03-01 Operating Instructions FieldPort SWA50 Intelligent Bluetooth® adapter for HART field devices...
- Page 2 Revision history FieldPort SWA50 Revision history Product Operating Changes Comments version Instructions 1.00.XX BA01987S/04/EN/ – Initial version 02.20 1.00.XX BA01987S/04/EN/ Supply voltage Corrections 03.21 1.00.XX BA01987S/04/EN/ Alignment Amendments and changes 04.21 Range Note on status signal Notes and references "Diagnostics" section 1.01.XX...
-
Page 3: Table Of Contents
10.4 "Diagnostics: Field device" page ... . 48 5.6.3 Installing the mounting bracket and FieldPort SWA50 ....27 Endress+Hauser... - Page 4 ..... . . 50 10.6.2 "HART info" page (Field device) ..10.7 "System: FieldPort SWA50" page ... 51 10.7.1 "Device management" page (FieldPort SWA50) .
-
Page 5: About This Document
FieldPort SWA50 About this document About this document Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal. -
Page 6: Symbols In Graphics
Menu Settings Terms and abbreviations Term Description DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS, FOUNDATION Fieldbus and Ethernet field devices Device Type Manager FieldCare Scalable software tool for device configuration and integrated plant asset management solutions Loop-powered adapter Loop-powered adapter... -
Page 7: Valid Versions
Registered trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®... -
Page 8: Basic Safety Instructions
Personnel follow the instructions in this manual. Designated use The FieldPort SWA50 is a loop-powered adapter that converts the HART signal of the connected HART field device into a reliable and encrypted Bluetooth signal. The FieldPort SWA50 can be retrofitted to all 2-wire or 4-wire HART field devices. -
Page 9: Security
Signal transmission via Bluetooth® wireless technology uses a cryptographic technique tested by Fraunhofer AISEC. • Connection via Bluetooth® is not possible without specific Endress+Hauser devices or the SmartBlue app. • Only one point-to-point connection between one FieldPort SWA50 device and one smartphone or tablet is established. -
Page 10: Product Description
• Visualization of the current status of the FieldPort SWA50 and the connected HART field device • Configuration of the connected HART field device HART field devices can be connected to the Netilion Cloud via the FieldPort SWA50 and a FieldEdge device. Detailed information on Netilion Cloud: https://netilion.endress.com... -
Page 11: System Architecture Of The Fieldport Swa50
System architecture of the FieldPort SWA50 Bluetooth version Netilion A0040482 1 System architecture of SWA50 Bluetooth version HART field device with FieldPort SWA50, remote mounting Encrypted wireless connection via Bluetooth® HART field device with FieldPort SWA50, direct mounting FieldEdge SGC200 LTE connection Netilion Cloud... -
Page 12: Incoming Acceptance And Product
→ Enter serial number): All information relating to the device is then displayed. • Enter the serial number specified on the nameplate into the Endress+Hauser Operations App: All information relating to the device is then displayed. 4.2.2 Manufacturer's address Endress+Hauser SE+Co. -
Page 13: Mounting
Fresnel zone. • Avoid mounting in close proximity to high-voltage devices. • For a better connection, mount the FieldPort SWA50 in sight of a FieldEdge SGC200. • Pay attention to the effect of vibrations at the mounting location. -
Page 14: Mounting Options
5.3.1 "Direct mounting" version A0043241 3 Example of direct mounting Cable FieldPort SWA50 "direct mounting" version HART field device Bottom housing section Transmission window Design ring Top housing section Montage sequence for the "direct mounting" version: → 15... -
Page 15: Remote Mounting" Version
"Remote mounting" version A0043240 4 Example of remote mounting HART field device Cable FieldPort SWA50 "remote mounting" version Housing base Transmission window Design ring Top housing section For remote mounting, we recommend the optional mounting bracket → 25. - Page 16 Mounting FieldPort SWA50 Mounting the FieldPort SWA50 A0040564 A0040565 A0041512 A0040500 Endress+Hauser...
- Page 17 FieldPort SWA50 Mounting A0040502 A0040501 Endress+Hauser...
- Page 18 • Electrical connection for 4-wire HART field devices with active current output: → 31 • Electrical connection for FieldPort SWA50 without HART field device: → 32 A0041552 Tighten screws for strain relief. Torque: 0.4 Nm ± 0.04 Nm...
- Page 19 FieldPort SWA50 Mounting A0041553 Slide the electronic insert into the guide inside the housing. A0040506 For information regarding torque, see the field device documentation. A0041554 Ensure that the cores are of sufficient length to be connected in the field device.
- Page 20 Mounting FieldPort SWA50 A0040566 Do not tighten the top housing section yet, so that you are still able to rotate the bottom housing section. A0040568 Align the bottom housing section with the transmission window according to the network architecture → 13.
-
Page 21: Mounting The "Remote Mounting" Version
Secure it against being switched back on. For remote mounting, we recommend the optional mounting bracket. Alternatively, you can secure the remote version using pipe clips. Electrical connection: → 29 Tools required • Wrench AF27 • Wrench AF36 Mounting the FieldPort SWA50 A0040498 Endress+Hauser... - Page 22 Mounting FieldPort SWA50 A0040499 A0041512 A0040500 5. If you are mounting the FieldPort SWA50 using the optional mounting bracket, follow the instructions in the "Mounting the mounting bracket and FieldPort SWA50" section→ 27. A0041513 Endress+Hauser...
- Page 23 • Electrical connection for 4-wire HART field devices with passive current output: → 31 • Electrical connection for 4-wire HART field devices with active current output: → 31 • Electrical connection for FieldPort SWA50 without HART field device: → 32 Endress+Hauser...
- Page 24 Mounting FieldPort SWA50 A0040507 Tighten screws for strain relief. Torque: 0.4 Nm ± 0.04 Nm A0040508 Slide the electronic insert into the guide inside the housing. A0040509 Tighten the top housing section so that the blue design ring can still be rotated afterwards.
-
Page 25: Installing The Fieldport Swa50 With Mounting Bracket
FieldPort SWA50 Mounting 14. Perform commissioning → 36. Installing the FieldPort SWA50 with mounting bracket 5.6.1 Mounting and alignment options The mounting bracket can be mounted as follows: • On pipes with a maximum diameter of 65 mm • On walls The FieldPort can be aligned as follows using the support bracket: •... -
Page 26: Dimensions
Mounting FieldPort SWA50 5.6.2 Dimensions 165 (6.50) 81 (3.19) 87 (3.43) A0043313 6 Dimensions of mounting bracket – pipe mounting 4.75 (0.19) 78 (3.07) 18 (0.71) 103 (4.06) A0043410 7 Dimensions of retaining bracket – wall mounting Endress+Hauser... -
Page 27: Installing The Mounting Bracket And Fieldport Swa50
Hexagonal-headed bolt for securing and grounding Support bracket Mounting bracket Round bracket If you are mounting the FieldPort SWA50 using the mounting bracket, you must remove the design ring between the top housing section and the bottom housing section. Tools required •... -
Page 28: Post-Mounting Check
10. Tighten the top housing section. Torque: 5 Nm ± 0.05 Nm 11. Connect the protective ground to the hexagonal-headed bolt. 12. Tighten the hexagonal-headed bolt so that the FieldPort SWA50 is secured in the mounting bracket. Post-mounting check Is the device undamaged (visual inspection)? ... -
Page 29: Electrical Connection
FieldPort SWA50 Electrical connection Electrical connection NOTICE Short-circuit at OUT+ and OUT– terminals Damage to device ‣ Depending on the application, connect either the field device, PLC, transmitter or resistor to the OUT+ and OUT– terminals. ‣ Never short-circuit the OUT+ and OUT– terminals. -
Page 30: Terminal Assignment
Electrical connection FieldPort SWA50 Terminal assignment 1234 A0040495 9 FieldPort SWA50 terminal assignment Input terminal IN Output terminal OUT Application Input terminal IN Output terminal OUT 2-wire HART field device Cable from supply voltage, PLC with Cable to 2-wire HART field device →... -
Page 31: 2-Wire Hart Field Device With Passive Current Output
• Shielding: 2.5 to 6 mm (0.1 to 0.23 in) 2-wire HART field device with passive current output Some grounding concepts require shielded cables. If connecting the cable shield to the FieldPort SWA50, you must use a cable gland for shielded cable. See ordering information. –... -
Page 32: Fieldport Swa50 Without Hart Field Device (Repeater)
OUT terminals opposite. If larger core cross-sections are required, we recommend remote mounting. FieldPort SWA50 without HART field device (repeater) Using this connection version, you can preconfigure the FieldPort SWA50 or use it as a repeater. Endress+Hauser... -
Page 33: Post-Connection Check
15 FieldPort SWA50 without HART field device (optional grounding not shown) Supply voltage FieldPort SWA50, 20 to 30 VDC (SELV, PELV or Class 2) Electronic insert SWA50 Resistance 1.5 kOhm and min. 0.5 W between terminals OUT+ and OUT–... -
Page 34: Operation Options
Apple App Store. An encrypted point-to-point connection is established between the FieldPort SWA50 and the mobile device. It is only possible to connect the FieldPort SWA50 and the connected HART field device via Bluetooth using the SmartBlue app. Configuration of the connected HART field device is not possible via the SmartBlue app. - Page 35 Supply voltage or PLC with active current input or transmitter with active current input Electronic insert SWA50 (internal communication resistor enabled) 2-wire field device 4 to 20 mA HART Endress+Hauser Commubox FXA195 USB/HART modem PC with FieldCare SFE500 Field Xpert SMT tablet PC...
-
Page 36: Commissioning
Points to check before commissioning HART master In addition to the FieldPort SWA50, only one other HART master is permitted in the HART loop. This other HART master and the FieldPort SWA50 may not be of the same master type. You can configure the master type either via the "HART master type" parameter or "Master Type". -
Page 37: Putting The Fieldport Swa50 Into Operation
The Google Play or App Store page is opened to download the SmartBlue app. System requirements Please see either the Google Play or App Store page for the system requirements of the SmartBlue app. Starting the SmartBlue app and logging in 1. Switch on the supply voltage for the FieldPort SWA50. Endress+Hauser... - Page 38 Example of FieldPort SWA50 with Endress+Hauser HART field device, already connected to SmartBlue app Example of FieldPort SWA50 with HART field device of another manufacturer, already connected to SmartBlue app Example of FieldPort SWA50, not yet connected to SmartBlue app...
- Page 39 2. Use the "Communication resistor" parameter to check the setting for the HART communication resistor. If there is no HART communication resistor outside the FieldPort SWA50 in the 4 to 20 mA loop, you must enable the internal HART communication resistor.
-
Page 40: Commissioning Via Field Xpert
19 Reachable devices (live list) Example of FieldPort SWA50 without HART field device, already connected to Field Xpert Example of FieldPort SWA50, not yet connected to Field Xpert Example of FieldPort SWA50 with Endress+Hauser HART field device, already connected to... - Page 41 2. Use the "Communication Resistor" parameter to check the setting for the HART communication resistor. If there is no HART communication resistor outside the FieldPort SWA50 in the 4 to 20 mA loop, you must enable the internal HART communication resistor.
-
Page 42: Commissioning Via Fieldcare
3. Use the "Master Type" parameter to check the setting for an additional HART master in the HART loop. In addition to the FieldPort SWA50, only one other HART master is permitted in the HART loop. This other HART master and the FieldPort SWA50 may not be of the same master type. -
Page 43: Operation
FieldPort SWA50 Operation Operation Hardware locking The DIP switches for hardware-locking are located on the electronic insert. 1 2 3 4 1234 A0041784 20 DIP switches for hardware-locking of functions DIP switch Function Description Factory setting Bluetooth • ON: Communication via Bluetooth is communication possible, e.g. -
Page 44: Description Of Smartblue App For Swa50
• FieldPort SWA50 without connected or accessible HART field device Information about the serial number shown The actual serial number is displayed for Endress+Hauser field devices with HART 6 and HART 7. A unique serial number is calculated for field devices from other manufacturers and for Endress+Hauser field devices with HART 5. - Page 45 Serial number. In the case of HART field devices, this is a unique number generated by the SWA50 consisting of Device type, Manufacturer ID and Device ID. Status signal of the SWA50. If the status is not OK, the button for the "Diagnostics FieldPort SWA50" page is shown.
- Page 46 Serial number. In the case of HART field devices from other manufacturers, this is a unique number generated by the SWA50 consisting of Device type, Manufacturer ID and Device ID. Status signal of the SWA50. If the status is not OK, the button for the "Diagnostics FieldPort SWA50" page is shown.
-
Page 47: Diagnostics: Fieldport Swa50" Page
FieldPort SWA50 Description of SmartBlue app for SWA50 10.3 "Diagnostics: FieldPort SWA50" page Navigation: Root menu > Diagnostics > FieldPort SWA50 This page displays information about the FieldPort SWA50 which may be relevant for diagnostics. Parameter Description Device tag Shows the SWA50 device tag... -
Page 48: Diagnostics: Field Device" Page
"Diagnostics: Field device" page Navigation: Root menu > Diagnostics > Field device This page displays information about the HART field device which may be relevant for diagnostics. The diagnostic information is displayed only for Endress+Hauser HART field devices. Parameter Description Device tag... -
Page 49: Application: Fieldport Swa50" Page
Shows the number of configuration changes for the HART field device 10.5 "Application: FieldPort SWA50" page 10.5.1 "Measured values" page (FieldPort SWA50) Navigation: Root menu > Application > FieldPort SWA50 > Measured values This page shows the measured values of the FieldPort SWA50. Parameter Description Primary variable (PV) -
Page 50: Application: Field Device" Page
This page shows the measured values of the HART field device that is connected to the FieldPort SWA50. If a HART field device is not connected or the HART field device cannot be reached, this page shows the measured values of the FieldPort SWA50. -
Page 51: System: Fieldport Swa50" Page
Factory setting • User name: admin • The password can be found on the nameplate. Firmware update → 67 "HART configuration" page Navigation: Root menu > System > FieldPort SWA50 > Connectivity > HART configuration Endress+Hauser... -
Page 52: Geolocation" Page (Fieldport Swa50)
Description of SmartBlue app for SWA50 FieldPort SWA50 Use this page to configure the HART parameters for the FieldPort SWA50. In addition, you can configure the HART address of the connected HART field device. Parameter Description HART address field device Configure the HART address of the HART field device. -
Page 53: System: Field Device" Page
Navigation: Root menu > System > Field device > Information This page shows information about the HART field device that is connected to the FieldPort SWA50. This information is displayed for Endress+Hauser field devices with HART 6 and higher. Parameter... -
Page 54: Description Of Dtm For Swa50
FieldPort SWA50 Description of DTM for SWA50 11.1 Identification Use this page to configure the parameters necessary to identify the FieldPort SWA50. The factory settings are displayed in the relevant fields. Navigation Online parameterization > Identifcation "Identification" parameter description page... -
Page 55: Wireless Communication
S T U V W X Y Z [ \ ] ^ _ SP ! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? 11.2 Wireless Communication This page only applies to the FieldPort SWA50 with WirelessHART (SWA50 - _ _ B _ _ _). 11.3 Wired Communication Use this page to configure the parameters required for HART communication between the FieldPort SWA50 and the connected HART field device. - Page 56 Description of DTM for SWA50 FieldPort SWA50 "Wired communication" parameter description page Parameter Description Polling Address Description Shows the HART address of the SWA50. Factory setting Master Type Description Select the HART master type for the SWA50. Options • Primary master •...
-
Page 57: Device Variable Mapping
SWA50. 11.4 Device Variable Mapping The FieldPort SWA50 can output the value and status of different variables. Use this page to configure the four variables PV, SV, TV and QV that are displayed in the network. Variables for selection Option... -
Page 58: Burst Mode
Factory setting 11.5 Burst Mode This page only applies to the FieldPort SWA50 with WirelessHART (SWA50 - _ _ B _ _ _). 11.6 Event Notification This page only applies to the FieldPort SWA50 with WirelessHART (SWA50 - _ _ B _ _ _). -
Page 59: Diagnostics
1. Click on the SWA50 in the network view. 2. Open the context menu. 3. Select the Diagnosis menu. The "Diagnosis" window is opened. 12.2 Identification Diese Seite zeigt Informationen zum FieldPort SWA50. Navigation Diagnosis > Identification Parameterbeschreibung Seite "Identification" Parameter Beschreibung Long Tag Zeigt die lange Zeichenkette, die für den SWA50 eingegebene wurde. -
Page 60: Wired Communication
Zeigt die Bestellnummer des SWA50. ENP Version Zeigt die Version des elektronischen Typenschilds des SWA50. 12.3 Wired Communication Diese Seite zeigt Informationen zum HART-Feldgerät, das an dem FieldPort SWA50 angeschlossen ist. Navigation Diagnosis > Wired Communication Parameterbeschreibung Seite "Wired Communication"... -
Page 61: Health Status
FieldPort SWA50 Diagnostics 12.4 Health Status Diese Seite zeigt Diagnoseinformationen für den FieldPort SWA50 gemäß folgenden Richtlinien und folgender Spezifikation: • NAMUR-Richtlinie NE 107 • ASM-Richtlinien • HART-Spezifikation 12.4.1 NAMUR NE 107 Navigation Diagnosis > Health Status > NAMUR Mögliche Gerätestatus Gerätestatus... -
Page 62: Hart
Diagnostics FieldPort SWA50 Gerätestatus Übersetzung Faults in the electronics Fehler in der Elektronik Installation faults, fault during start-up Installationsfehler, Fehler während der Inbetriebnahme Faults due to process influence, faults due to non- Prozessfehler, Fehler wegen Nichtbeachtung compliance with specified operating conditions spezifischer Betriebsbedingungen 12.4.3... -
Page 63: Other Dtm Functions
Other DTM functions 13.1 Lock / Unlock Use this page to protect the FieldPort SWA50 against unauthorized access via the DTM. If locking is enabled and DIP switch 3 is set to "On", configuration via Bluetooth is still possible. If the "The device is write-protected (Device configuration locked)" option is enabled in the "Standardized Status 0"... - Page 64 Other DTM functions FieldPort SWA50 Lock Code Lock Status Lock All Configuration cannot be changed – Locked by Gateway Locking was triggered by a gateway. Endress+Hauser...
-
Page 65: Diagnostics And Troubleshooting
FieldPort SWA50 Diagnostics and troubleshooting Diagnostics and troubleshooting 14.1 Diagnostics If a diagnostic event has occurred, the status signal appears in Netilion together with the corresponding symbol for the event level according to NAMUR NE 107. • Failure (F) • Function check (C) •... -
Page 66: Troubleshooting
Check the settings of the HART parameters in the FieldPort. device and FieldPort. • SmartBlue app: Root menu > System > FieldPort SWA50 > Connectivity > HART Configuration → 51 • Field Xpert and FieldCare: "Wired communication" page → 55 No Bluetooth communication between Check whether Bluetooth communication is enabled →... -
Page 67: Maintenance
• The smartphone battery is charged or the smartphone is connected to a power supply. • The Bluetooth signal quality of the smartphone is sufficient. • In the case of the FieldPort SWA50, DIP switch 2 must be set to ON → 43. (Factory setting of DIP switch 2: ON) NOTICE Error during firmware update. - Page 68 Maintenance FieldPort SWA50 24 "Firmware update" page Example of a package 4. Tap the Start update button to upload the firmware package to the FieldPort SWA50. If the update cannot be uploaded, the error message "Internal firmware update error" is displayed.
- Page 69 8. Wait for installation of the new firmware. During installation of the new firmware, the FieldPort SWA50 or the connected field device disappears from the live list of the SmartBlue app. The device is not displayed in the live list until the firmware has been successfully installed.
-
Page 70: Repair
Repair FieldPort SWA50 Repair 16.1 General notes Repairs may only be performed by Endress+Hauser staff or by individuals authorized and trained by Endress+Hauser. 16.2 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. -
Page 71: Accessories
FieldPort SWA50 Accessories Accessories Optional accessories: Mounting bracket (order number: 71520242) Detailed information about the accessories is available from your Endress+Hauser sales organization: www.addresses.endress.com or on the product page Endress+Hauser... -
Page 72: Technical Data
Technical data FieldPort SWA50 Technical data For detailed information on "technical data": see Technical Information TI01468S Endress+Hauser... -
Page 73: Appendix
FieldPort SWA50 Appendix Appendix 19.1 Menu overview (SmartBlue app navigation) 19.1.1 FieldPort SWA50 with Bluetooth Pages and parameters that are marked with 1) are only shown for Endress+Hauser devices. A0043770 Endress+Hauser... - Page 76 *71654356* 71654356 www.addresses.endress.com...
