TI01468S/04/EN/01.19
unbekannt
2019-09-30
Application

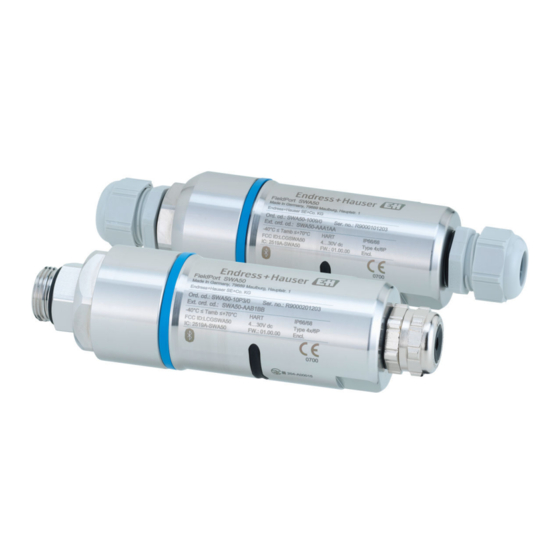

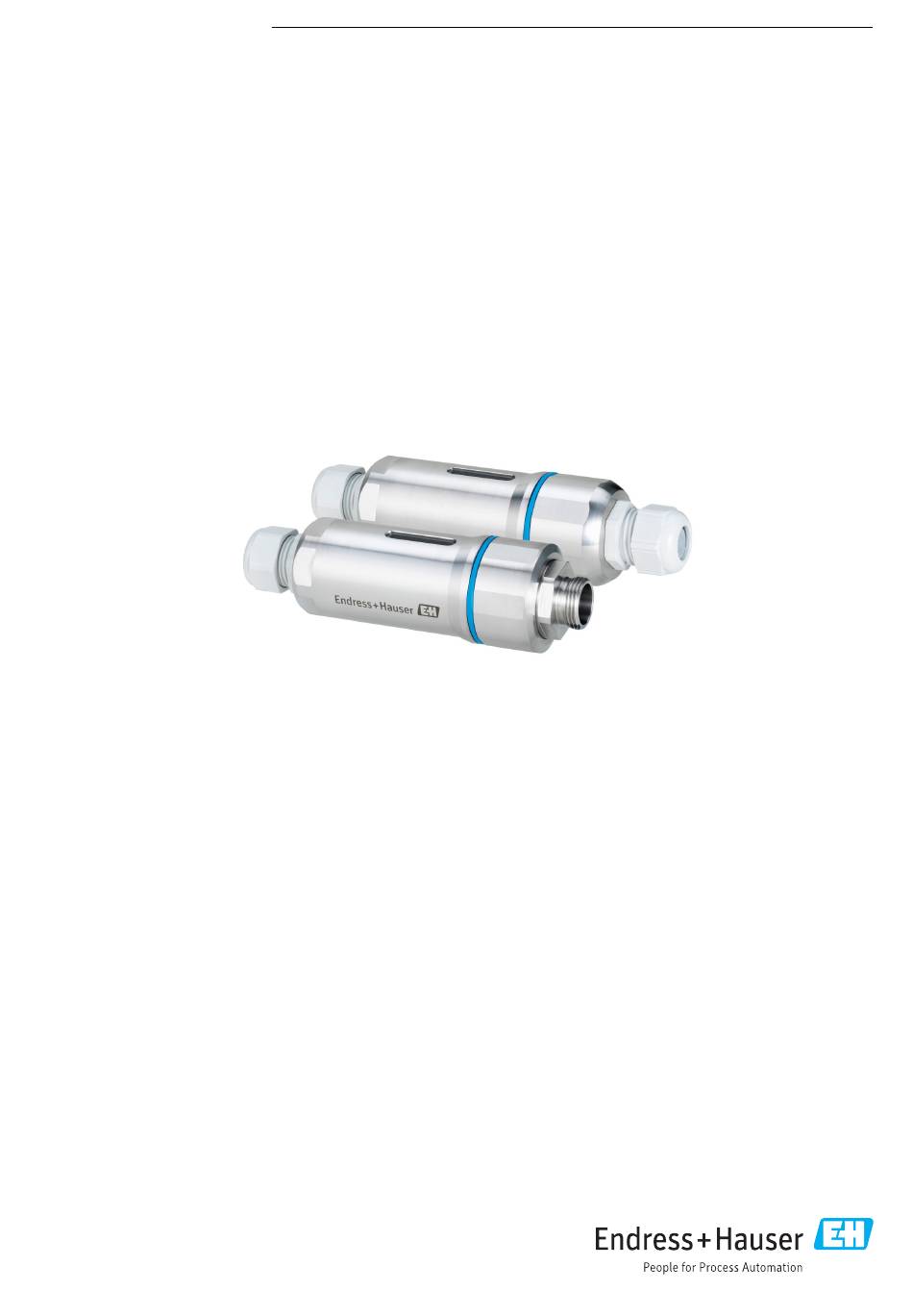

The FieldPort SWA50 converts the HART signal of the
connected HART field device to a reliable and encrypted
Bluetooth® or WirelessHART signal. The FieldPort SWA50 can
be retrofitted to all 2-wire and 4-wire HART field devices in
both hazardous and non-hazardous areas. The robust stainless
steel housing allows the FieldPort SWA50 to be installed even
in harsh industrial environments.
The combination of the Bluetooth® version of the SWA50 with
a FieldEdge SGC200 delivers fast and easy connection to the
Netilion Cloud.
The WirelessHART version of the SWA50 can be easily
integrated into any WirelessHART network.
Products
Technical Information
FieldPort SWA50
Intelligent Bluetooth® and/or WirelessHART adapter for
all HART field devices
Solutions
Your benefits
• Reliable transmission of the measured process values
through the connected FieldPort SWA50 via encrypted
Bluetooth® or WirelessHART communication
• Easy to retrofit all 2-wire or 4-wire HART field devices
• Easy connection of all HART field devices to the
Netilion Cloud
• Loop-powered adapter, without affecting the process signal
• Easily accessible, wireless, onsite diagnostic information of
connected HART field device
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser FieldPort SWA50
Summary of Contents for Endress+Hauser FieldPort SWA50
- Page 1 • Easy to retrofit all 2-wire or 4-wire HART field devices both hazardous and non-hazardous areas. The robust stainless • Easy connection of all HART field devices to the steel housing allows the FieldPort SWA50 to be installed even Netilion Cloud in harsh industrial environments.
-
Page 2: Table Of Contents
Europe ........FieldPort SWA50 grounding ..... . 9 Canada and United States . -
Page 3: About This Document
Function and system design Function The FieldPort SWA50 converts the HART signal of the connected HART field device to a reliable and encrypted Bluetooth® or WirelessHART signal. The FieldPort SWA50 can be retrofitted to all 2-wire or 4-wire HART field devices. -
Page 4: System Architecture Of Swa50 Bluetooth Version
SWA50 Bluetooth version Netilion 1 System architecture of SWA50 Bluetooth version HART field device with FieldPort SWA50, remote mounting Encrypted wireless connection via Bluetooth® HART field device with FieldPort SWA50, direct mounting FieldEdge SGC200 (not included in scope of delivery) -
Page 5: System Architecture Of Swa50 Wirelesshart Version
Field devices with HART 5, HART 6 or HART 7 and protocol version Output (wireless interface) Communication interface Bluetooth Bluetooth IEEE 802.15.1 In addition to the FieldPort SWA50, there can be only one other HART master in the HART loop of the SWA50. Endress+Hauser... -
Page 6: Transmission Frequency Band
• Status as per NAMUR NE 107 of HART field device if available The HART field device must be connected. The following data can be read out via the Bluetooth version of the FieldPort SWA50 and the Endress+Hauser FieldEdge SGC200(Netilion Cloud): •... -
Page 7: Power Supply
Electrical connection 2-wire HART field device with passive current output Some grounding concepts require a shielded cable. If connecting the cable shield to the FieldPort SWA50, you must use an EMC cable gland. See ordering information, feature 060, option B. OUT+ –... -
Page 8: Terminal Assignment
PLC or transmitter" electrical connection version, you can use core cross-sections of 0.75 mm² at maximum. If larger core cross-sections are required, we recommend remote mounting. FieldPort SWA50 without HART field device With this connection version, you can preconfigure the FieldPort SWA50. OUT+ – IN–... -
Page 9: Fieldport Swa50 Grounding
The grounding clip provided by the customer must meet the following requirements: • Diameter: approx. 40 mm • Stainless steel • If the FieldPort SWA50 is used in a hazardous area: suitable for hazardous areas as per DIN EN 62305, Sheet 3 and DIN EN 62561-1 A0041808 ... -
Page 10: Power Consumption
• < 9.3 V at 22.5 mA loop current To select the supply voltage, pay attention to the voltage drop via the FieldPort SWA50. The remaining voltage must be high enough to enable the start-up and operation of the HART field device. -
Page 11: Mounting Instructions
Mount within the visual range of a WirelessHART adapter, such as SWA50, SWA70, or a WirelessHART gateway, such as SWG70. Lightning protection • Do not mount the FieldPort SWA50 at the highest point of the system. • Ground the housing of the FieldPort SWA50. Endress+Hauser... -
Page 12: Environment
FieldPort SWA50 Environment Ambient temperature range • –40 to +85 °C (–40 to +185 °F) • Ex version for temperature class T4: –40 to +70 °C (–40 to +158 °F) –40 to +85 °C (–40 to +185 °F) Storage temperature range... -
Page 13: Weight
FieldPort SWA50 "Direct mounting" version 33.6 (1.32) 79.5 (3.13) 113.1 (4.45) 132.1 (5.20) A0040483 13 Dimensions of "direct mounting with M20" version in mm (in) Connection adapter with M20 thread Transmission window M20 cable gland 33.6 (1.32) 79.5 (3.13) 113.1 (4.45) -
Page 14: Human Interface
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. Ex approval All explosion-protection data are provided in separate Ex documentation. -
Page 15: Ordering Information
Various accessories are available for the device, and can be ordered with the device or at a later stage from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser Sales Center or on the product page of the Endress+Hauser website: www.endress.com. - Page 16 FieldPort SWA50 A0043411 16 Alignment options via support bracket Various mounting positions on support bracket By rotating the support bracket Dimensions 165 (6.50) 81 (3.19) 87 (3.43) A0043313 17 Dimensions of mounting bracket – pipe mounting Endress+Hauser...
-
Page 17: Supplementary Documentation
All explosion-protection data are provided in separate Ex documentation. The relevant Ex documentation is delivered with the Ex devices as standard. The Ex documentation is also available dependent documentation in the Downloads area of the Endress+Hauser website. for SWA50 Standard documentation for... -
Page 18: Standard Documentation For Swg70
Changes or modifications made to this equipment not expressly approved by Endress+Hauser SE+Co. KG may void the FCC authorization to operate this equipment. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 19 FieldPort SWA50 Changes or modifications made to this device that are not expressly approved by Endress+Hauser may void the FCC authorization to operate this device. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons.
- Page 20 www.addresses.endress.com...
