Summary of Contents for Pentair F Series

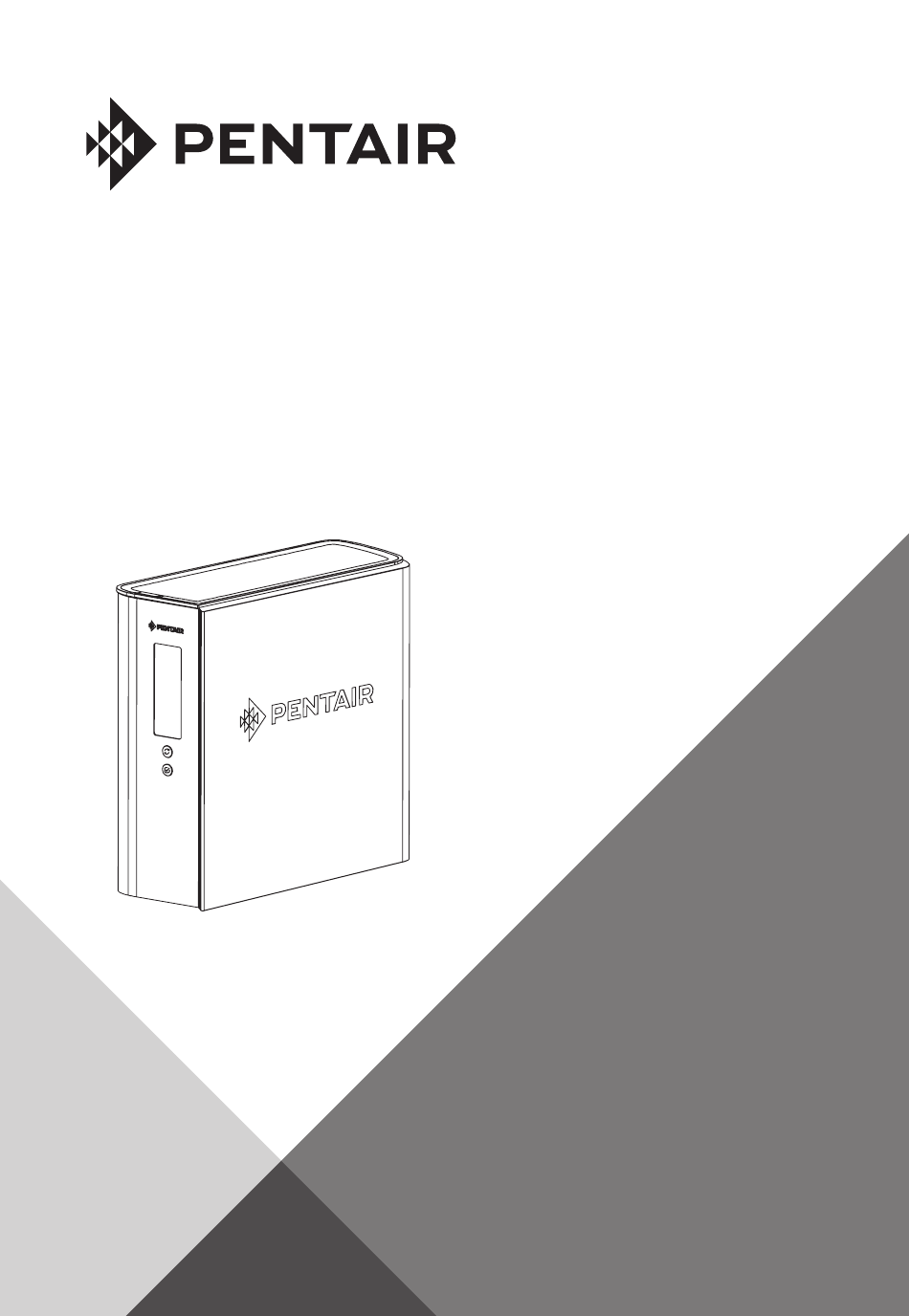

- Page 1 F-SERIES 3-STAGE WATER FILTRATION SYSTEM USER’S MANUAL Applicable Models: F1, F2...
-
Page 2: Table Of Contents
CONTENTS 1. Precautions and General Notes ................2 2. Parts Included ...................... 3 3. Product Information ..................... 3 3.1. Product Structure ..................3 3.2. Product Specifications and Performance ............4 3.3. Introduction to Main Parts ................5 4. Installation and Commissioning................6 4.1 Schematic Diagram.................. -
Page 3: Precautions And General Notes
CAUTION Please read this instruction manual carefully before installing and using this product. If you encounter any problems that are not addressed in this manual, please contact your local Pentair's distributor. WARNING: • Do not use with water that is microbiologically •... -
Page 4: Parts Included
2. PARTS INCLUDED See checklist below for the parts included with your system: Accessory Pack Contents: SERIAL PART UNIT QUANTITY NUMBER 1. Blue ⅜” pipe ------------ 1.5m Water filtration unit 2. White ⅜” pipe ---------- 1.5m (including 3 filter elements) 3. -
Page 5: Product Specifications And Performance
Fibredyne Carbon Fibredyne Carbon Block Block Stage 3 Carbon Block Ultrafiltra�on Cartridge NOTE: - Due to con�nuous product improvement, technical specifica�on subject to change without no�ce. Please refer to the product nameplate. - Filtra�on performance was tested at Pentair lab. -
Page 6: Introduction To Main Parts
3.3 Introduc�on to Main Parts Component Name Specifica�ons Es�mated Lifespan* Polypropylene Filter Material: Polypropylene Polyspun 6 – 12 Months Polyspun (PP) Filter (PP) Cartridge Micron Ra�ng: 5 µm Dimensions: Φ 90 mm X 305 mm Advanced Fibredyne Filter Material: Composite Carbon filter 6 –... -
Page 7: Installation And Commissioning
4. INSTALLATION AND COMMISSIONING 4.1. Schematic Diagram Faucet Countertop Rubber washer Metal washer To faucet for Plastic fastener Wiring harness everyday water use Lock washer connected to faucet Fastening nut Three-way ball valve Adaptor Wall 3/8" Tubing (white) 3/8" Tubing (Blue) Angle Valve 4.2. -
Page 8: Operating Instructions
5. OPERATING INSTRUCTIONS 5.1. Daily Use 1) Turn on the water faucet to dispense filtered • When the number and the last bar of the useful water. lifespan progress bar turn solid red, it indicates that the useful lifespan of the corresponding 2) Blue faucet light indicates filter element is filter element has reached, and the filter normal and can dispense filtered water... -
Page 9: Maintenance
6. MAINTENANCE 6.1. Filter Cartridge Replacement 6.1.1. Steps to replace filter cartridge: 6.1.2. Steps to reset the filter lifespan monitoring system: 1) Open the side cover of the water filtration unit. 1) Resetting the filter element: 2) Lift the locking bar up for the corresponding After replacing the filter element, the useful filter element and remove the used filter lifespan of the filter element needs to be reset... -
Page 10: Troubleshooting
Re-install and tighten three-way ball valve as required. Place system into operation and check for leaks. If leaks persist, turn off the water supply and contact Pentair’ s authorized distributor. Leaks at the connection point to the quick Relieve line pressure by turning off the water supply to the system then opening faucet until water flow stops. -
Page 11: Terms And Conditions Of Warranty
TERMS AND CONDITIONS OF WARRANTY The warranty period is 1 year from the date of purchase. During the warranty period, Pentair (Company) is responsible for providing free warranty for faults arising from normal operation and use according to the installation manual and user's manual. - Page 12 371 He Shan Road | New District Suzhou | Jiangsu 215011 | China | pentair.com No. 371, He Shan Road, All Pentair trademarks and logos are owned by Pentair. All other brands or product names are trademarks or registered marks of their respective owners. New District Suzhou Jiangsu 215011 China Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice.
