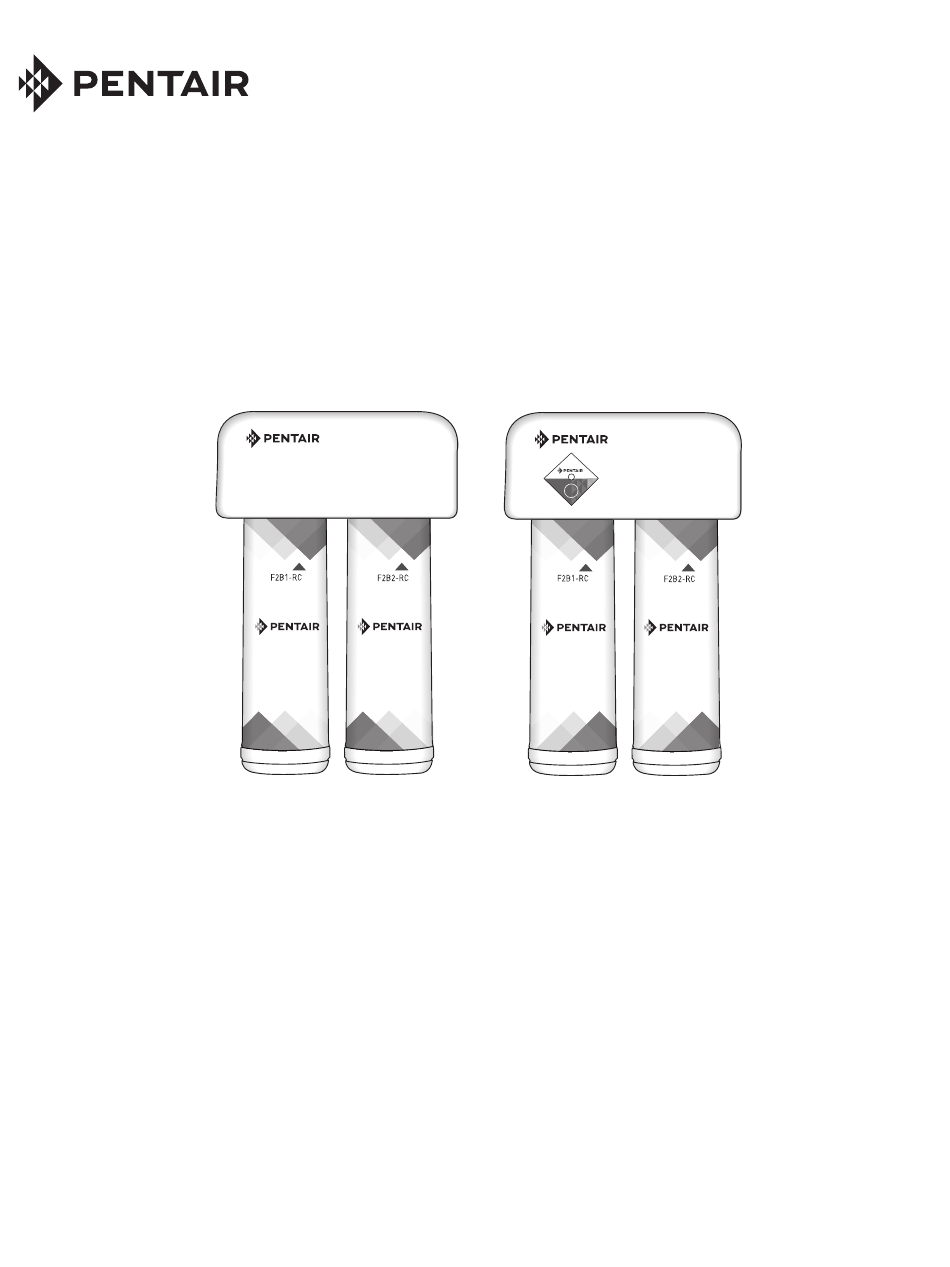

- Page 1 F2000-B2B, F2000-B2M FILTRATION SYSTEM INSTRUCTION MANUAL waterpurification.pentair.com...
-
Page 2: Specifications
Dimensions: ............12.5" x 8" x 5.25" • 3/32" drill bit (317mm x 203mm x 133mm) Weight: Model: F2000-B2B (system only) ......4.5 lbs (2 kg) Model: F2000-B2M (system only) ......4.5 lbs (2 kg) PARTS INCLUDED • Filter System with Cartridges • Installation Hardware Kit •... -
Page 3: Installation
C. Mark hole with center punch. Use a 1/4" drill bit to drill pilot hole. D. Use a 3/4" drill bit and drill a hole completely through sink. E. Smooth rough edges with a file. F2000-B2B, F2000-B2M Filtration Systems Instruction Manual • 3... - Page 4 The system should be mounted to a firm, solid WARNING: 7” (178 mm) surface that is able to support the weight of the system. Inlet Outlet Filter 16.25” (413mm) 10.75” (273 mm) Filter 4 • F2000-B2B, F2000-B2M Filtration Systems Instruction Manual...
- Page 5 This air within the water will disappear within a few weeks after installation. INSTALLATION IS NOW COMPLETE. F2000-B2B, F2000-B2M Filtration Systems Instruction Manual • 5...
-
Page 6: Filter Cartridge Replacement
Ensure the tubing is fully pushed past the fitting O-rings. Place system into operation and check for leaks. If leaks persist, turn off the water supply and contact Technical Support at 1-800-279-9404. 6 • F2000-B2B, F2000-B2M Filtration Systems Instruction Manual... -
Page 7: Battery Replacement
Battery replacement will not reset the 12 month timer. If reset is required, press and hold key for 5 seconds. F2000-B2B, F2000-B2M Filtration Systems Instruction Manual • 7... -
Page 8: Replacement Parts
Installation Kit 2 & 3 Stage 244960* Faucet 4003530 Cover, 2 Stage 4003641 Cartridge Timer *Image may be different than actual faucet For replacement parts, contact your nearest Pentair distributor or call 800.279.9404 8 • F2000-B2B, F2000-B2M Filtration Systems Instruction Manual... -
Page 9: Performance Data
** NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia by mechanical means. The Model F2000-B2B and F2000-B2M are Tested and Certified by NSF International aganist NSF/ANSI Standard 42 and 53 for the reduction of substances specified on the Performance Data Sheet. - Page 10 10 • F2000-B2B, F2000-B2M Filtration Systems Instruction Manual...
- Page 12 For a detailed list of where Pentair trademarks are registered, please visit waterpurification.pentair.com/brands. § Pentair trademarks and logos are owned by Pentair plc or its affiliates. Third party registered and unregistered trademarks and logos are the property of their respective owners.
