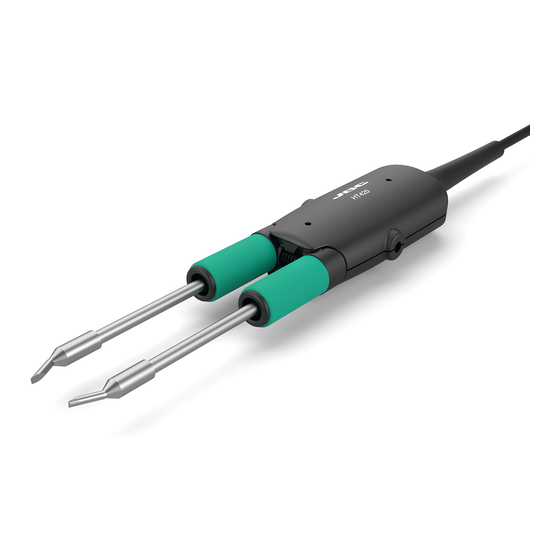

- Page 1 INSTRUCTION MANUAL HT420 Thermal Tweezers...
-
Page 2: Packing List
This manual corresponds to the following reference: HT420-A Packing list The following items should be included: Thermal Tweezers ........1 unit Screw Driver ..........1 unit Ref. HT420-A Ref. 0023074 Manual ............1 unit Ref.: 0030512... - Page 3 - color gris Features 130 mm 130 mm DI, DDE, DME* 100 mm Control Unit 80 mm 60 mm HDTS* Stand for HT470 Heavy Duty Thermal 50 mm Tweezers 40 mm 0011283* Stand Cable C420* HT420 Cartridges Thermal Tweezers *not included...
-
Page 4: Changing Cartridges
Changing Cartridges For a safe cartridge exchange, unplug the tool or turn the station off. 1. Unlocking 2. Removing srews Unlock the cartidge fixing screws. Place the cartridges in the two outer grooves and pull the tweezers to remove the cartridges from the tool. -
Page 5: Compatible Cartridges
When using the customized cartridges like ref. C420283 or ref. C420286, place the tweezers vertically, as shown in the image (2). Compatible Cartridges Heavy Duty Thermal Tweezers HT420 workS with C420 cartridges. Find the model that best suits your soldering needs at www.jbctools.com. Customized Chip... - Page 6 Wiper The integrated wiper offers different ways to clean the cartridge tips. Tapping Wiping Sponge Tap gently to remove excess Use the slots to remove the The softest cleaning method. solder. remaining particles. Keep the sponge damp with distilled water when working to avoid tip wear.
-
Page 7: Maintenance
100 mm tool’s status. - Periodically check all cables. 80 mm - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. 60 mm Safety 50 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. -
Page 8: Specifications
10.91 x 2.87 x 1.97 in / 0.386 lb Complies with CE standard ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
