Summary of Contents for TCL 27R834U

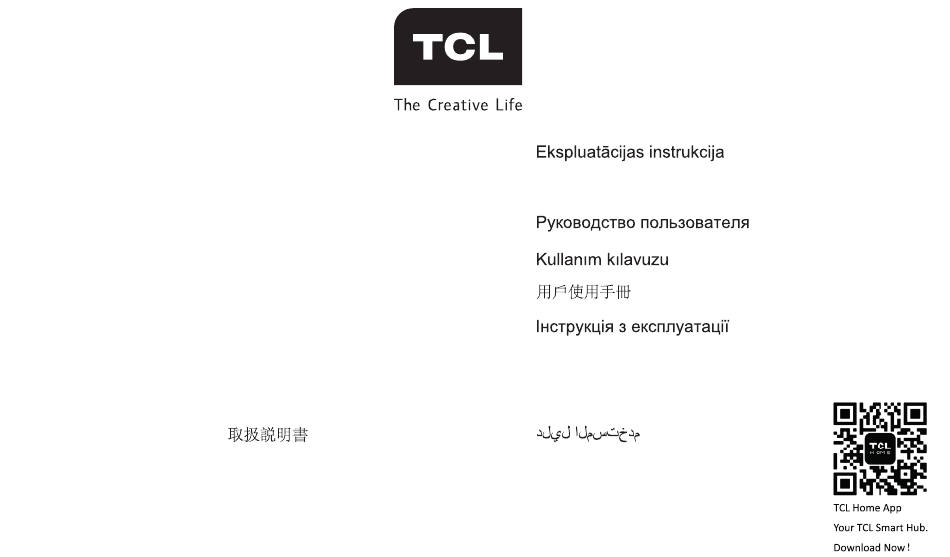

- Page 1 用户使用手册 User manual Användarhandbok Manuel de l’utilisateur Bedienungsanleitung Manuale dell'utente Manual de utilizador Manual del usuario Manual de utilizare Panduan Pengguna 사용자 설명서 Felhasználói kézikönyv Gebruikershandleiding...
-
Page 2: Table Of Contents
Table of Contents Important Information Using the Monitor ………………… 3 ……………………… 18 Important safety instructions Connections …………… 3 ………………………………… 18 Using Electrical Power Connect to the monitor ……………………… 5 …………………… 18 Advise on Eye Health Monitor terminal description ……………………… 5 ……………... -
Page 3: Important Information
When the equipment is not used for a long period of time, disconnect the power supply to prevent damage from electric shock and TCL King Electrical Appliances (Huizhou) Co., Ltd. bears no abnormal power supply voltage during thunderstorms. responsibility for accidents or damages caused by unauthorized •... - Page 4 Important safety instructions ESD regulation CAUTION RISK OF ELECTRIC SHOCK DO This apparatus meets ESD performance criteria. In case the apparatus NOT OPEN does not recover in Ethernet connection mode or USB playing mode due to CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 5: Using Electrical Power
Using Electrical Power This product should be used with the type of power supply specified on • Place the Monitor at a distance of 20~28 inches (approximately the label. If you are uncertain about the type of power supply available, 50~70 cm) from your eyes. -
Page 6: Product Disposal And Recycle
Product Disposal and Recycle Information of Disposal of Old Product [Other Countries outside the European Union] These symbols are only valid in the European Union. If you Your product is designed and manufactured with high quality materials wish to dispose of these items, please do so in accordance with and components, which can be recycle and refused. -
Page 7: Preparing And Assemble
- For the damage or injury by unauthorized components, the product warranty will not cover. - Generic cables not certified by TCL, display or image noises on the screen may occur. - Illustration in this user manual represent typical procedures, it may have differences of vary monitor Do not use excessive force to tighten screws, otherwise damage may caused to the monitor. -
Page 8: What's In The Box
What's in the Box Please check the following items when you unpack the box, and keep the package in case you need to transport or ship the monitor in future. -
Page 9: Installing The Monitor
Installing the Monitor Setup stand & base... - Page 10 Setup stand & base...
- Page 11 Setup stand & base...
- Page 12 Setup stand & base...
-
Page 13: Adjusting Viewing Angle
Adjusting viewing angle 27” -5~15˚ 90mm... - Page 14 Adjusting viewing angle 90mm -5~15˚ 34”...
- Page 15 Adjusting viewing angle...
-
Page 16: Wall Mounting
Wall mounting Warning Never place a monitor set in an unsatable location. A monitor set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: - Check that the wall can support the weight of the monitor and wall mount assembly. - Follow the mounting instructions provided with the wall mount. - Page 17 Wall mounting Wall mounting VESA Screws Torque 27/34” 100mm 100mm M4x8mm--4pcs < 1.2N.m...
-
Page 18: Using The Monitor
Using the Monitor Connections Connect to the monitor 1. Before connecting to the monitor ensure that your computer/laptop on the state of turning off 2. Connect the monitor cable to the right plot of your computer/laptop. 3. Connect one end of the power cord with the AC Input. 4. -
Page 19: Monitor Terminal Description
Connections Monitor Terminal Description Note: Button and connector locations may vary according to monitor model. Monitor power input socket A port that can upload data from USB-B to your computer/laptop Universal Serial Bus(USB) interface HDMI signal access port Display Port. DP signal access port Type-C input interface (Type-C output: 5VDC/3A, 9VDC/3A, 12VDC/3A, 27R83U... -
Page 20: Joystick Bottom
Joystick Bottom Function description Here are the navigation direction buttons and the Power button on the bottom of the monitor that you may use frequently. Instruction Turn On Short press the middle of the button. Turn Off Long press the middle of the button for 3 seconds. Light’s off when turning off the monitor Light turns orange when monitor on standby state Indicator Light... - Page 21 Function description • You can turn on/off the monitor. Middle key • When the on monitor state of ON : short press to (Press the middle of navigation menu. joystick bottom) • When the monitor on the state of ON: short press to Left key navigation menu.
-
Page 22: Osd Function Menu
OSD Function Menu Game mode This section describes how to optimise the screen display better for playing games. Step 1 Step 2 Step 3 Step 4 Step 5 Step 6 • Select FreeSync Premium • Turning on: FreeSync Premium • Toggle •... - Page 23 OSD Function Menu Display This section allows you to adjust basic settings or more options of picture. Adjustment/ Specification Step 1 Step 2 Step 3 Step 4 Setting Instuction Automatically adjust backlight and contrast • Select Local Dimming • To set as High, Medium, •...
- Page 24 OSD Function Menu Color This section allows you to adjust basic settings or more options of picture. Setting Step 1 Step 2 Step 3 Step 4 Step 5 • Press • Select Color • Press Power / Color • Press joystick button •...
- Page 25 OSD Function Menu Input This section allows you to select input sources. Setting Option Specification Step 1 Step 2 Step 3 Step 4 Source: • Press joystick button • Press to select HDM1/ HDM2/ DP/ TYPE-C PIP Size: • Press joystick button •...
- Page 26 OSD Function Menu Input This section allows you to select input sources. Step 3 Step 4 Setting Option Specification Step 1 Step 2 Source: • Press joystick button • Press to select HDM1/ HDM2/ DP/ TYPE-C Display Switch: • Select Input Split the screen •...
- Page 27 OSD Function Menu Scenario Mode This section allows you to select picture modes. Setting Step 1 Step 2 Step 3 Step 4 Step 5 • Select Scenario Mode • Press • Press Power / to confirm Scenario Mode ·Press joystick button •...
-
Page 28: Specification
Specification General Specification Model 27R834U 34R83Q Product Type Mini LED Gaming MNT Mini LED Gaming MNT Panel Active Size(Inch) Visual Range(mm) 596.736(H)×335.664(V) 797.22(H)×333.72(V) Pixel Pitch(mm) 0.0518(H)×0.1554(V) 0.07725(H)×0.23175(V) Color 1.07G (8 bit + FRC) 1.07 (8bit +FRC) DCI-P3 95% DCI-P3 97%... - Page 29 Specification General Specification 27R83U 34R83Q Model HDMI, DP, TYPE-C, USB-A, USB-B, Headphone (The exact number of terminals are Terminals based on the actual product.) Power Consumption 0.5W 0.5W (Sleep/Off) Width (active area): 613mm Width (active area): 807mm Product Size Height (active area): 359mm Height (active area): 360mm Total Height (with stand&base): 524mm Total Height (with stand&base): 517mm...
-
Page 30: Standard Signal Mode
Specification Standard Signal Mode 27R83U 800×600 1024×768 1280×720 1280×1024 640×480 720×400 720×480 (60/72/75Hz) (60/70/75Hz) (50/60Hz) (60/75Hz) (60/72/75Hz) (70Hz) (60Hz) HDMI 3840×2160 1440×900 1680×1050 1600×900 1920×1080 2560×1440 (30/60/120/ (60/120Hz) (60/120Hz) (60/120Hz) (50/60/120Hz) (60/120/144Hz) 144Hz) 640×480 720×400 720×480 800×600 1024×768 1280×720 1280×1024 (60/72/75Hz) (70Hz) (60Hz) - Page 31 Specification Standard Signal Mode 34R83Q 640×480 720×400 720×480 800×600 1024×768 1280×720 1280×1024 (60/72/75Hz) (70Hz) (60Hz) (60/72/75Hz) (60/70/75Hz) (50/60Hz) (60/75Hz) HDMI 1440×900 1680×1050 1920×1080 2560×1440 3440×1440 3440×1440 (60/120Hz) (60/120Hz) (50/60/120Hz) (60/120Hz) (50/60/100Hz) (30/60Hz) 640×480 720×400 720×480 800×600 1024×768 1280×720 1280×1024 (60/72/75Hz) (70Hz) (60Hz) (60/72/75Hz)
-
Page 32: Other Information
Other Information Troubleshooting The colour or sound is abnormal: Please check the following list before requesting service. • Reset colour or sound to factory default settings in setting. The power indicator is off: • Make sure the power cord is properly inserted in the power outlet and Note: I f the above suggestions do not solve your technical issue, please power socket on monitor. -
Page 33: Legal Statement
Third party services may be changed, suspended, removed, terminated or INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY interrupted, or access may be disabled at any time, without notice, and TCL FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR makes no representation or warranty that any content or service will remain IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A available for any period of time.
