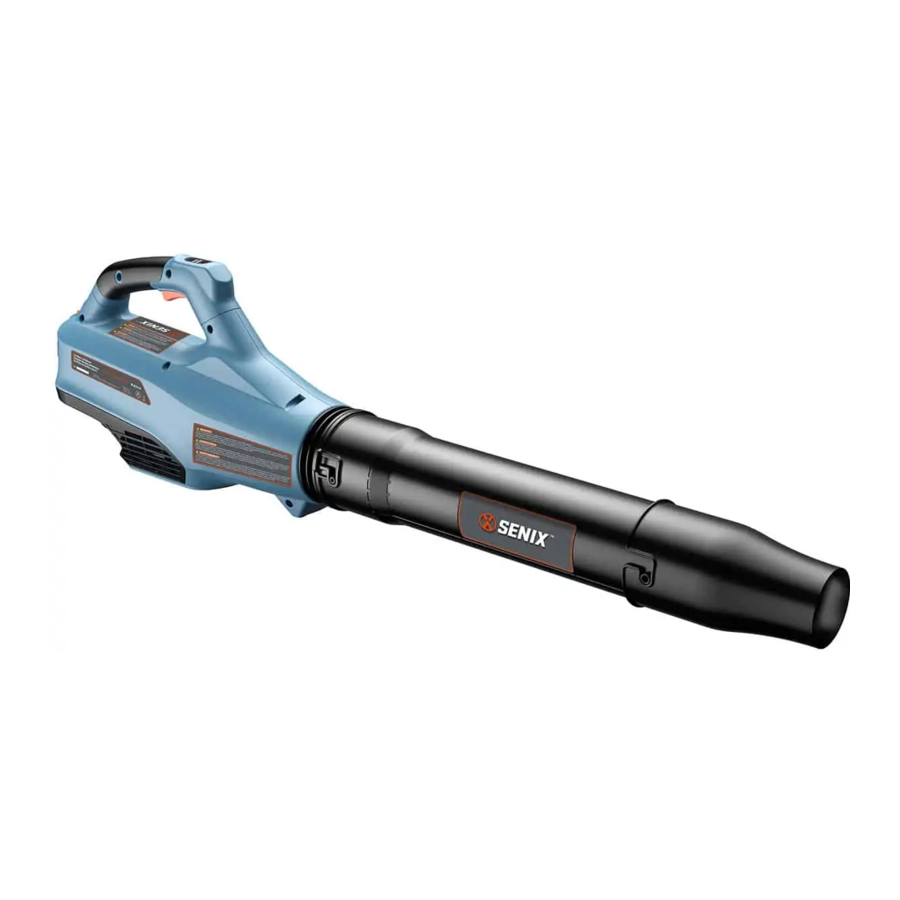

Senix BLAX5-M, BLAX5-M-0 - Blower Manual

TECHNICAL DATA

COMPONENT LOCATION

1. Carrying handle
2. Trigger switch
3. Speed control
4. Turbo switch
5. Blower tube
6. High pressure nozzle tip
7. Battery holder

ATTACH/REMOVE THE BATTERY

Only use a Senix-approved battery and charger.
Note: Charge the battery fully before first use.

To insert the battery, slide it into the back of the unit until a "click" is heard. Make sure the attery is fully inserted and latched into position. To remove the battery, press the release button and slide the battery out.

STARTING / STOPPING THE UNIT

Do not insert or remove the battery while the trigger is pressed or while the unit is in motion.

Always wear safety glassess. Wear a filter mask if the operation is dusty. Use of proper gloves and proper footwear is recommended when working outdoors.

Use the blower only in daylight.

To start the blower, squeeze the trigger switch. To stop, release the switch trigger.

1. Trigger switch
2. Turbo switch

There are two speed buttons on top of the blower.

• The bottom button moves the blower into HIGH SPEED (123 MPH).
• The top button moves the blower into TURBO SPEED (129 MPH).

Pressing either button once will engage the selected speed. Pressing it a second time will disengage the speed and return it to low speed (100 MPH).
Note: Turbo speed has been designed to shut off automatically after 35 seconds then revert back to low speed.

MAINTENANCE

Remove the battery before inspecting, adjusting, performing maintenance, or cleaning the unit.

CLEANING

1. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sust, and debris. Do not spray, wash, or immerse the air vents in water.
2.
   Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong solvents or detergents on the plastic housing or plastic components. Certain household cleaners may cause damage or cause a shock hazard.

STORAGE

Examine the unit thoroughly for worn, loose or damaged parts. If you need to repair or replace a part, contact Senix customer service at 1-800-261-3981.

• Clean the unit before storing or transporting. Be sure to secure the unit while transporting.
• Remove the battery pack before storing. Charge the battery completely before longterm storage.
• Store the tool out of reach for children and other unauthorized persons in a wellventilated, dry and frost- free environment.
• Protect the machine against dusts and moisture.

Shorting the battery terminals together may cause burns or a fire

• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
• Store the unit in a clean, dry place. Cover it in order to provide added protection.

PARTS

EXPLODED VIEW

No.	Part #	Description	Qty.
2	202024002216	Right Handle	1
3	202024002217	Left Handle	1
4	202016003458	Left Housing	1
5	202016003459	Right Housing	1
6	202030001440	Left Air Inlet	1
7	202030001441	Right Air Inlet	1
8	202003001618	Battery Latch	1
9	207019900070	Spring	1
10	202004000832	Switch Trigger	1
11	207019900098	Spring	1
12	207019900444	Spring	1
13	201026000267	Spring Support	1
14	102003000423	Electrical Assembly	1
15	202999001729	Speed Control	1
16	202003001623	Button	2
17	207310100279	Screw	10
18	301200007	Heat Shrink Tube	1
20	202054000025	Blow Tube	1
21	202999001730	Nozzle	1
22	101001000604	Motor Assembly	1
22.1	202023000038	Plug	1
22.2	207320100008	Hex Nut With Flange	1
22.3	201999000882	Washer	1
22.4	207109900085	Axial Fan	1
22.5	207310100715	Screw	4
22.6	201112000002	Collector	1
22.7	101001000604	Motor	1
22.8	202167000001		1
22.9	207310100422	Screw	3
23	199080000005	Diffusion Tube Assembly	1
23.1	202117000005	Diffusion Tube	1
23.2	202006000079	Damper Screen	1
23.3	299005000118	Noise Insulator	4
24	207310100271	Screw	2

For replacement parts, email: parts@SENIXtools.com.

TROUBLESHOOTING

Use this table to see possible solutions for possible problems with the pole saw. If these suggestions do not solve the problem, see Warranty.

SAFETY SYMBOLS

To reduce the risk of injury, user must read instruction manual.

	Wear ear protection.
	Wear eye protection.
	Wear dust mask.
	Wear hand protection.
	Wear non-slip safety footwear.
	Avoid power lines, use in dry conditions.
	Do not expose to rain.
	Thrown objects can ricochet and result in personal injury or property damage.
	Keep all bystanders at least 50 ft. away.
	Indicates danger, warning or caution. Precautions that involve your safety.

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints, Crystalline silica from bricks and cement and other masonry products and Arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical:
  Work in a well ventilated area, And work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. dust masks that are specially desined to filter out microscopic particles.

This product can expose you to chemicals including lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)

To reduce the risk of fire, electric shock, or injury:

1. Do not leave appliance when battery in. Remove battery when not in use and before servicing.
2. Do not use outdoors or on wet surfaces;
3. Do not allow to be used as a toy. Close attention is necessary when used by or near people or pets.
4. Use only as described in this manual. Use only manufacturer's recommended attachments.
5. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
6. Do not handle appliance with wet hands
7. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
8. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
9. Turn off all controls before removing battery.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

SAVE THESE INSTRUCTIONS

ADDITIONAL SAFETY INSTRUCTIONS

• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a fire
• Keep firm footing and maintain good balance at all times. Do not overreach. Overreaching can result in loss of balance.
• Do not use the tool if the power switch does not turn it ON or OFF. Any tool that cannot be controlled with
• the switch is dangerous and must be repaired.
• Carefully inspect your appliance prior to use and follow all label and marking instructions.
• Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
• Do not put any object into the tool's openings. Do not use the tool with any opening blocked; keep openings free of dust, lint, hair, or any other object that may reduce air flow.
• Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string, which can be thrown or become entangled in the machine.
• Service on the product must be performed by qualified repairpersonnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.
• This blower is intended for household use only. Commercial use of this product is prohibited and will void the manufacturer's warranty.
• Never run the unit without the proper equipment attached. Always ensure the blower tube is properly installed.
• Always grasp the handle when operating the unit, only operate the machine in its intended orientation.
• Do not handle charger, including charger plug, and charger terminals with wet hands
• Do not charge battery in rain, or in wet locations.
• Do not use battery-operated appliance in rain.
• Remove or disconnect battery before servicing, cleaning, or removing material from the appliance.
• Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.
• Do not open or mutilate the battery. Release electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• Exercie care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

SPECIFIC PRODUCT SAFETY RULES

• The blower has been designed to clear light debris and leaves from hard surfaces – not for clearing grassed areas.
• When operating the unit, never point the blower nozzle in the direction of people or pets or in the direction of windows. Use extra caution when blowing debris near solid objects, such as trees, automobiles, and walls.
• Be sure to secure the unit when transporting it.
• Never douse or squirt the unit with water or any other liquid. Clean the unit after each use as described in the cleaning and storage section.

BATTERY PACK SAFETY WARNINGS

• Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on can cause accidents.
• Use only original battery packs intended specifically for this machine. Use of any other battery packs may create a risk of injury and fire.
• Do not open the battery. Danger of short-circuiting.
• Protect the battery against heat (e. g., against continuous intense sunlight and fire) water and moisture. Danger of explosion.
• In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
• Use the battery pack only in conjunction with this product and/or product family. This measure alone protects the battery against dangerous overload.
• The batteyr can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
• Do not short-circuit the battery. There is danger of explosion.
• Store and use the battery only within a temperature range between –20°C and 45°C. As an example, do not leave the battery in the car in summer. Occasionally clean the venting slots and contact pins of the battery pack using a soft, clean and dry brush.
• If the battery is empty and the product is switched off automatically, do not continue to press the ON/ OFF switch.

BATTERY CHARGER SAFETY WARNINGS

Read all safety warnings and instructions before using the charger. Only for indoor use!

• This appliance is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• Only charge the Lithium-Ion battery pack with a capacity of 2.5Ah (B25X5 Lithium-Ion battery cells) as mentioned in this instruction manual. Do not charge non-rechargeable batteries.
• The battery and charger must be placed in a well ventilated area.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not operate the battery charger on easily flammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger process can pose a fire during the charging hazard.
• Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly.

WARRANTY

To locate your nearest Senix service provider call toll free at 1-800-261-3981 or email us at service@senixtools.com.
*Original purchase receipt may be required for proof of purchase
For customer service contact us toll free at 1-800-261-3981 or Senixtools.com.
YAT USA, Inc. 9048 E Bahia Dr, suite 105, Scottsdale, AZ 85260.
