Summary of Contents for Senix BLVE12-M

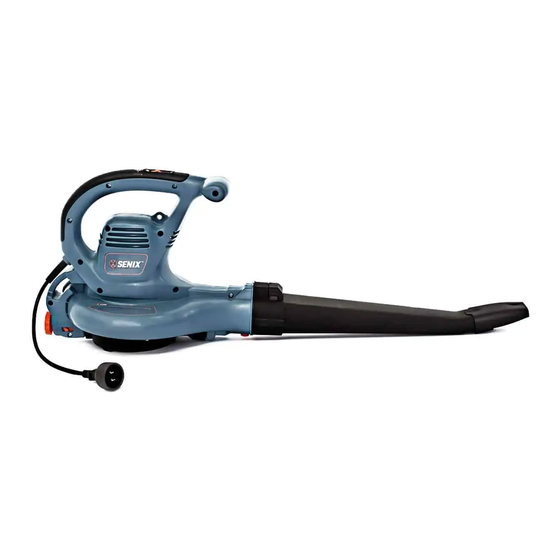

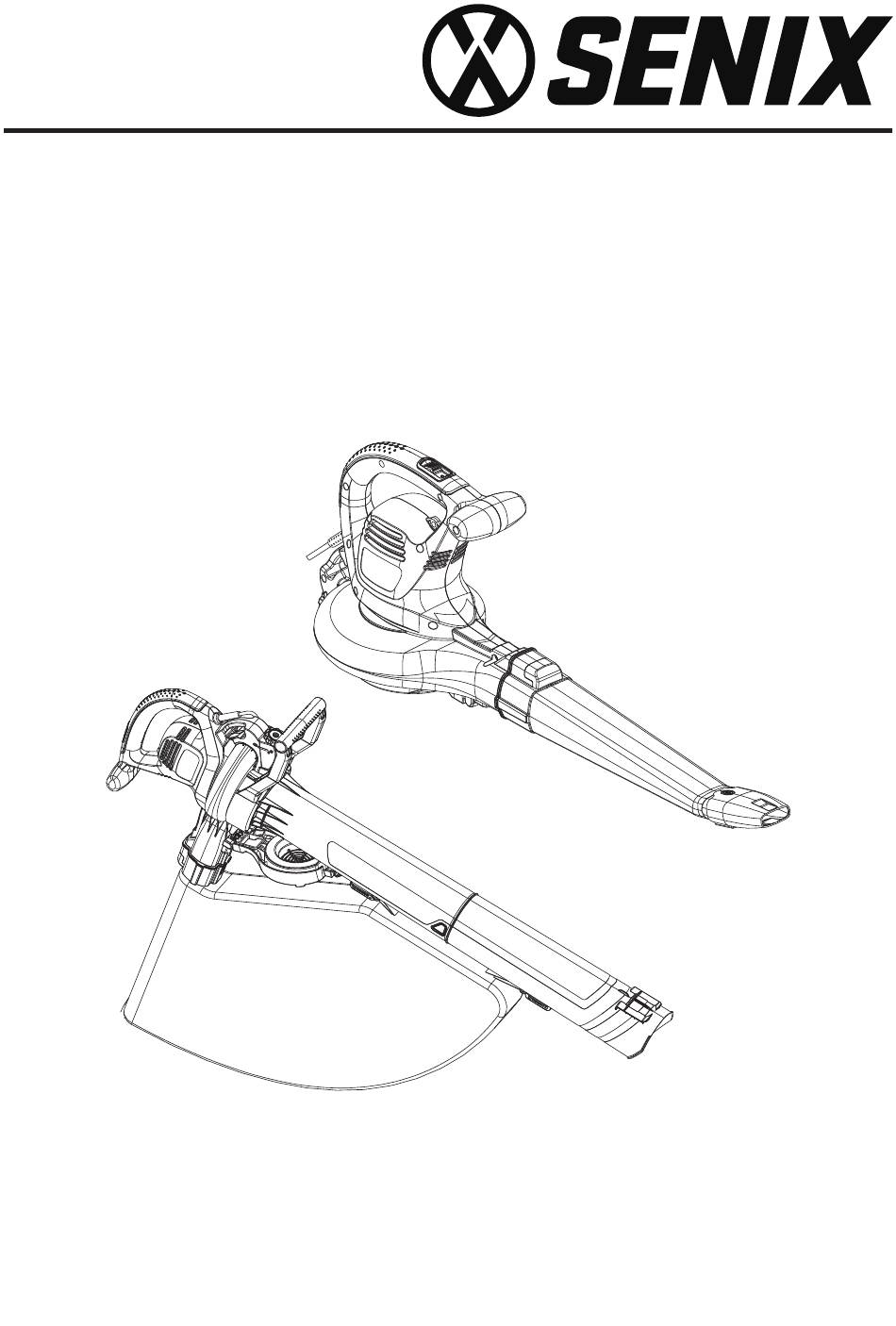

- Page 1 12 Amp Motor Electric Blower Vacuum Operator’s manual Model : BLVE12-M For customer support, please call 1-800-261-3981 or send email to: Service@senixtools.com 8458-A072012001-001 SAVE THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Wear non-slip safety footwear. Avoid power lines, use in dry conditions. SPECIFICATIONS* Model BLVE12-M Rated Voltage 120V ~60Hz Rated Current Motor Type Universal Motor No Load Speed... -
Page 3: Safety
SAFETY GENERAL SAFETY RULES c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. WARNING: Carrying power tools with your finger on the switch or energising power tools that have the switch on invites Read all safety warnings and all instructions. - Page 4 SPECIFIC SAFETY RULES 3. Use correct attachments for the product and ensure they are in good condition. • Do not tough the rotating parts inside the machine! 4. Keep tight grip on the handles/gripping surface. The rotating parts can result in serious personal injury. 5.
- Page 5 Securing extension cord WARNING: This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product! CAUTION:...
-
Page 6: Component Location
COMPONENT LOCATION KNOW YOUR Blower/Vacuum/Mulcher Handle Lock knob ON/OFF switch Vacuum inlet cover Auxiliary handle Blower tube Plug Blower concentrator nozzle Auxiliary handle Rear vacuum/mulcher tube Front vacuum/mulcher tube Collective bag WWW.SENIXTOOLS.COM... -
Page 7: Assembly
ASSEMBLY 4. To remove the blower tube, turn the ON/OFF power WARNING: switch to the OFF (O) position and disconnect the tool from the power supply (Fig. 3). Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheading therein before set up or use of this product. - Page 8 2. Rotate the lock knob to unlock the cover (The 5. Insert the collection bag adaptor into the blower air indicator is on the far left position,Fig. 6). outlet until the collection bag is securely fastened (Fig. 9), then make the bag hook the strap holder on the two sides of the tube (Fig.
- Page 9 Fig. 12 NOTE: It may be necessary to remove the blower tube or vacuum/mulcher tubes to clear a blocked tube or impeller. 8. Make sure to disconnect the unit from the power supply before attempting to clear any obstructions. The indicator of the lock knob must be entered into black area first, then the machine can be running(Fig.
-
Page 10: Operation
OPERATION OPERATING TIPS WARNING: WARNING: Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual Use the blower/vacuum/mulcher only in daylight or good including all text under subheading therein before set up artificial light. or use of this product. •... - Page 11 AIR VENTS • As the bag fills, suction power will decrease. When this happens, turn the power switch to the OFF (0) position Never cover air vents. Keep them free from obstructions and unplug the unit from the power supply. Remove and debris.
-
Page 12: Maintenance
MAINTENANCE NOTE: Devices for retaining extension cords are WARNING: commercially available should you wish to purchase Read the ENTIRE IMPORTANT SAFETY one. INFORMATION section at the beginning of this manual including all text under subheading therein before maintenance this product. Normal maintenance, replacement or repair of emission control devices and systems may be performed by any qualified repair establishment or individual with original... -
Page 13: Parts
PARTS EXPLODED VIEW PARTS Part # Description Qty. 202041000012 Flat Nose 202054000039 Blowpipe 199068000012 Dust Bag Assembly 202030001729 Shroud 202999001785 U type male terminal block 202154000009 Bend Tube 299010000031 Dust Bag 199049000033 Duct Components 202024002548 Handle 202155000033 Blowpipe 202155000034 Blowpipe For replacement parts, email: parts@SENIXtools.com. -
Page 14: Troubleshooting
2. Slide the power switch to the ON (1) position OFF (0) position. 3. Defective power switch. 3. Contact Senix customer service at 1-800-261-3981. 4. Vac tubes are not correctly 4. Check vac tubes and ensure that they are correctly installed. -
Page 15: Warranty
WARRANTY LIMITED TWO-YEAR WARRANTY FOR TWO YEARS from the original date of retail purchase this Senix product is warranted against defects in materials or workmanship on power tools and chargers. Defective product will receive free repair.* FOR TWO YEARS from the original date of retail purchase this Senix product is warranted against defects in materials or workmanship on batteries.
