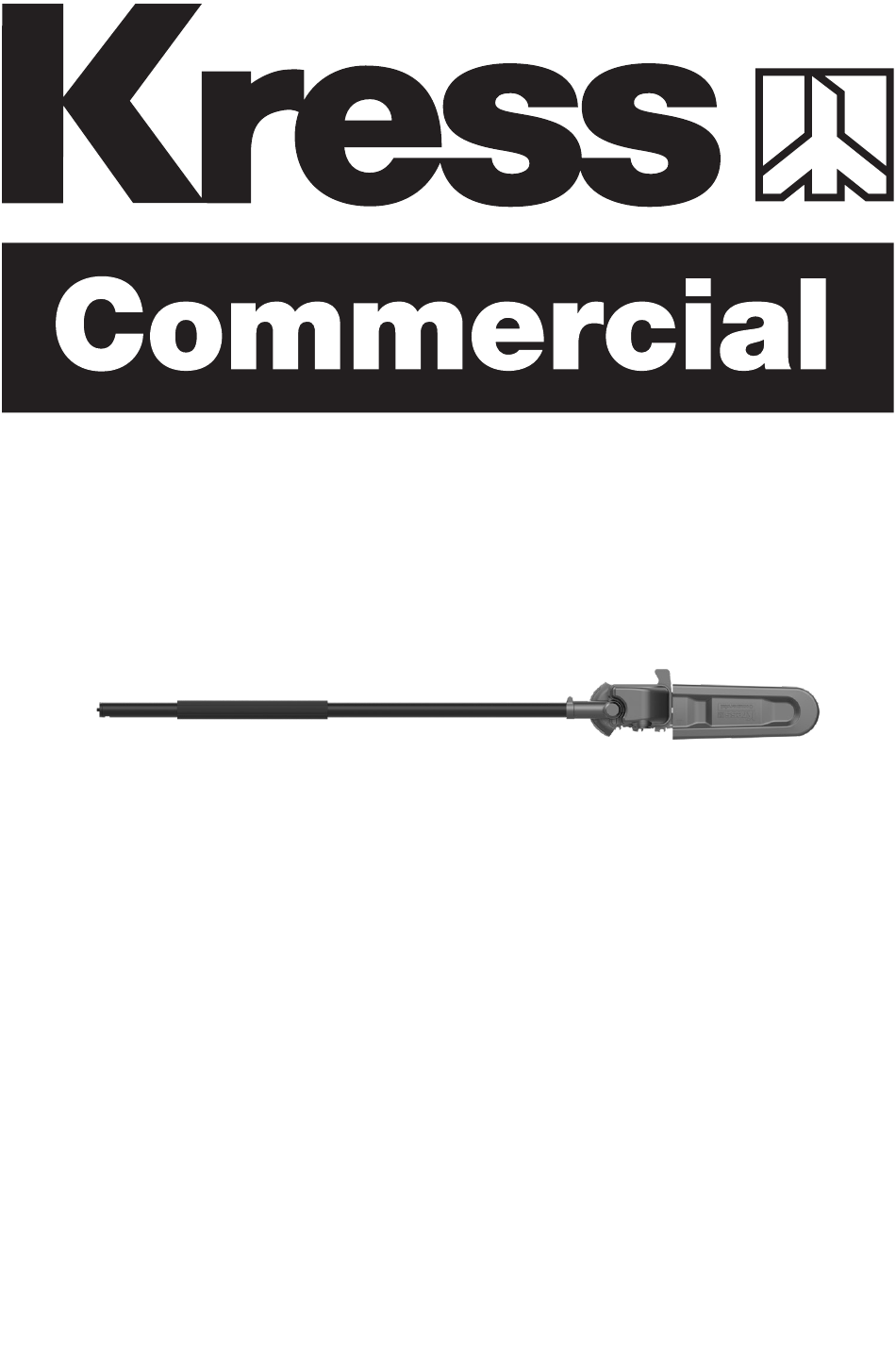

SAFETY AND OPERATING MANUAL
Pole Saw attachment
KAC361

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAC361 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KRESS KAC361

Summary of Contents for KRESS KAC361

  • Page 1 SAFETY AND OPERATING MANUAL Pole Saw attachment KAC361...

  • Page 2: Table Of Contents

    Customer Service Team for assistance. We are confident you will enjoy working with your Kress product for years to come. INTENDED USE In conjunction with KAC104 - Power Head, this pole saw is designed for pruning and trimming branches beyond arms reach.

  • Page 3: Component List

    COMPONENT LIST SHAFT DRIVE COVER HEX NUT GUIDE BAR CHAIN CHAIN TENSIONING SCREW PROTECTIVE SCABBARD DRIVE SPROCKET CHAIN DIRECTION SYMBOL BAR PAD BAR LOCATING STUD EXTENSION SHAFT * * Not all the accessories illustrated or described are included in standard delivery.

  • Page 4: Product Safety

    ORIGINAL INSTRUCTION a) Stay alert, watch what you are doing and use common sense when operating a power PRODUCT SAFETY tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol GENERAL POWER TOOL or medication.
  • Page 5 Recharge only with the charger specified by Kress. Do not use any charger other than 6. SERVICE that specifically provided for use with the a) Have your power tool serviced by a qualified equipment.
  • Page 6 q) Do not use battery packs of different manufacture, size or type. r) Keep the battery away from microwaves and high pressure. s) Warning! Do not use non-rechargeable Li-I on batteries. Li-Ion battery. This product has been SAVE THESE INSTRUCTIONS marked with a symbol relating to ‘separate collection’...

  • Page 7: Assembly & Operation

    ASSEMBLY & OPERATION NOTE: Before using the tool, read the instruction book carefully. ASSEMBLY WARNING! Do not install the battery pack before it has been completely assembled. Always use gloves when handling the chain. CHAIN AND GUIDE BAR ASSEMBLY 1. Loosen the hex nut to remove the drive cover. Slide the chain in the slot around the guide bar.
  • Page 8 chain tension. ● Cutting edges on chain are sharp. Use protective gloves when handling chain. ● Maintain proper chain tension always. A loose chain may jump out of guide bar groove. This may injure operator and damage chain. A loose chain will cause the chain, bar, and sprocket to wear rapidly.

  • Page 9: Lubrication

    4. Avoid dirt or debris entering oil tank, refit oil fill cap and tighten by turning clockwise until hand tight. It is important to use bar and chain lubricant (not automotive oil) that is formulated to perform over a wide temperature range with no dilution required.
  • Page 10 CUTTING 2. Before cutting a high branch, pay particular attention to the likely path of the falling branch. IMPORTANT: Check oil tank periodically. WARNING: Do not stand directly below a branch Check recent replaced chain tension every being cut. Keep bystanders far away. Do not stand time you replace the battery pack.

  • Page 11: Transportation

    15 cm 5 to 10 cm 3. Use both hands to grip the pole saw and cut 2. Move a few inches (30% of c) farther up on limb. branches. Make second cut from above limb. Continue cut until you cut limb off. 3.
  • Page 12 CONDITIONS WHICH REQUIRE CHAIN AND • Before moving from one place to another • Before servicing GUIDE BAR MAINTENANCE: • Before changing accessories or attachments, • Saw cuts to one side or at an angle. such as saw chain and bar •...
  • Page 13 3. File all the cutters on one side of the guide bar. 4. Turn the chainsaw around and file all of the cutters on the opposite side. 5. Ensure that the length of all cutting teeth is same. To ensure efficient, safe and smooth cutting, file the depth gauge height to 0.65mm.

  • Page 14: Cleanning

    CLEANING 1. Switch off the pole saw and remove the battery. 2. Do not use aggressive detergents or solvents. Clean the machine after use with a damp cloth dipped in mild detergent. 3. Keep battery connection free of dirt and debris, and clean with a soft and dry brush or cloth.

  • Page 15: Troubleshooting Table

    Chain worn out Replace chain properly Chain teeth are facing in the wrong Reassemble with chain in correct direction direction TECHNICAL DATA KAC361 Bar length 25 cm High: 17 m/s Chain speed Low: 13 m/s Oil tank capacity 160 ml...
  • Page 16 COMBINATIONS OF CUTTING ATTACHMENTS Cutting attachment KAC333-10''/25cm 0.043''/1.1mm 3/8 LP bar KAC302-10''/25cm 0.043''/1.1mm 3/8 LP chain KAC335-12''/30cm 0.043''/1.1mm 3/8 LP bar KAC304-12''/30cm 0.043''/1.1mm 3/8 LP chain Positec Australia Pty Limited 10 Corporate Blvd Bayswater , VIC 3153, Australia Copyright © 2024, Positec. All Rights Reserved. AR01756100...
