1600118 REV.A
ARC FLASH SHOCK-
ABSORBING LANYARD
Parts # 3400005 - 3400037
Instruction Manual
Do not throw instructions away.
Read and understand instructions
before using this equipment.
Contents
2
Product Specifications and Materials
2
2
2
2
3
3
4
4
5
Part Descriptions
6
7
8
9
10
11
Advertisement
Table of Contents
Related Manuals for Guardian 3400030
Summary of Contents for Guardian 3400030
-
Page 1: Table Of Contents

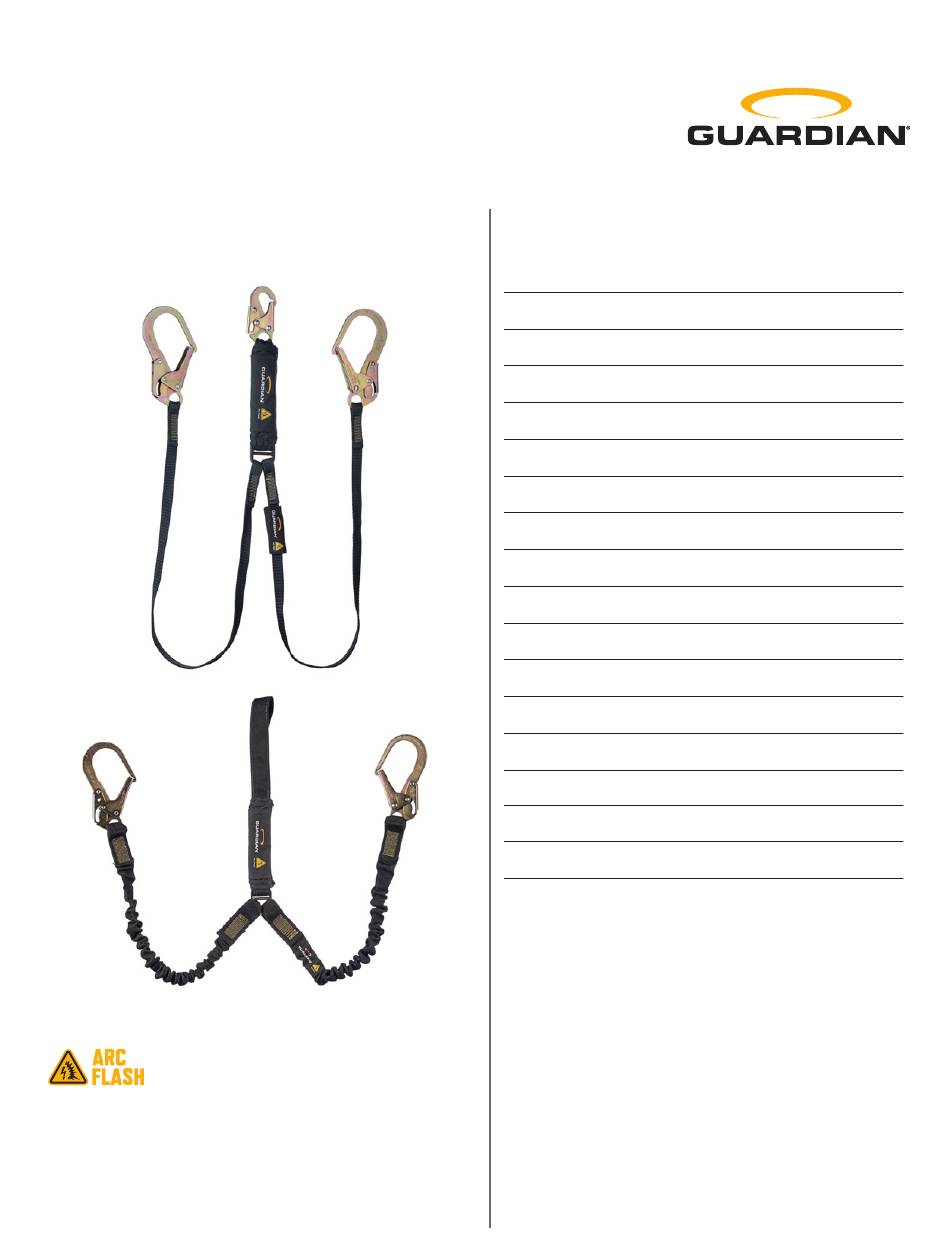

1600118 REV.A ARC FLASH SHOCK- ABSORBING LANYARD Parts # 3400005 — 3400037 Instruction Manual Contents Product Specifications and Materials Worker Classifications Applicable Safety Standards Permitted Weight Capacity Range Limitations Compatibility Maintenance, Cleaning, and Storage Specifications Materials Part Descriptions Installation and Use Safety Information Labels Diagrams... -
Page 2: Worker Classifications
English Product Specific Applications Applicable Safety Standards Fall Arrest: This lanyard may be used to Meets or exceeds: support a MAXIMUM 1 Personal Fall ASTM F887 Arrest System (PFAS) for use in Fall Arrest applications. Structure must withstand ANSI/ASSP Z359.13-2013 ... -
Page 3: Compatibility
English Compatibility When making connections to the harness, eliminate all possibility of roll-out. Roll-out occurs when interference between a connector and the attachment point causes the connector gate to unintentionally open and release. All connections must be selected and deemed compatible with the harness by a Competent Person. -
Page 4: Specifications

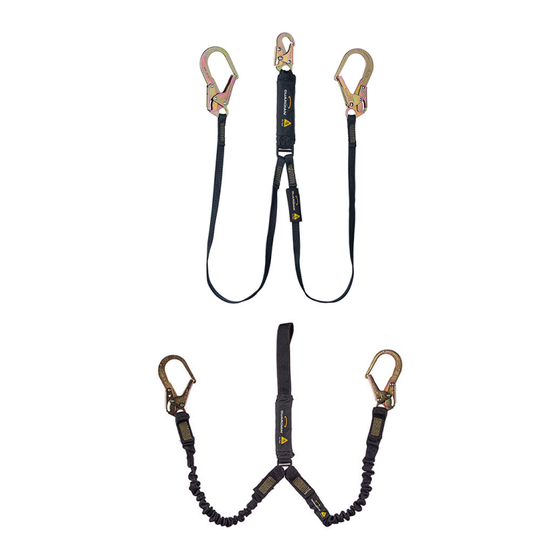

English Specifications Web Loop Harness Connector Various Leg Connectors Available (Some models) (Steel Rebar Hooks shown) Stretch Legs Fixed-Length Legs *Single-Leg Models Available Materials: Kevlar®, Nomex®, nylon, steel and aluminum *hook material will vary based on SKU... - Page 5 Single/ Harness Part # Length Arc Flash Lanyard Type Leg Connector Type Dual Leg Connector Type 3400030 6 ft (1,8 m) Shock-Absorbing Lanyard Single Steel Snap Hook Steel Snap Hook 3400031 6 ft (1,8 m) Shock-Absorbing Lanyard Single Aluminum Snap Hook...
-
Page 6: Installation And Use
Refer to WARNING! Never attach unused lanyard product labeling, or contact Guardian leg back to a harness D-ring, use only a Fall Protection if unsure of proper dedicated lanyard keeper. -
Page 7: Safety Information
Safety Information Harnesses and connectors selected must be compliant with manufacturer’s instructions, and WARNING! Failure to understand and must be of compatible size and configuration. Snap comply with safety regulations may result hooks, carabiners, and other connectors must in serious injury or death. Regulations be selected and applied in a compatible fashion. -
Page 8: Labels
Labels INSPECTION : WARNING! Arc Flash Initials: Date: Shock Absorbing 3.75” Lanyard: Follow manufacturer’s Make only safe Compliant with instructions provided with compatible connections. applicable ASTM F887, this lanyard at time of shipment from ANSI Z359.13-2013, OSHA manufacturer. Fully read 1910.140, OSHA For use only with other... -
Page 9: Diagrams
Diagram A - Fall Clearance Diagram B - Connections Fall clearance calculation shown below is based on a standing worker falling directly in-line with anchor point. SAMPLE CALCULATION ONLY. ALWAYS REFER CONNECTOR INSTRUCTIONS PRODUCT-SPECIFIC CLEARANCE INFORMATION. ... -
Page 10: Inspection
Inspection Prior to EACH use, inspect Lanyard for deficiencies, including, but not limited to, corrosion, deformation, pits, burrs, rough surfaces, sharp edges, cracking, rust, paint buildup, excessive heating, alteration, broken stitching, fraying, and missing or illegible labels. IMMEDIATELY remove Lanyard from service if defects or damage are found, or if exposed to forces of fall arrest. -
Page 11: Inspection Log
Inspection Log Serial No: Date of first issue: Model #: User: Date: Results/Condition: Inspected by: Next Inspection Date:... - Page 12 This warranty is not transferable to any other Guardian service and does not apply to product that is resold after having been put into service. No other person, firm, entity, or the like is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian’s products.
