- Page 1 ASSEMBLY INSTRUCTIONS COACHES PLATFORM Updated: 05/10/24...
-
Page 2: General Safety Rules
Coach’s Platform and its functions. If your manual is lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 800-457-5337. -
Page 3: Maintenance
Scratches and rust will occur on the pan from normal use. l Field equipment should be washed periodically with soapy water to maintain original surface finish. l Replace any damaged equipment with genuine Rogers Athletic parts. Failure to do so may result in unsafe equipment and/or personal injury. -
Page 4: Hardware List
Hardware List 3/8” x 2” Bolt 3/8” Lock Nut 3/8” x 1” Bolt (NOTE: Could be partially or fully threaded) 3/8” Washer Small U-Bolt Large U-Bolt... -
Page 5: Tools Needed
Tools Needed Box Wrench Size Utility Knife and/or Sockets 9/16”... - Page 6 STEP 1 Insert the top handle into the two uprights as shown.
- Page 7 STEP 2 Fasten the two uprights and the top handle with (QTY 4) 3/8” x 2” bolts and (QTY 4) 3/8” lock nuts.

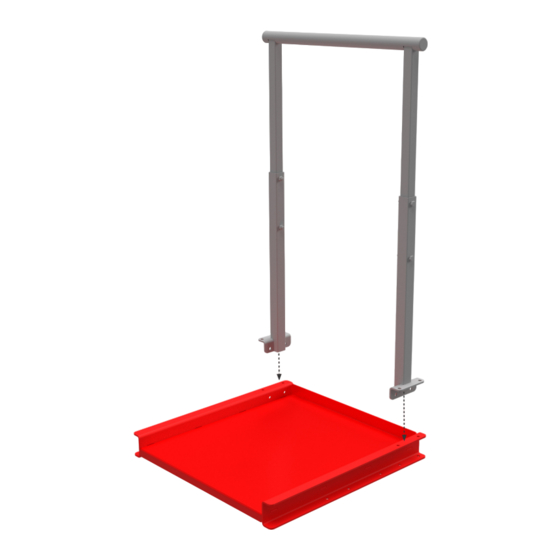

- Page 8 STEP 3 Line up the holes on the top handle assembly with the mounting holes on the platform base.
- Page 9 STEP 4 Secure the top handle assembly to the base using (QTY 8) 3/8” x 1” bolts and (QTY 8) 3/8” lock nuts.
- Page 10 STEP 5 (PowerLine Installation) If installing on a PowerLine sled secure to the sled connection link using (QTY 2) Small U-Bolts, (QTY 4) 3/8” Washers, and (QTY 4) 3/8” Lock Nuts. See above image for mounting holes to utilize for this installation.
- Page 11 STEP 5 (TEK / LEV / MOD Installation) If installing on a TEK, LEV, or MOD sled secure to the sled connection link using (QTY 2) Large U-Bolts, (QTY 4) 3/8” Washers, and (QTY 4) 3/8” Lock Nuts. See above image for mounting holes to utilize for this installation.
-
Page 12: Need Help
Need Help? For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available. Customer service hours are Monday through Friday from 8:00 a.m. to 5:00 p.m. Eastern Standard Time. info@RogersAthletic.com (800) 457-5337 Rogers Athletic Company 3760 W.
