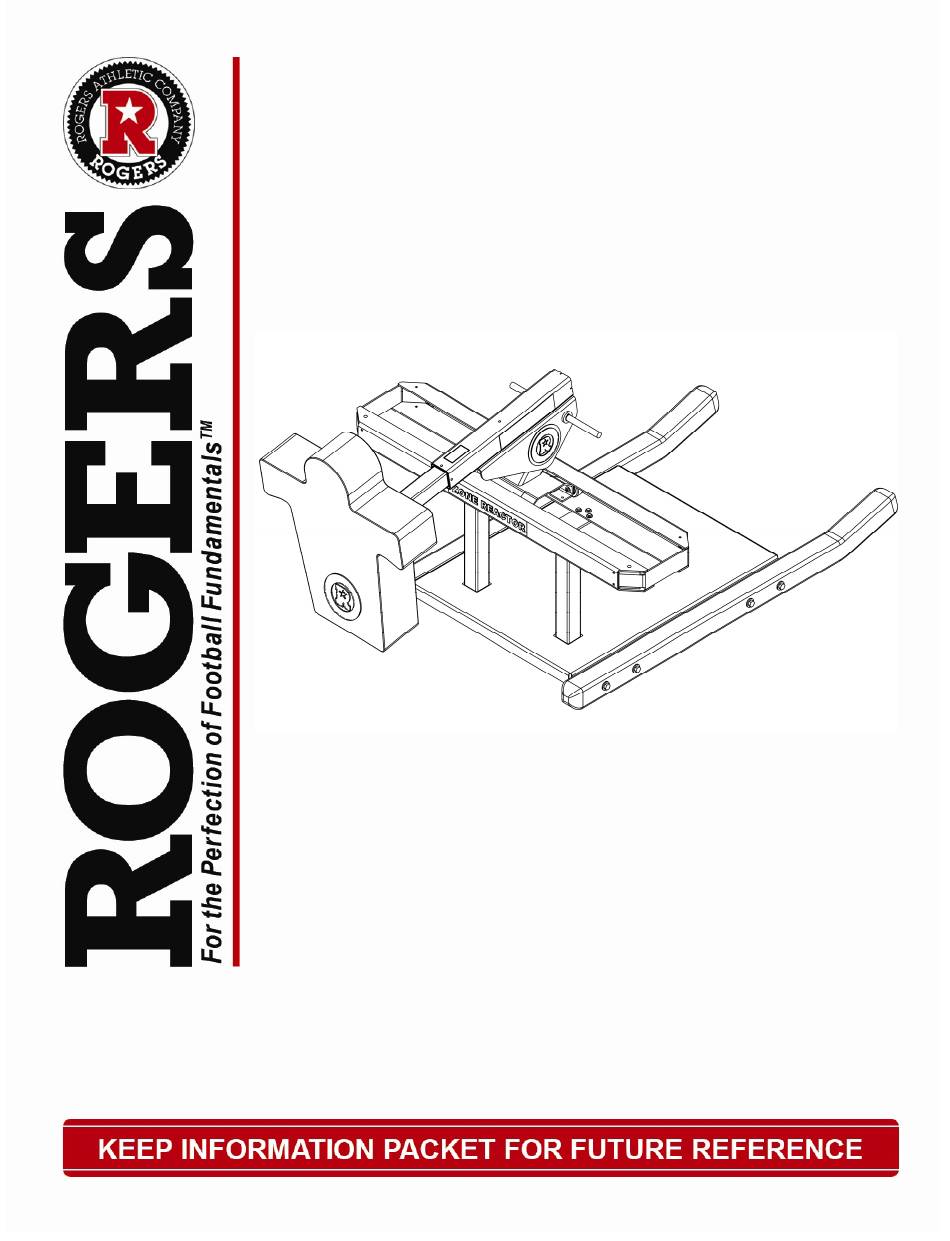

- Page 1 Product Information Packet Product Name: Zone Reactor Product Part Number: 410474 & 410678...
- Page 2 The care you give your Zone Reactor will greatly determine your satisfaction with its performance and service life. Careful study of this manual is encouraged to obtain a thorough understanding of your new Zone Reactor and its functions and maintenance.
- Page 3 Unit is designed for training multiple offensive and defensive drills with proper technique. Do not use the Zone Reactor for anything other than its approved purpose. Always wear a helmet when using the Zone Reactor.
- Page 4 Symbols Safety Alert: Precautions that involve your safety. Store this equipment in a secure, controlled area: Unsupervised and/or inappropriate use of this equipment could result in serious injury. Pinch Point Symbol: Failure to keep hands away from pinch points may result in personal injury. Crush Hazard Danger Label: Failure to keep hands clear of crush hazards may result in personal injury or dismemberment.
- Page 5 Rogers Athletic Zone Reactor Specifications Zone Reactor Weight: 475 lbs (215 kg) Height: 45” (115cm) Length: 84” (213cm) Width: 66” (168cm) Roll the Pad along a 5 foot track while players master reaction skills. Exclusive Lev Sled Head helps develop proper drive technique and adds another dimension to your drills for more realism.
- Page 6 Rogers Athletic Zone Reactor Specifications Zone Reactor Ground Mount Weight: 330 lbs Height: 47” (from ground level) Depth: 29” (without ram) Width: 66” Roll the Pad along a 5 foot track while players master reaction skills. Exclusive Lev Sled Head helps...
- Page 7 Slide Zone Reactor Insert Posts into the Reactor Base Sub Assembly tubes and fasten with (2) ½” x Install Zone Reactor Channels with (12) 3/8” x 1” 4” bolts, (2) ½” nuts, and (4) ½” washers. Be sure bolts, (12) 3/8” lock nuts, and (24) 3/8” washers.
- Page 8 The Lev Ram Unit comes with (3) nuts on the threaded rod at the end of the spring. Remove (2) nuts to use later. Install the Lev Ram Unit by inserting it spring side first into the Lev Head Unit. The threaded rod on the end of the spring fits through a hole at the back of the Head Unit.
- Page 9 (2) ½” x 4” bolts, (2) ½” nuts, and (4) ½” washers. Be sure insert posts are at the same Place post assembly in the ground mount sleeve and height. Remaining assembly is the same as Steps 2 tighten pinch bolt. thru 6 of Zone Reactor Assembly.
- Page 10 Take pad inside after use. Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package. Customer service hours are Monday through Friday from 8:00 a.m.
- Page 11 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 457-5337 Fax toll free (888) 549-9659 PIP410474...
