Product Information Packet
Product Name: Mobility Chutes
Product Part Number: 410475, 410537
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 410475 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rogers 410475

  • Page 1 Product Information Packet Product Name: Mobility Chutes Product Part Number: 410475, 410537...
  • Page 2: Table Of Contents

    Careful study of this manual is encouraged to obtain a thorough understanding of your new Mobility Chute and its functions and maintenance. If your manual becomes lost or destroyed, Rogers Athletic will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-457-5337.
  • Page 3: General Safety Rules

    General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS  Supervision of athletes while using the equipment is recommended. Horse play such as climbing on the machine or using the machine for unintended purpose can result in injuries.
  • Page 4: Symbols

    Symbols Safety Alert: Precautions that involve your safety Store this equipment in a secure, controlled area: Unsupervised and/or inappropriate use of this equipment could result in serious injury. Pinch Point Symbol: Failure to keep hands away from pinch points will result in personal injury Do Not Climb Warning Label: To reduce risk of injury, do not climb on field equipment...
  • Page 5: Technical Specifications

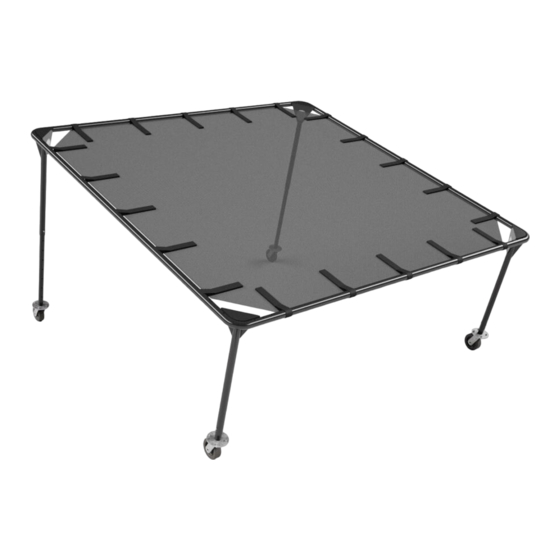

    Rogers Athletic Field Equipment Specifications Mobility Chutes Description Part Number Dimensions (L X W) Adjustable Height Mobility Chute 410475 10’ x 10’ 40” – 69” Mobility Chute 410537 10’ x 20’ 40” – 69” Designed to teach players to be in a...
  • Page 6: Assembly Instructions

    Assembly Instructions Bolt the casters onto the four leg assemblies using the 3/8” Bolts and Nuts. Insert the leg assemblies into the corner assemblies and lock their position with the given faspins.
  • Page 7 Note: This step will require two or more people. Connect the leg assemblies with the four frame tubes as shown above. Make sure that the leg assemblies are fully inserted into the frame tubes. Once complete, rotate the assembly onto the casters.
  • Page 8 Position the mesh top onto the assembly and fasten it with the Velcro loops. Adjust the height of the Mobility Chute by removing the fast pins from the leg tubes. Raise or lower the tubes to the desired height and reinsert the fast pin. The height can be adjusted from 40” to 69” in 4” increments.
  • Page 9: Maintenance

    Customer Service For parts or service contact Rogers Athletic Company. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the cover of this product information package.
  • Page 10 Rogers Athletic Company 3760 N. Ludington Drive Farwell, MI 48622 www.rogersathletic.com (989) 386-2950 (800) 457-5337 Fax toll free (888) 549-9659 PIPMobilityChute...
