Summary of Contents for Samson C02H

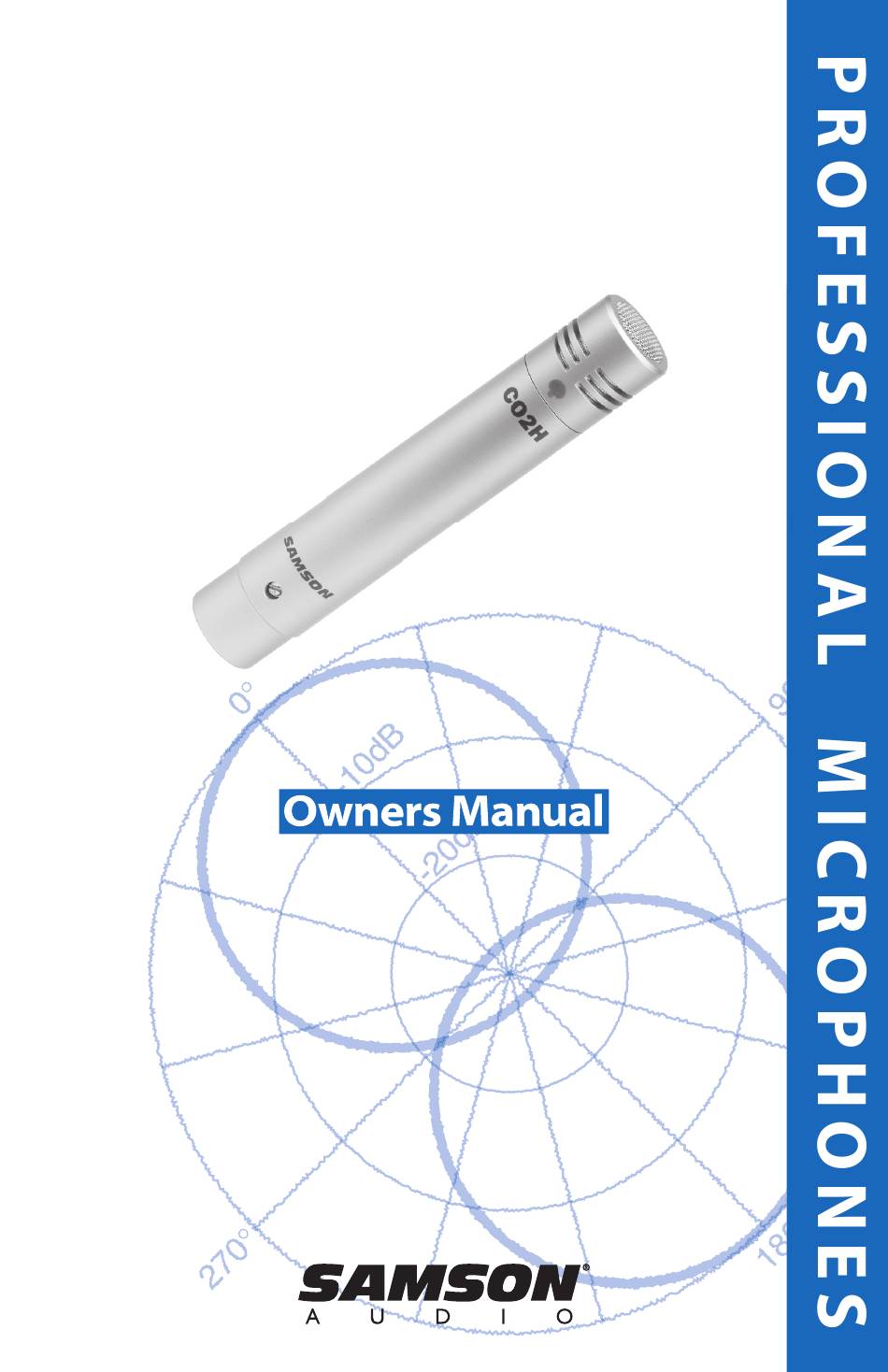

  • Page 1 C02H Condenser Microphone...

  • Page 2: Table Of Contents

    Table of Contents Introduction and Features Operating the C02H C02H Applications C02H Characteristics Wiring Guide Specifications Copyright 2006, Samson Technologies Corp. Printed February, 2006 Samson Technologies Corp. Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com...

  • Page 3: Introduction And Features

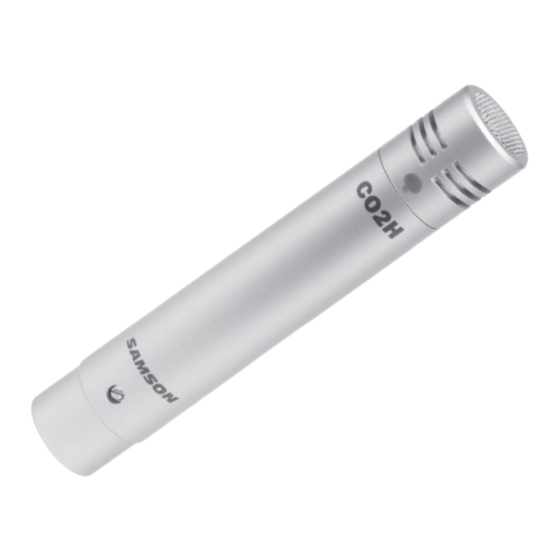

    The C02H is a pencil style condenser microphone that excels in both live performance and recording applications. Equipped with a linear frequency response for superior reproduction, it is also designed to withstand high sound pressure levels.

  • Page 4: Operating The C02H

    As you move the sound source further away from the microphone, the bass response will gradually roll off. • The C02H has a built-in wind shield which protects against most wind and breath- ing noise. Under adverse conditions, such as high winds, an optional foam wind- screen can be used.

  • Page 5: C02H Applications

    C02H in some typical applications. Hi Hat The C02H is a perfect microphone for miking Hi Hats thanks to its smooth top end and the ability to capture fast attack transients. Try placing the microphone over the edge of the top cymbal.

  • Page 6: C02H Characteristics

    Because the cardioid pattern utilized by the C02H is so good at reject- ing signal not coming from directly in front of the mic, you’ll find that use of the C02H greatly minimizes feedback problems.

  • Page 7: Wiring Guide

    Wiring Guide and Specifications C02H Frequency Chart The C02H can be connected to any mixer, mixer/amplifier, or mic preamp using a stan- dard microphone cable. As shown in the wiring diagrams below, connect the female XLR end directly to the C02H’s gold-plated connector and the other end (normally a male XLR end, although some mixers use 1/4"...
  • Page 8 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com...
