- Page 1 CM11B CM11B CM11B SURFACE MOUNT OMNIDIRECTIONAL BOUNDARY MICROPHONE CM11B_ownman.indd 1 1/17/05 9:53:59 PM...
- Page 2 CM11B_ownman.indd 2 1/17/05 9:54:04 PM...
-
Page 3: Table Of Contents
Powering the CM11B Microphone Placement and Positioning CM11B Polar Pattern CM11B Installation CM11B Frequency Response CM11B Specifications Copyright 2005, Samson Technologies Corp. Printed Jan. 2005 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com... -
Page 4: Introduction

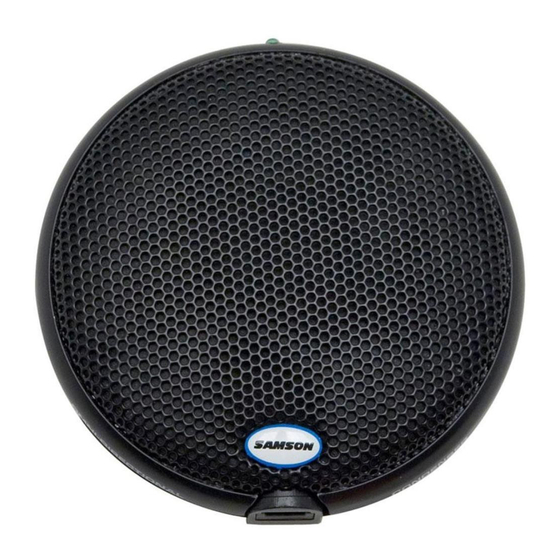

CM11B is omni-directional, it provides linear pick-up in a 360-degree pattern, allowing the unit to be placed on the center of a conference table to pick-up everyone seated. Although the CM11B is very small in size, all the electron- ics are contained within the body, eliminating the need for any external electronics pack. The CM11B is fitted with a standard 3-pin miniature male XLR connector, and a 30-foot mini XLR to standard XLR cable is included. -
Page 5: Cm11B Features
CM11B Features The Samson CM11B utilizes state-of-the-art microphone technology and is engineered to the finest detail. Here are some of its main features: • Half-omnidirectional - Condenser • Low-profile with onboard electronics and no external power supply • Mini XLR connector •... -
Page 6: Using The Cm11B
Microphone Placement and Positioning The CM11B was designed primarily for use on a flat surface like a conference table, hanging on a wall, or in a house of worship, on the alter. In order to maximize the sound quality, you must pay careful attention to the placement of your CM11B and how it is positioned for the instrument or vocalist that you are miking. - Page 7 (off axis) you will notice the low frequency response dropping off and the microphone will start to sound thinner. However, since the CM11B is omni directional it exhibits very little proximity effect. CM11B_ownman.indd 7...
-
Page 8: Cm11B Polar Pattern
In contrast, omnidirectional mics accept all signals regardless of where those signals originate (in front of the mic, behind it, to the side, etc.). The pickup pattern utilized by the CM11B is omnidirectional (as shown in the illustration below). -
Page 9: Cm11B Installation
CM11B Installation The CM11B can be installed on just about any flat surface. Simply place the unit on a conference table, alter or sound stage. For mounting flush to a wall or ceiling, you can use the mounting holes provided on the rear of the microphone. -
Page 10: Cm11B Frequency Response
CM11B Frequency Response CM11B_ownman.indd 10 1/17/05 9:54:06 PM... -
Page 11: Cm11B Specifications
CM11B Specifications Specifications �� Element Type Fixed charge condenser Polar Pattern Omni-directional Frequency response 30 - 18000Hz Sensitivity -39dBV/Pa Rated impedance 600 ohms 127dB Dynamic range 103dB S/N ratio 70dB Power Supply 9~52V phantom supply Power consumption CM11B_ownman.indd 11 1/17/05 9:54:07 PM... - Page 12 Samson Technologies Corp. • 575 Underhill Blvd. • P.O. Box 9031 • Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) • Fax: 516-364-3888 service@samsontech.com • www.samsontech.com CM11B_ownman.indd 12 1/17/05 9:54:07 PM...
