Summary of Contents for Samson C02

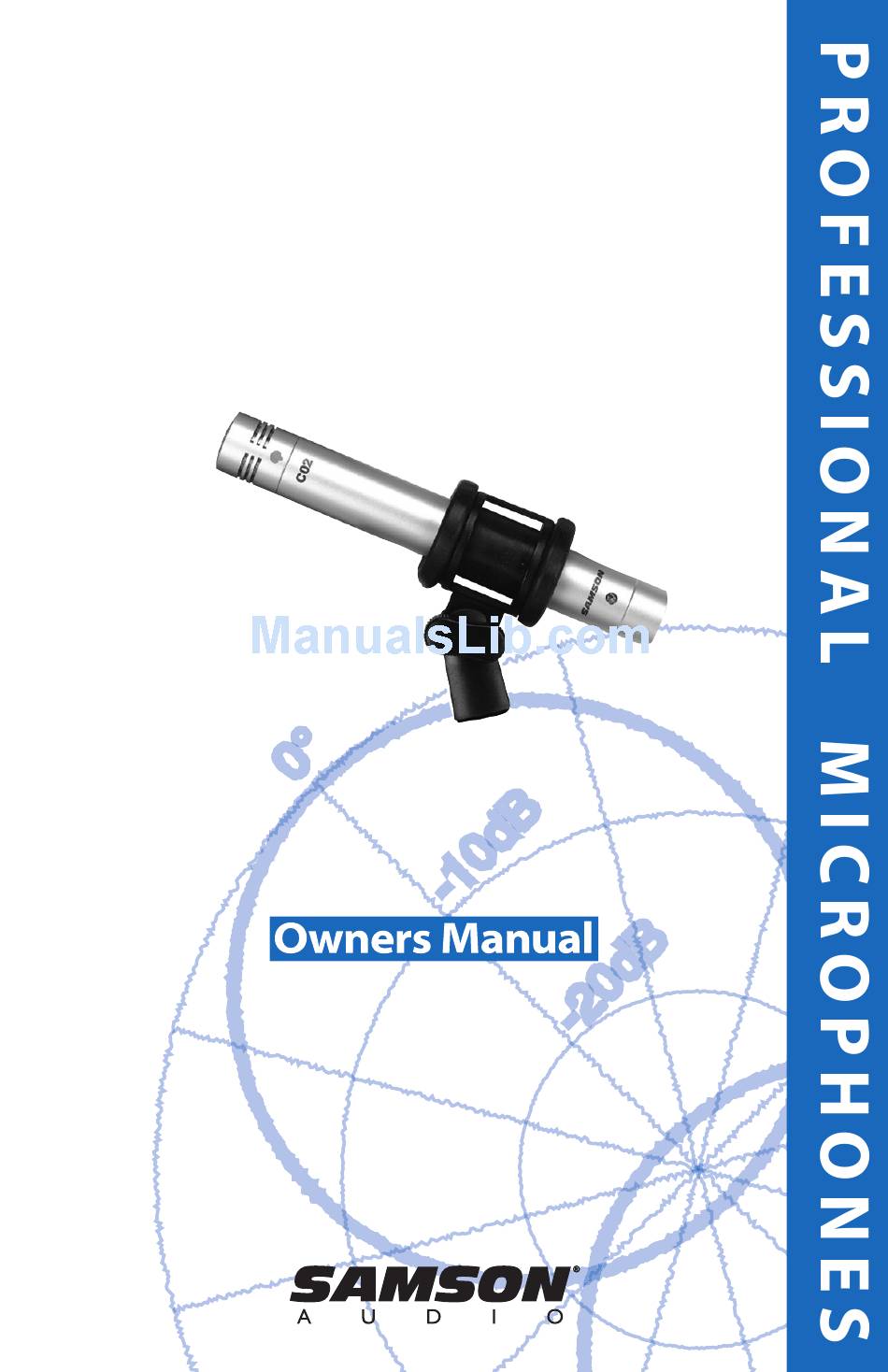

- Page 1 Condenser Microphone...
-
Page 2: Table Of Contents
Table of Contents Introduction and Features Operating the C02 C02 Applications C02 Characteristics Wiring Guide Specifications Copyright 2003, Samson Technologies Corp. Printed February, 2003 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888... -
Page 3: Introduction And Features
The C02 is a pencil style condenser microphone that excels in both live perform- ance and recording applications. Equipped with a linear frequency response for superior reproduction, it is also designed to withstand high sound pressure levels. -
Page 4: Operating The C02
As you move the sound source further away from the microphone, the bass response will gradually roll off. • The C02 has a built-in wind screen which protects against most wind and breathing noise. Under adverse conditions, such as high winds, an optional foam windscreen can be used. -
Page 5: C02 Applications
Experiment by moving the mic further over the cymbal to produce more of a stick sound, but keep in mind it may pick up more of the kit. Remember that the C02 has a car- dioid frequency response, so position the microphone in the direction of the Hi hat, but for increased separation, be sure to point the mic away from other drums or cymbals whenever possible. -
Page 6: C02 Characteristics
The cardioid pattern is utilized by the C02 (as shown in the illustra- tion below). For this reason, the C02 excels in environments where there is a good deal of unwanted ambient sound—it delivers those signals originating... -
Page 7: Wiring Guide
Wiring Guide and Specifications C02 Frequency Chart The C02 can be connected to any mixer, mixer/amplifier, or mic preamp using a standard microphone cable. As shown in the wiring diagrams below, connect the female XLR end directly to the C02’s gold-plated connector and the other end (normally a male XLR end, although some mixers use 1/4"... - Page 8 Samson Technologies Corp. 575 Underhill Blvd. P.O. Box 9031 Syosset, NY 11791-9031 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 www.samsontech.com...
