PART #
TL75
SPECIFICATIONS
·
Weight capacity is 375 lbs. per leg.
·
Table thickness is 25.40mm [1"] MIN.
·
Table Width is 900.00mm [35"] MAX.
·
Table length is 1600.00mm [63"] MAX.
100.00mm SQ.
[3-15/16"]
1
TL75
Determine the position and location of the part.
2022.07.05
680.00mm
[26-25/32"]
6.00mm DIA.
80.00mm SQ.
O.C.
[3-5/32"]
TOP VIEW
1
TABLE OF CONTENTS
715.00mm
[28-5/32"]
8X
[1/4"]
HOLE
60.00mm
[2-3/8"]
2
1/2"
BOTTOM VIEW
Allow 1/2" clearance and center the part at the edge of the
work surface.
. . . . . . . . . . . . 1X TL75
. . . . . . . . . . . 8X Washer
. . . . . . . . . . . . . 2X Pad
. . . . . . . . . . . . . . . 8X
M5 X 20.00mm
Wood Screw
6.00mm
[1/4"]
704.00mm
[27-23/32"]
5.00mm
[3/16"]
SIDE VIEW
Table Top
(Not included)
SIDE VIEW
1/2"
Advertisement
Related Manuals for Mockett TL75
Summary of Contents for Mockett TL75

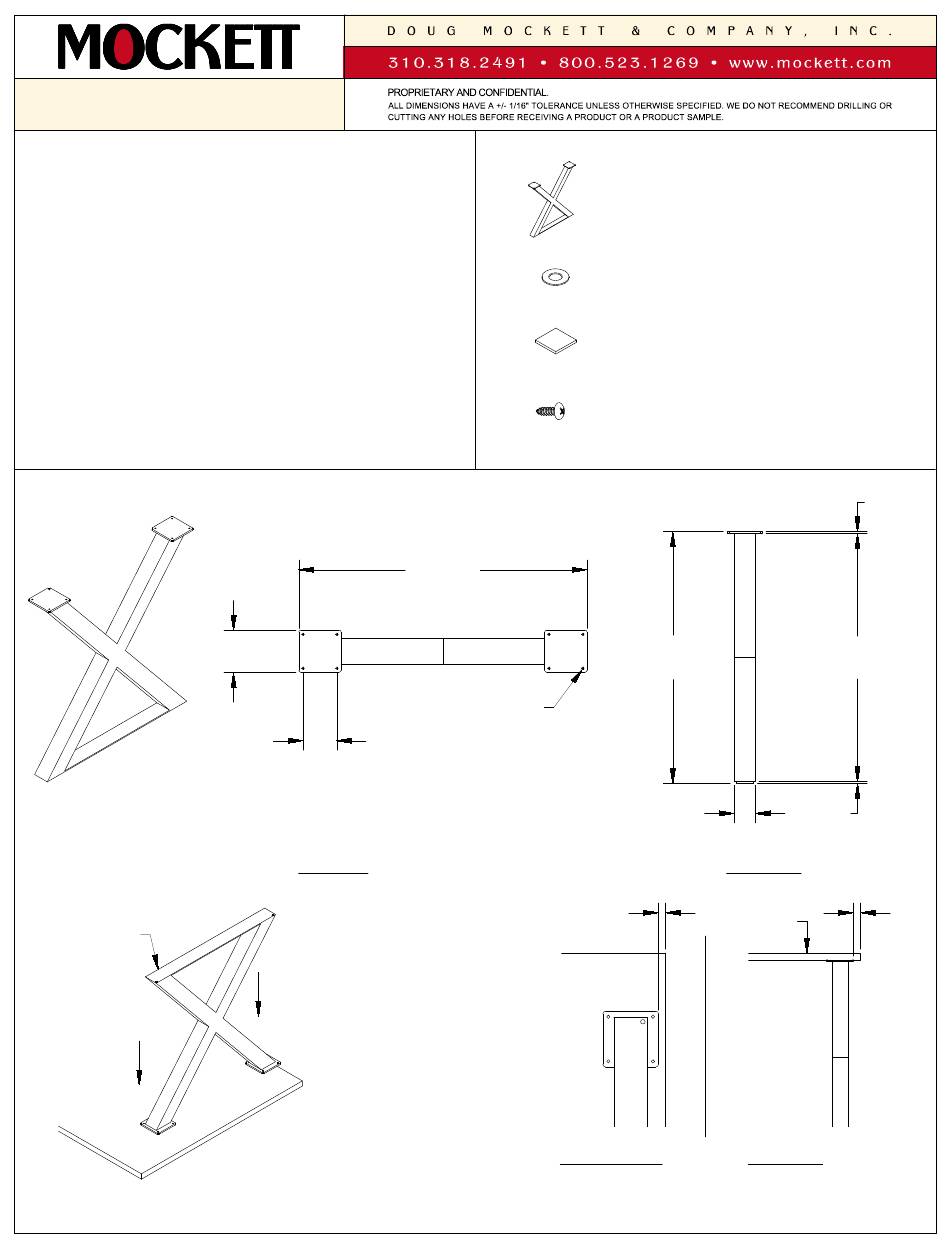

- Page 1 SPECIFICATIONS TABLE OF CONTENTS · Weight capacity is 375 lbs. per leg... . . 1X TL75 · Table thickness is 25.40mm [1"] MIN. · Table Width is 900.00mm [35"] MAX.
